Mining and Mineral Dust Collection

Baghouse filter, cyclone separator, and air handling equipment solutions suited to abrasive dust at crushing, screening, grinding, drying, and transfer points.

Mining & Minerals

Mining & MineralsBaghouse filters + spare parts

Industry solution

Mining and Mineral Dust Collection

Baghouse filter, cyclone separator, and air handling equipment solutions suited to abrasive dust at crushing, screening, grinding, drying, and transfer points. Dust load, operating temperature, maintenance access, and emission targets at each process point determine the product selection.

Baghouse filter / dust collector selection

Filter bag and filter cage compatibility

Pulse-jet valve and compressed air system

Rotary airlock, screw conveyor and fan integration

Request a quote for this sector

Mining & Minerals Dust Collection equipment scope

Filter, fan, filter bag, filter cage and auxiliary equipment selection by process

In mining and mineral processes, dust from crushing, screening, grinding, drying, and transfer is highly abrasive and carries variable moisture. Cyclone separators, baghouse filters, air handling equipment, ducting, and material discharge equipment are selected together based on product type and particle size distribution.

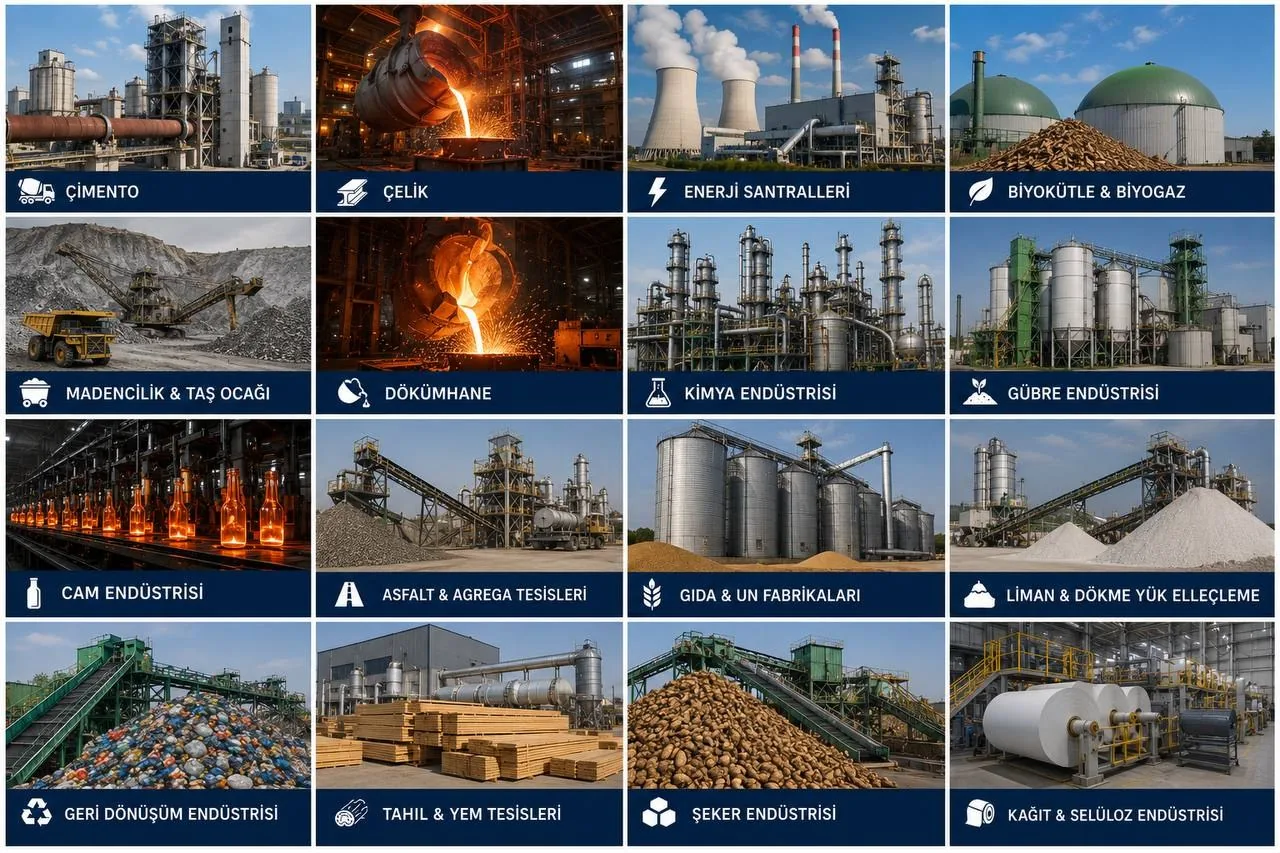

Process filtration, fans, and equipment scope for Mining & Minerals Dust Collection

Process-based system approach

The filter housing, fan, ductwork, filter element, pulse-jet system and discharge/conveying equipment are not independent of one another; they are evaluated as components of the same operating point.

Information clarified before quoting

Material: Mineral type, density, particle size, and abrasiveness
Airflow: Open area and simultaneity of each suction point
Moisture/temperature: Dryer outlet and dew point
Inlet load: Dust concentration and coarse-particle ratio
Conveying capacity: Rotary valve/screw conveyor/elevator tonnage

Equipment scope by process point

Process Dew Point	Filter / dust-fume solution	Fan, ductwork and conveying equipment	Critical selection grade
Primary/secondary crushing	Hood extraction, cyclone + baghouse filter	Wear-resistant dedusting fan and ductwork	Impact, coarse particles, and high inlet loading
Screening and classification	Screen enclosure and local filter	Suction fan equipment, damper, and flexible connection	Vibrating equipment, leak openings, and fine fraction
Grinding/mill	Mill product filter or system filter	Mill fan equipment, separator fan equipment, and rotary valve	Very fine dust, high ΔP, and product recovery
Drying	Hot gas cyclone + suitable baghouse filter	Dryer ID fan and hot gas compensator	Changes in moisture, temperature, and stickiness
Hopper/conveyor transfer	Compact filters for transfer points	Screw conveyor, elevator, enclosed conveyor, and local air handling equipment	Wear, material drop height, and sealing

Equipment groups used in this industry

Crusher dedusting fan

Inlet and balance design suited to abrasive dust.

Mill/separator fan equipment

Provides flow and pressure balance for the product circuit.

Dryer ID fan

Draws hot/humid gas through the cyclone separator and filter.

Transfer point air-handling equipment

Creates local negative pressure at hoppers and conveyors.

Product families we offer for Mining & Minerals Dust Collection

Wear-resistant baghouse

Inlet distribution and protective plates for mineral dust.

Cyclone pre-separator

Reduces coarse particle load and filter bag wear.

Filter bag/cage

Media/coating selected based on wear, moisture, and temperature.

Process air handling equipment

Based on flow-pressure and dust abrasiveness.

Rotary valve, screw conveyor, and bucket elevator

Controlled transfer of the collected dust and product.

Compensator and duct

For vibration, thermal movement, and wear points.

How do we determine capacity and technical specifications?

Exact capacity is not set by a catalog name; it is determined by process flow rate, system pressure, temperature, material/dust behavior and discharge continuity.

technical data	Required site / process information	Impact on selection
Material	Mineral type, density, particle size, and abrasiveness	Determines filter/air handling equipment/conveying equipment.
Flow rate	The open area and simultaneity factor of each extraction point	Determines duct and fan capacity.
Moisture/temperature	Dryer outlet and dew point	Affects adhesion and media selection.
Inlet load	Dust concentration and coarse-particle ratio	Affects the cyclone and filter area decision.
Conveying capacity	Rotary valve/screw conveyor/bucket elevator tonnage	Prevents hopper blockage.
