Air Slide Fabric

Air slide fabric, air slide cloth, and cement pneumatic conveying fabrics.

Air Slide Fabric / Cloth

PRODUCT GROUP

Air Slide Fabric

Air slide fabric, air slide cloth, and cement pneumatic conveying fabrics. Hantech Filter helps you select the right product combination based on your plant's flow rate, temperature, dust type, and operating conditions.

Cement conveying lines

Air slide fabric (air slide cloth)

Homogeneous material flow

Low-pressure air distribution

Fabric selection based on process conditions

Request a quote for this product All products

Global technical approach

Permeability, pressure, and material flowability are selected together for air slide fabric

Air slide fabric selection takes air permeability, fabric thickness, temperature, moisture, and cement/mineral particle structure into account together.

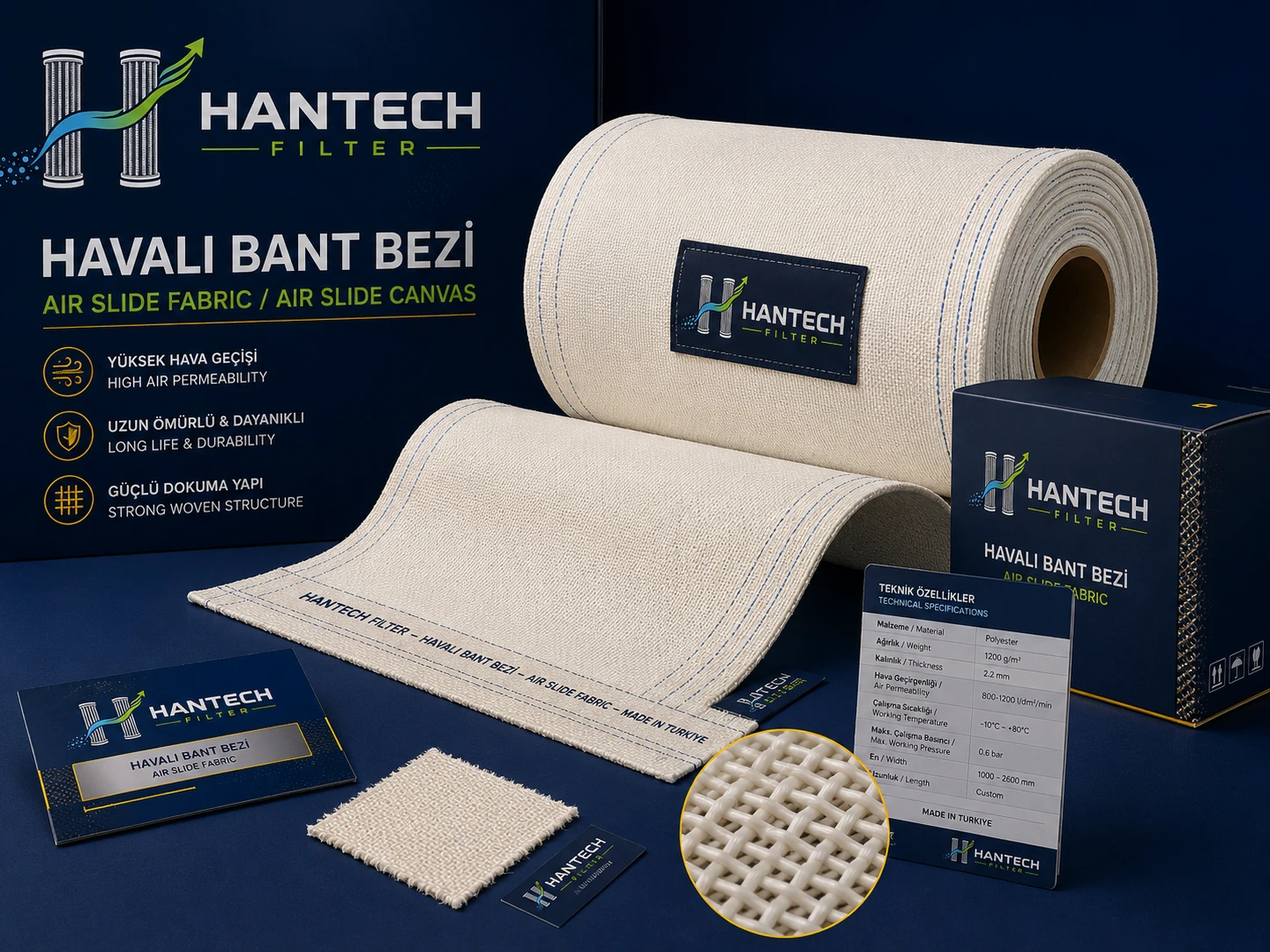

Hantech Filter Air Slide Fabric technical product selection

Air Slide Fabric decision criteria

Product selection is made by evaluating site data, process risk, maintenance access, and operating cost together.

Information to be clarified before quotation

Conveyed material and particle fineness
Line length, incline, and duct cross-section
Existing blower pressure/flow rate
Material temperature and moisture behavior
Photos of old fabric clogging/tearing

good air permeability

Too low permeability chokes the flow; too high permeability creates energy and leakage risk.

Pressure distribution

The lower air chamber, air equipment/blower, and duct leaks determine homogeneous flow.

Fabric Tension

Wrinkled or sagging fabric causes material buildup and duct blockage.

Temperature, humidity and light monitoring

Moist material cakes; temperature affects fabric service life.

Product / application comparison

Type / solution	App	Advantage	Caution point
Polyester air slide	Cement, flour, mineral powder	A common and economical solution	Temperature and moisture limits are checked
Aramid / high-temperature fabric	Hot mineral/cement processes	Higher temperature resistance	Cost and actual temperature are verified
Multi-layer technical fabric	Long lines and the need for homogeneous flow	Balanced air distribution	Installation tension and edge sealing are critical
Custom permeability selection	Lines with difficult material flow	Flow control	Verified with sample and site pressure

Technical check matrix

This list is not a “success percentage”; it shows the design variables we always verify during quotation and site survey. Product selection is not finalized until every item has been correctly measured.

Air permeabilityCritical control

Pressure distributionCritical control

Fabric installation tensionCritical control

Moisture/caking riskCritical control

Temperature resistanceCritical control

Risks we check on site

Incorrect capacity or high pressure loss
Wear, corrosion, leakage, and service access
Short service life due to incorrect material/media selection
Mismatch between air equipment, ducting, filter, and discharge equipment
Planned downtime and commissioning verification

Product images

Correctly categorized site and equipment images for Air Slide Fabric

These images were named directly from the source product folder according to technical product group, optimized as WebP, and placed here without affecting page performance.

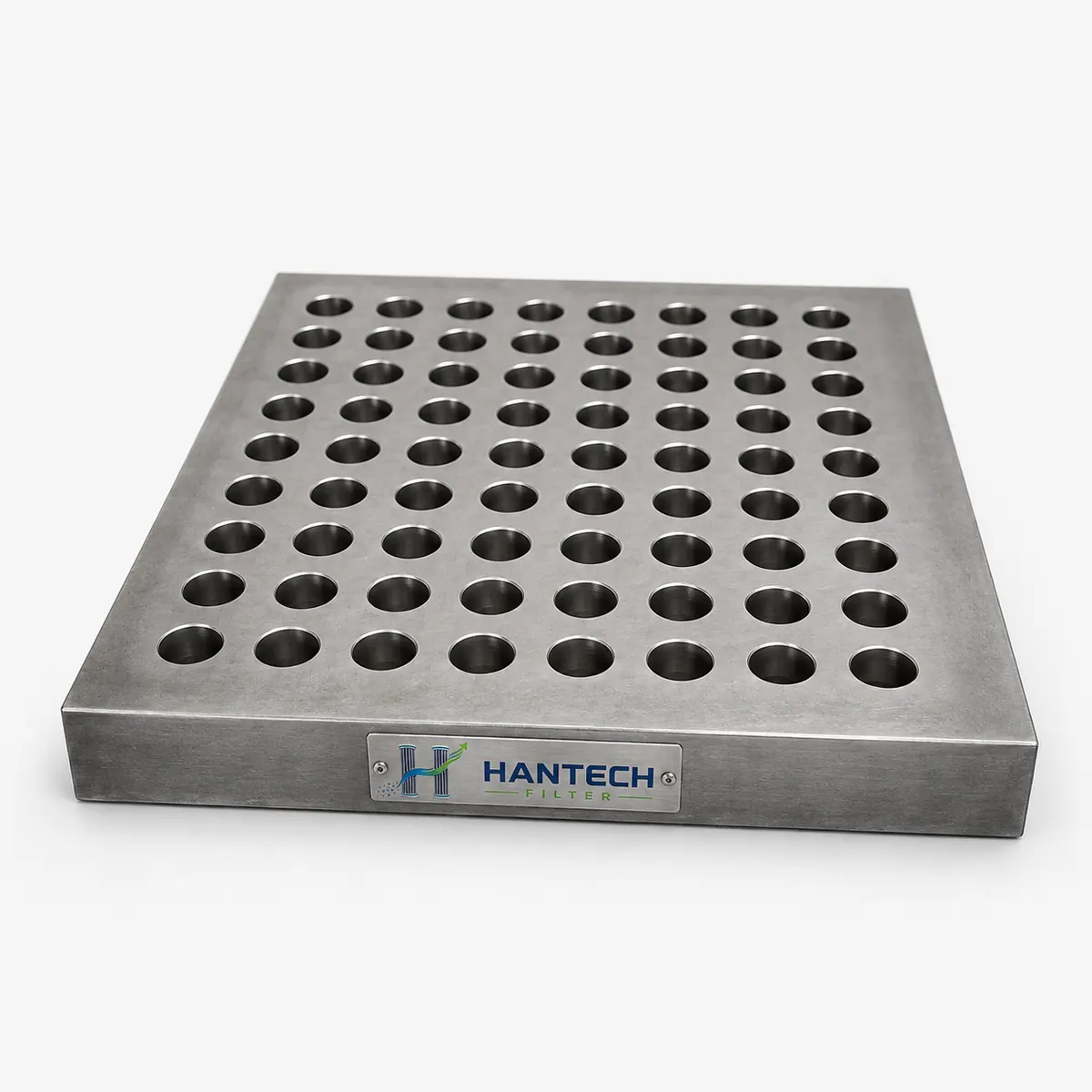

Hantech Filter Fluidizing plate — **Fluidizing plate**Fluidizing plate; provides homogeneous air distribution in silo and air slide lines.

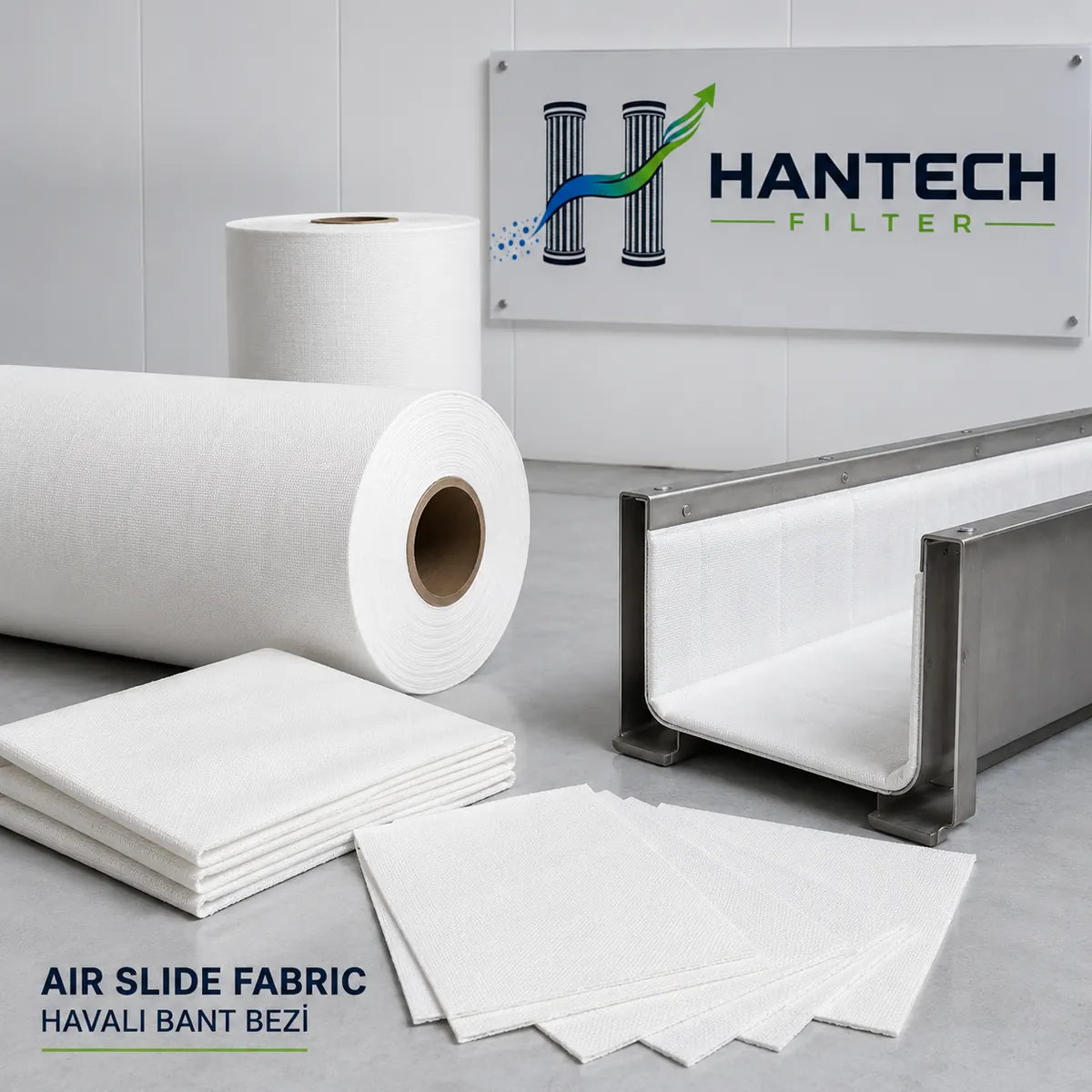

Hantech Filter Air slide fabric — **Air slide fabric**Air slide fabric; provides homogeneous air distribution in cement and fine powder conveying lines.

2 optimized images were linked to this product group; images are served in WebP format for faster loading.

Technical selection

What we evaluate together during the quotation process

Flow rate, pressure drop, temperature, moisture, dust abrasiveness, emission target, maintenance access, and compatibility with existing equipment are all considered together.

Technical sizing

Correct sizing based on flow rate, pressure drop, filtration velocity, and A/C ratio.

Material & Media

Filter bag media, cage, and valve selection suited to process temperature, moisture, and dust characteristics.

Spare parts & service

Long-term spare parts supply, installation guidance, and field application support.

Product groups

Other filtration products

Hantech Filter Filter Bags — Polyester, PP, acrylic, PPS, aramid, P84, PTFE, glass fiber, antistatic and ePTFE membrane filter bag options.

Product

Filter Bags / PTFE Membrane

Filter Bags

Polyester, PP, acrylic, PPS, aramid, P84, PTFE, fiberglass, antistatic, and ePTFE membrane filter bag options.

Explore

Hantech Filter Filter Cages — Filter cage, bag cage, cataphoresis-coated cage, silicone-coated cage, SS304 venturi cage and membrane-compatible cages.

Product

Filter Cages / SS304 Venturi Cage

Filter Cages

Filter cage, bag cage, cataphoresis-coated cage, silicone-coated cage, SS304 venturi cage, and membrane-compatible cages.

Explore

Product

Liquid Filtration / Filter Bags

Liquid Filtration

Filter bags for liquid processes, cartridge/bag filter housing selection, and chemically compatible filtration solutions.

Explore

Hantech Filter Elevators — Bucket elevator solutions for controlled vertical conveying of dust, granules and bulk materials.

Product

Bucket Elevators / Vertical Conveying

Bucket Elevators

Bucket elevator solutions for controlled vertical conveying of dust, granules, and bulk materials.

Explore

Get a technical quote for Air Slide Fabric.

Share your process values; let us recommend the most suitable product, media, and spare parts combination.

Technical Quote Form Write on WhatsApp
