Mobile Dust Collection Filters

Hantech-designed mobile dust collection filters: fan-equipped and fanless models, upper filter bag, detachable metal collection bin and folding ramp arrangement.

Mobile Dust Filters / Fan & Fanless Models

Mobile Dust Collection Filters — HTF-MAT — Hantech design · HTF-MAT

Manufacturing · Engineering · Field Services

Dust collection and bin handling in one mobile unit.

The HTF-MAT range combines a wheeled base, upper filter bag and detachable metal collection bin. The fan-equipped 2600-FL and externally supplied 3400-FS configurations were developed for different process and layout requirements.

Fan-equipped and fanless configurations
420 × 420 × 460 mm metal collection bin
Folding ramp and lift-to-seal arrangement

Request a technical quote for your project →

HTF-MAT

Technical data of the example model

Equipment tailored to your project.

The 2,600 and 3,400 Nm³/h figures are requested project duties, not measured unit capacities. Fan duty, media, filtration area, safe fill level and bin payload are finalised for the application. Normal volumetric flow is converted to actual flow using operating temperature and pressure.

Design configuration · HTF-MAT
2600-FL requested design flow	2,600 Nm³/h · with fan
3400-FS requested design flow	3,400 Nm³/h · without fan
Collection bin external dimensions	420 × 420 × 460 mm
Geometric internal volume to the rim	Approximately 79 litres
Bin lifting stroke	20 mm
Ramp length and clear width	2 × 550 mm · 500 mm
Upper filter element	Replaceable fabric bag

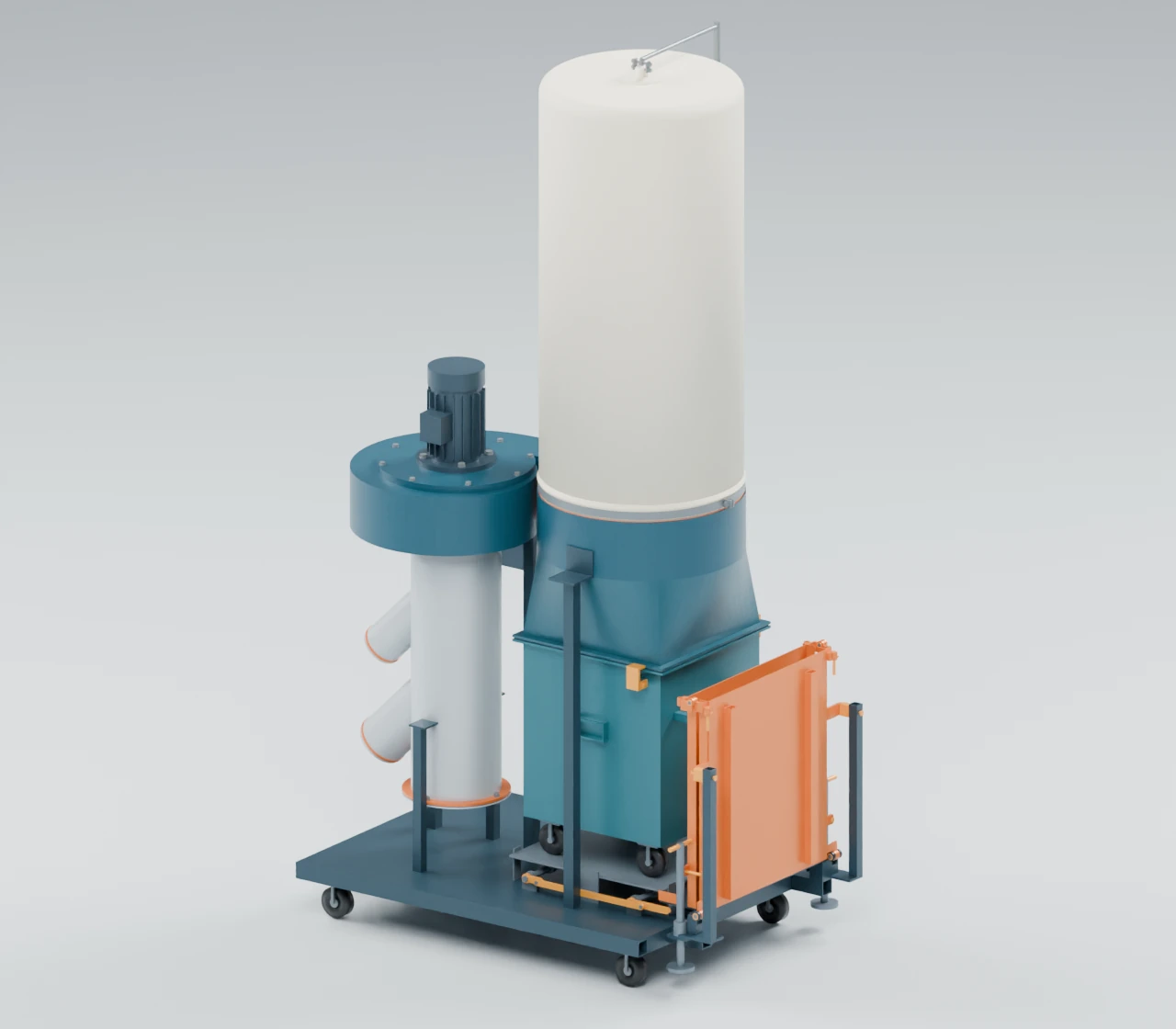

Fan-equipped model

The 2600-FL arrangement carries the fan and motor on the base. Suction connections, filter housing and drive layout are assessed together.

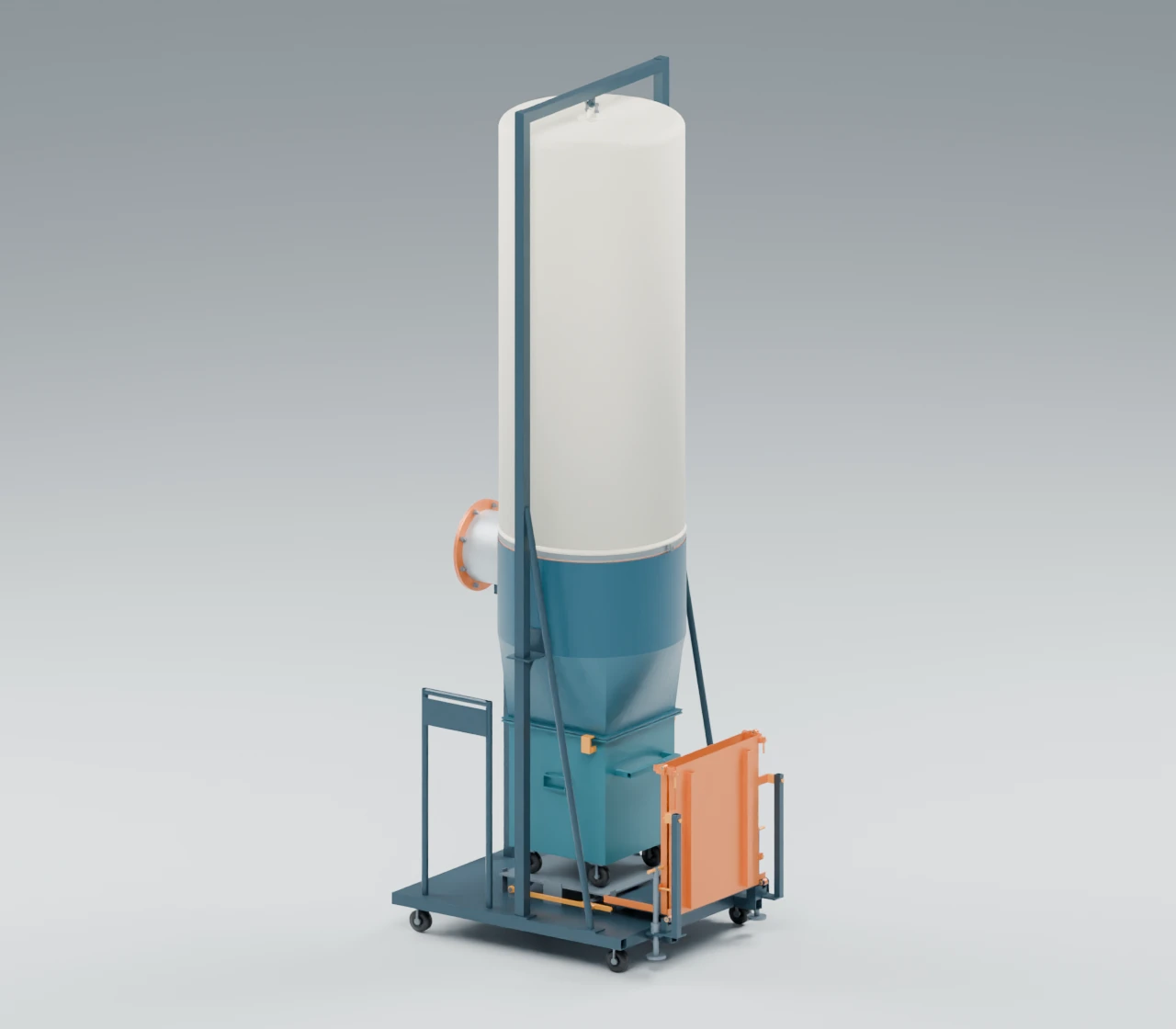

Fanless model

The 3400-FS is engineered for an external air source. A two-column suspension and support structure carries the long upper bag.

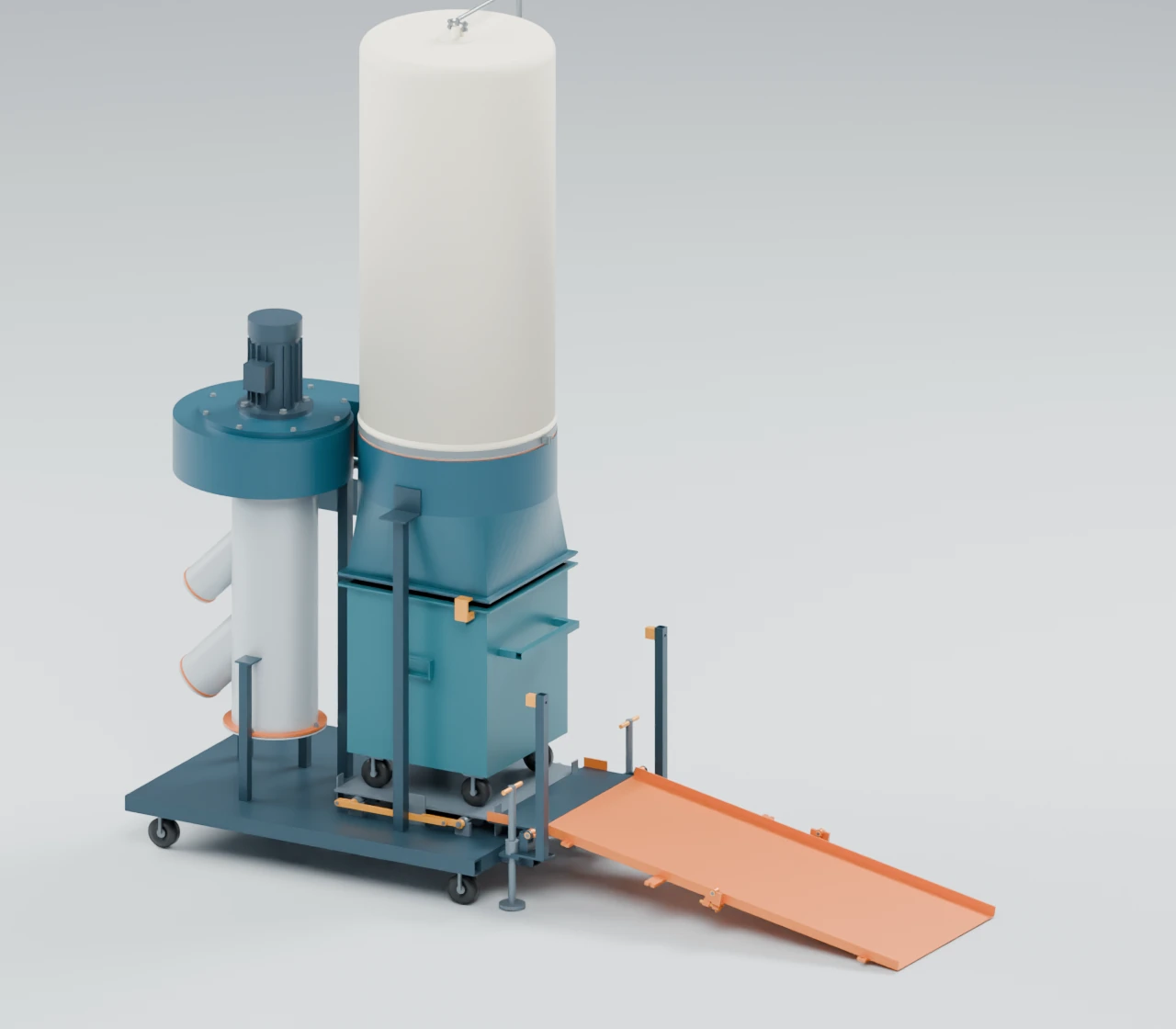

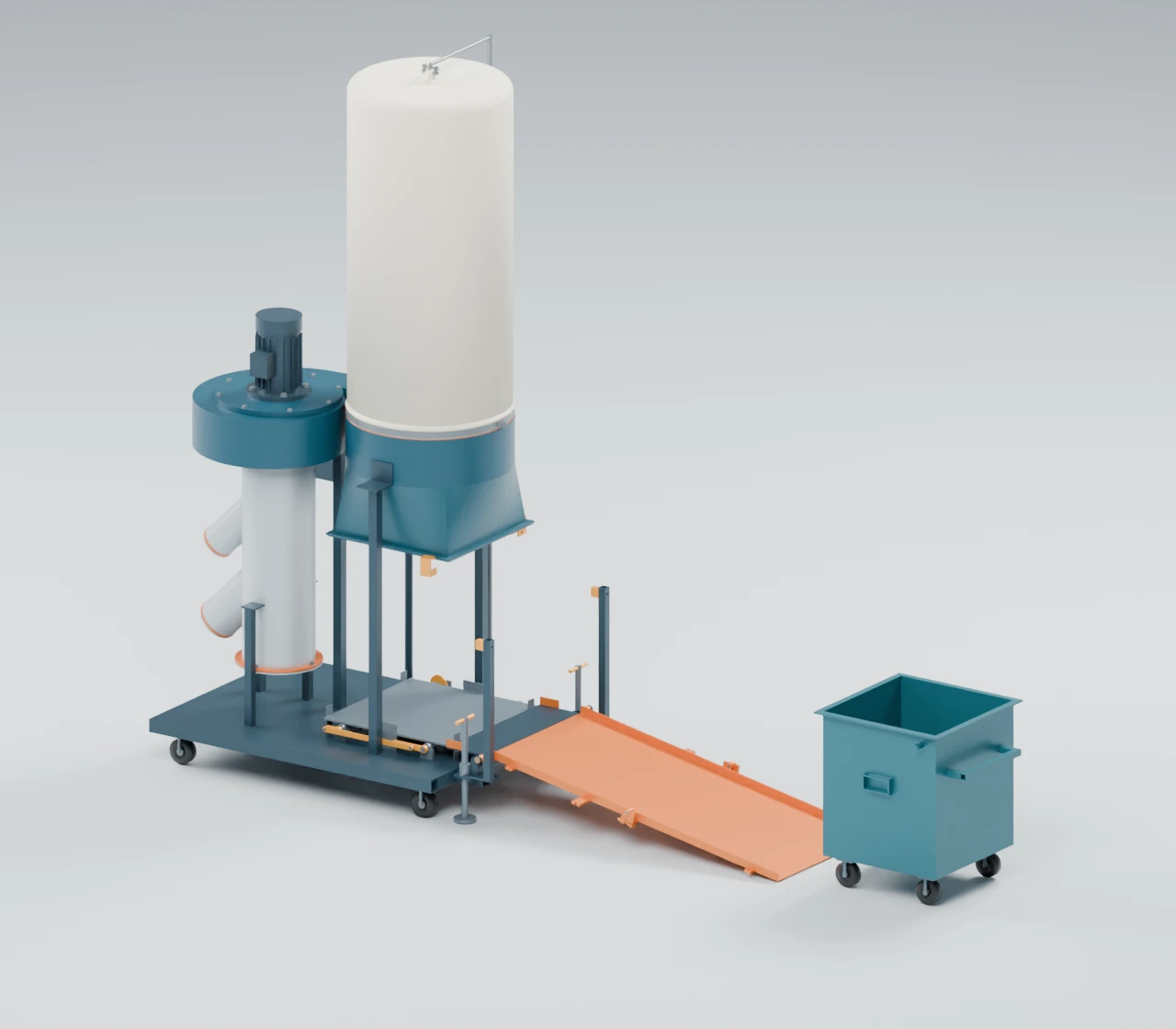

Bin removal

The upper filter bag remains in place. After stopping and isolating airflow and releasing pressure, the bin is lowered and removed using the ramp and locking arrangement.
