Baghouse Filter Systems

Baghouse filter, pulse-jet bag filter, and industrial dust collector solutions. Hantech Filter helps you select the right product combination based on your facility's flow rate, temperature, dust type, and operating conditions.

Pulse-jet baghouse filters

Local dust-extraction filters

Cement and mineral process filters

Compact filter systems with integrated fan

Project-specific housing, hopper, and platform design

Request a quote for this product All products

Global technical approach

The right choice in a baghouse filter system comes from reading the housing, bags, pulse system, and air equipment together

The common approach among global manufacturers is to treat the filter not merely as a housing, but as a complete system encompassing airflow, media, cleaning, dust discharge, and service access.

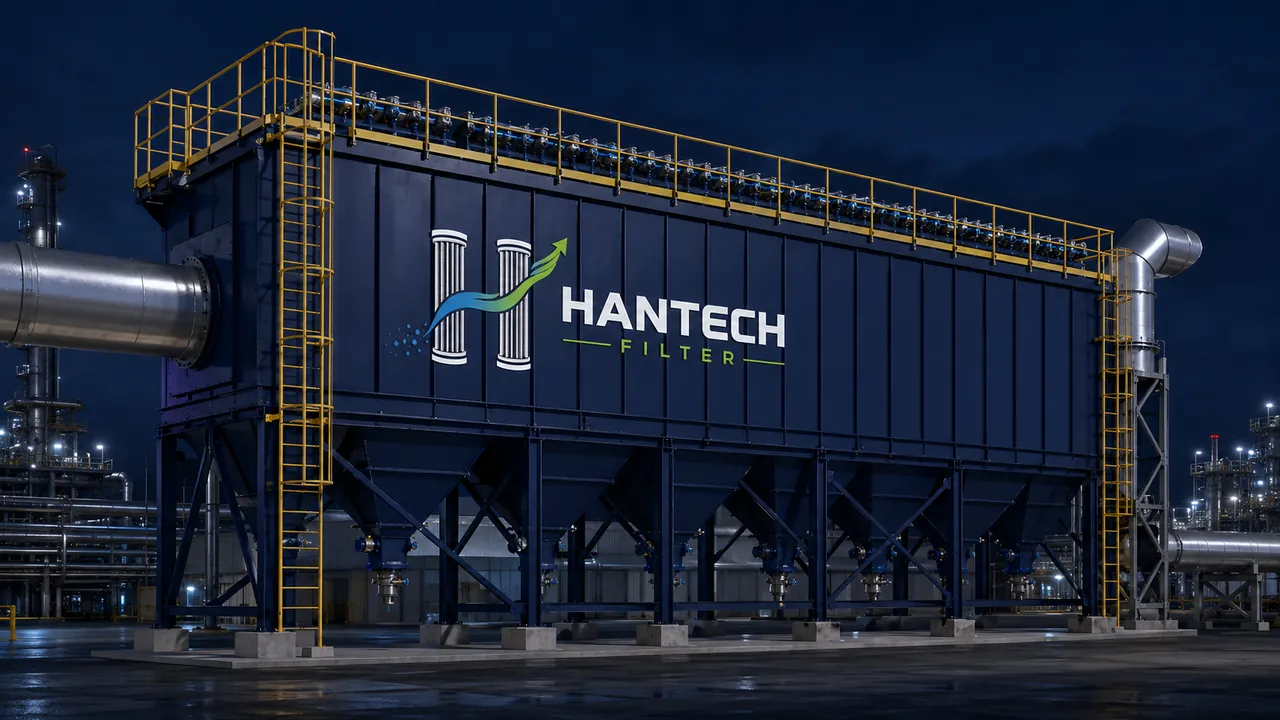

Hantech Filter Baghouse Filter Systems technical product selection

Baghouse Filter Systems decision criteria

Product selection is made by evaluating site data, process risk, maintenance access, and operating cost together.

Information to be clarified before quotation

Target flow rate and process extraction points
Dust load, particle size, and abrasiveness
Continuous/peak temperature and humidity
Current differential pressure and emission value
Hopper, rotary valve, screw conveyor, and fan equipment data

Filter area

Flow rate and air-to-cloth ratio determine the number of bags, bag length, and housing size.

Pulse cleaning

Valve diameter, tank volume, blow pipe, venturi, and differential pressure control are selected together.

Dust extraction

Hopper angle, rotary airlock, screw conveyor, and bridging risk determine system continuity.

Service access

Top cover, platform, insulation, leak control, and bag change-out time all factor into the design decision.

Product / application comparison

Type / solution	App	Advantage	Caution point
Pulse jet baghouse filter	Medium-to-high dust load, continuous process	Compact housing, automatic cleaning, low emissions	Compressed air quality and pulse settings are critical
Silo-top / local filter	Silo, hopper, transfer point	Compact on-site dedusting	Explosion vent, maintenance access, and air handling equipment integration are checked
Cassette/cartridge filter	Fine, dry dust, limited space	High media area, fast maintenance	Media blinding risk is assessed for damp/sticky dust
Pre-separator system	Abrasive/coarse particles	Reduces filter bag load and spark risk	A cyclone, drop-out box, or spark arrestor may be required

Technical check matrix

This list is not a “success percentage”; it shows the design variables we always verify during quotation and site survey. Product selection is not finalized until every item has been correctly measured.

Air-to-cloth ratioCritical check

Differential pressureCritical check

Pulse-cage-bag compatibilityCritical control

Dust discharge reliabilityCritical control

Maintenance accessCritical check

Risks we check on site

Incorrect capacity or high pressure loss
Wear, corrosion, leakage, and service access
Short service life due to incorrect material/media selection
Mismatch between air equipment, ducting, filter, and discharge equipment
Planned downtime and commissioning verification

Product images

Correctly classified field and equipment images for Baghouse Filter Systems

These images were named directly from the source product folder according to technical product group, optimized as WebP, and placed here without affecting page performance.

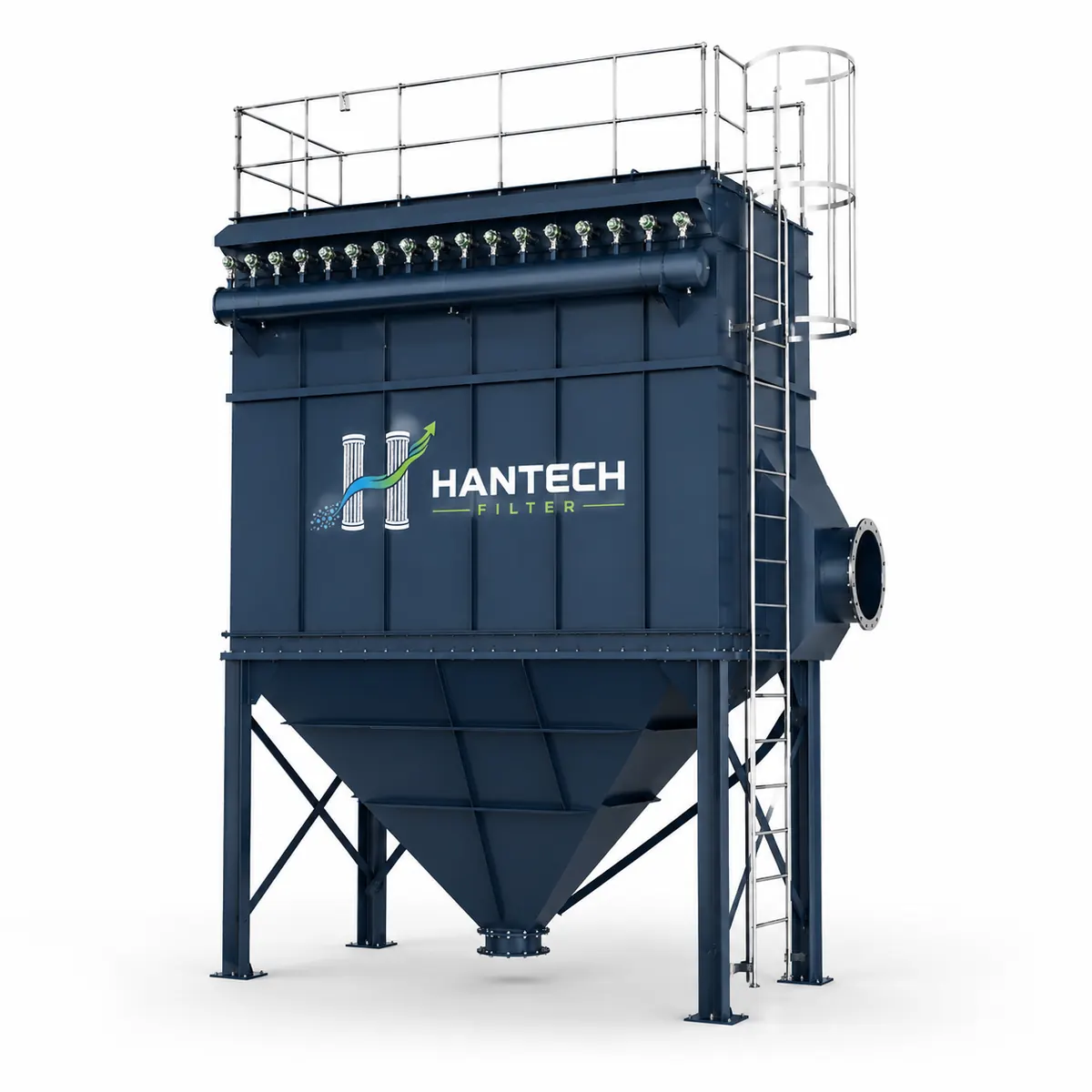

Hantech Filter baghouse filter system with hopper — **Baghouse filter system with hopper**A baghouse filter system with hopper is used for pulse-jet cleaning and safe discharge under high dust loads.

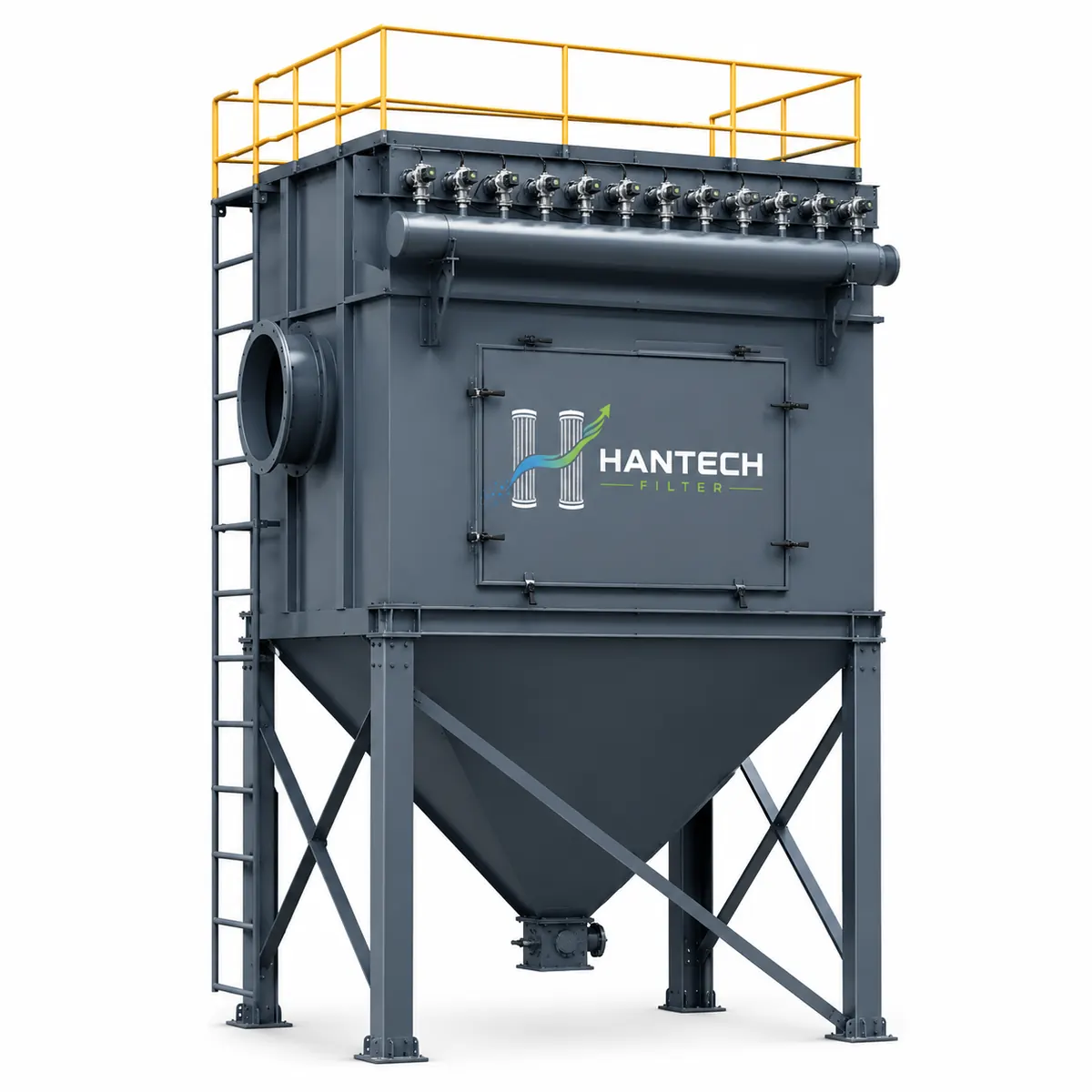

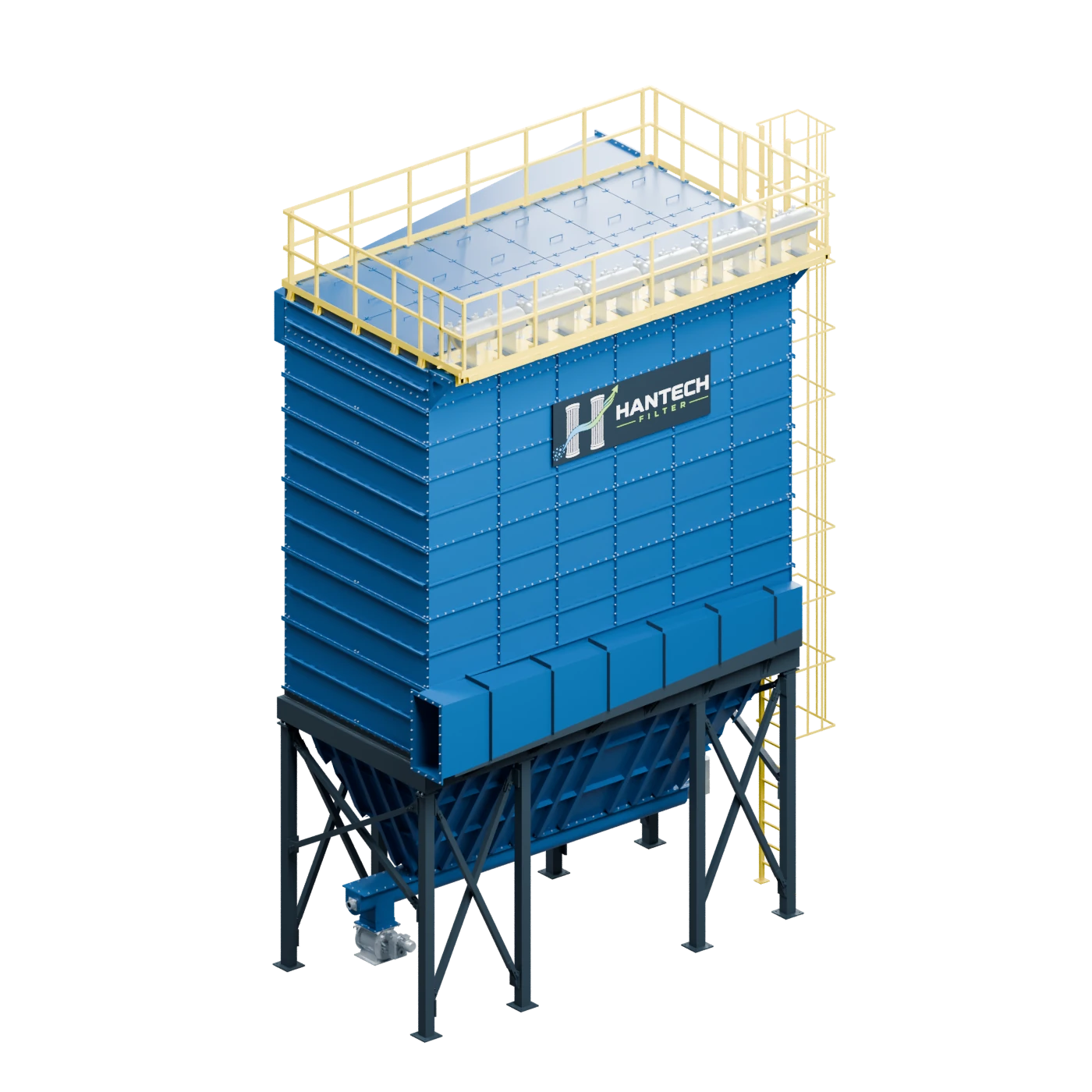

Hantech Filter Platform-mounted pulse-jet baghouse filter — **Pulse-jet baghouse filter with platform**A pulse-jet baghouse filter with platform is designed for maintenance access and continuous cleaning.

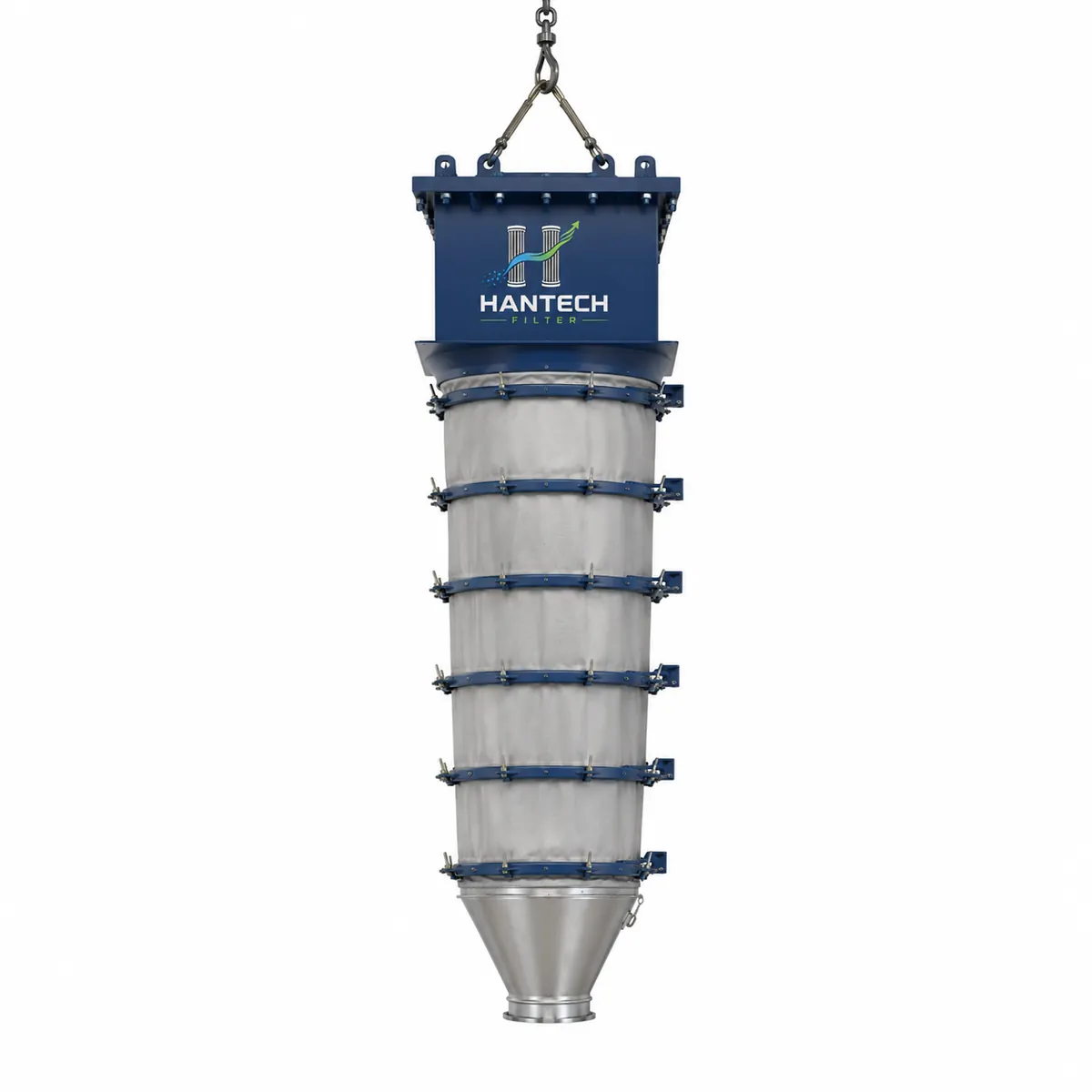

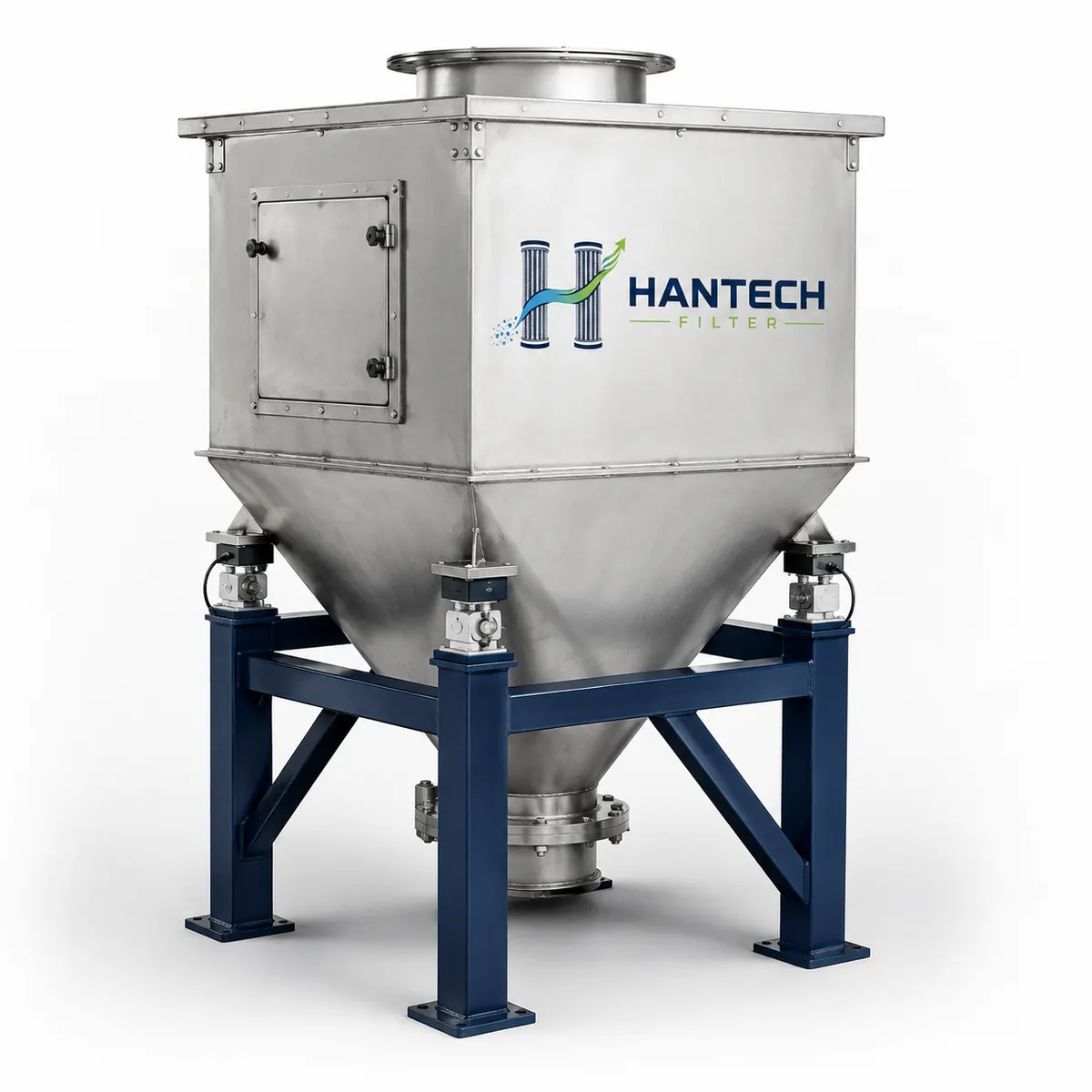

Hantech Filter Compact silo-top filter — **Compact silo-top filter**Compact silo-top filter; provides local dust retention for hopper/silo venting.

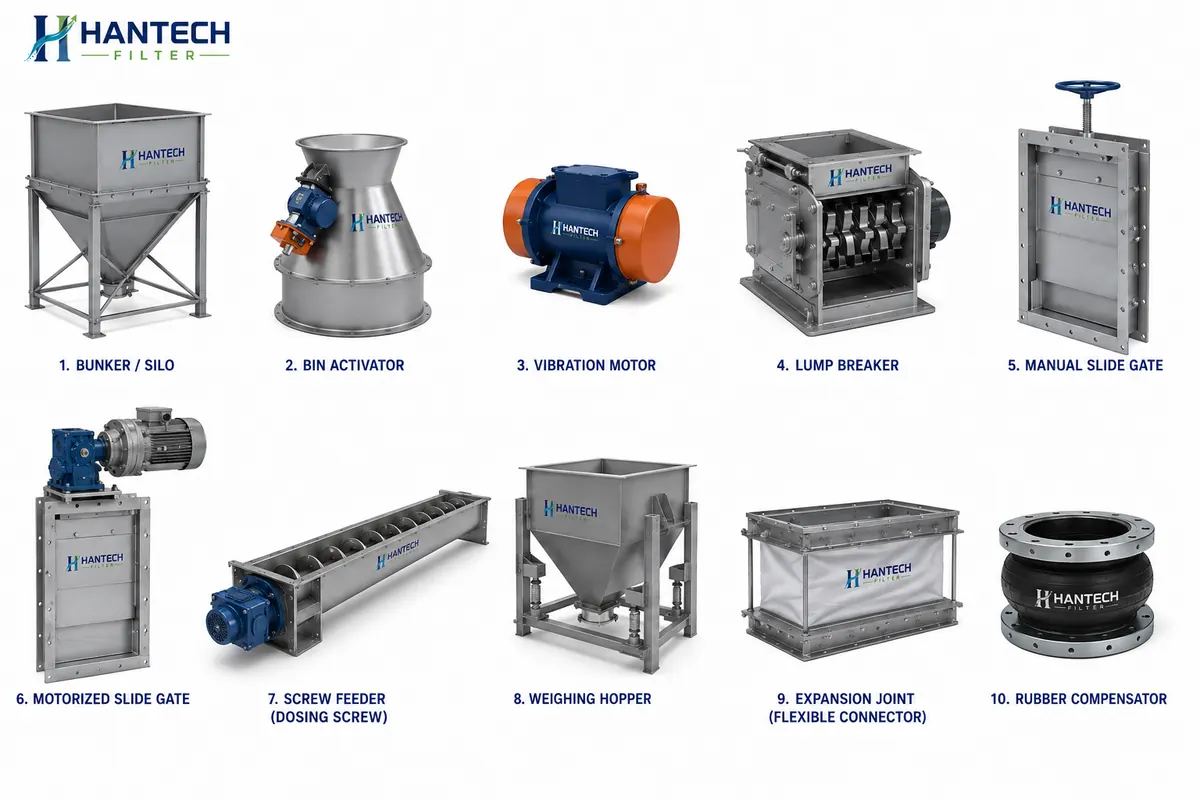

Hantech Filter Filtration equipment family — **Filtration equipment range**Filtration equipment range; the filter, fan, valve, cage, and conveyor need to be selected together.

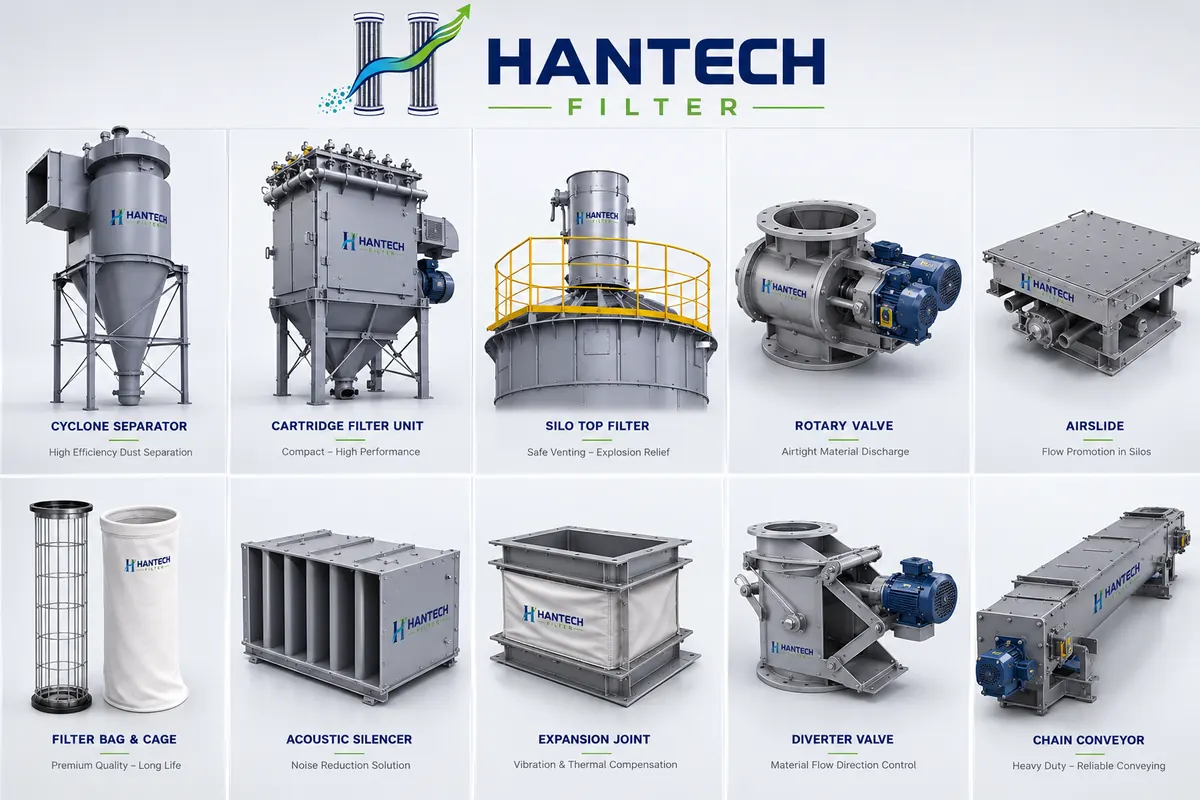

Hantech Filter Industrial filtration product family — **Industrial filtration product range**Industrial filtration product range; covers housings, spare parts, and field equipment.

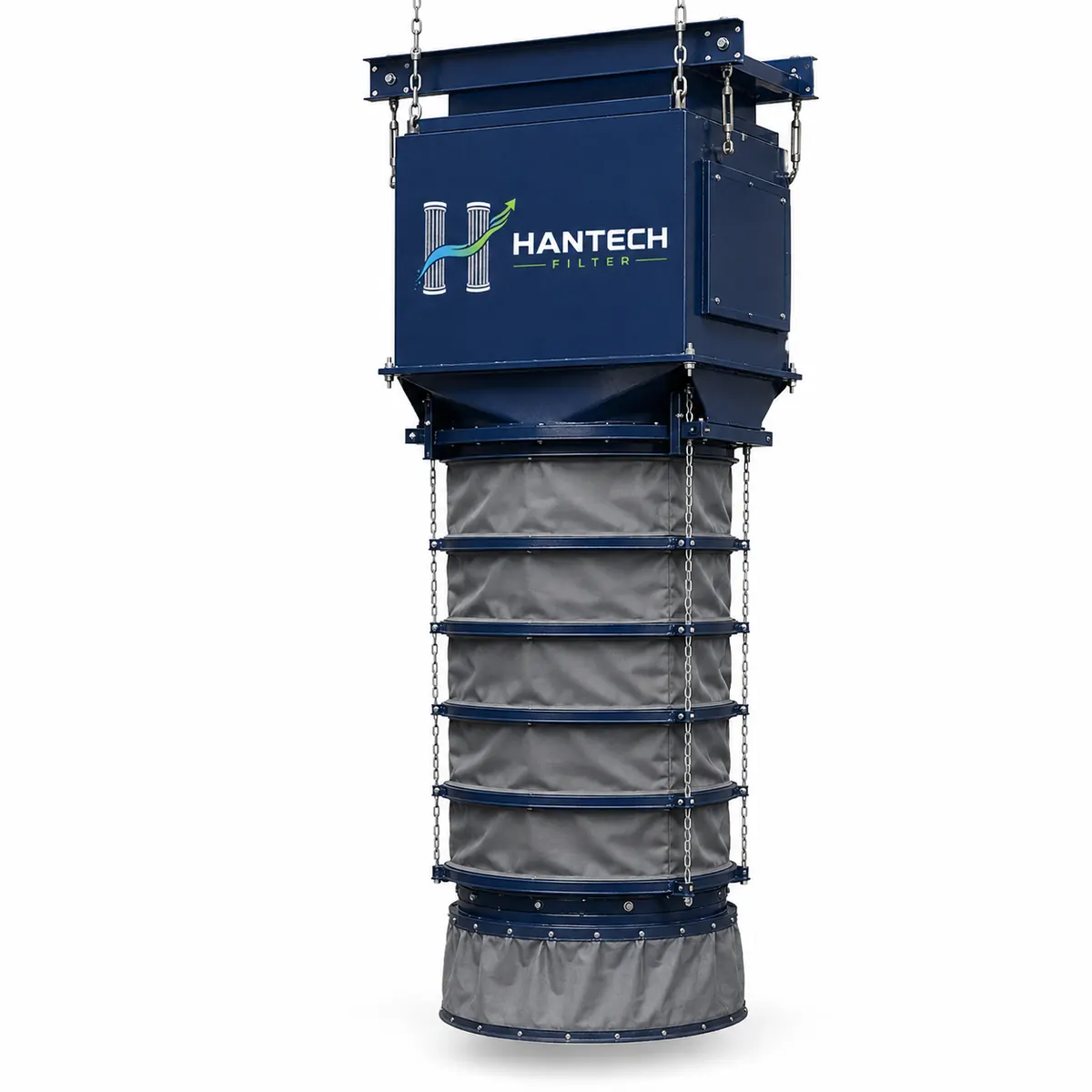

Hantech Filter Compact filter unit with flexible skirt — **Compact filter unit with flexible skirt**A compact filter unit with flexible skirt is suitable for local dust collection and hopper connection.

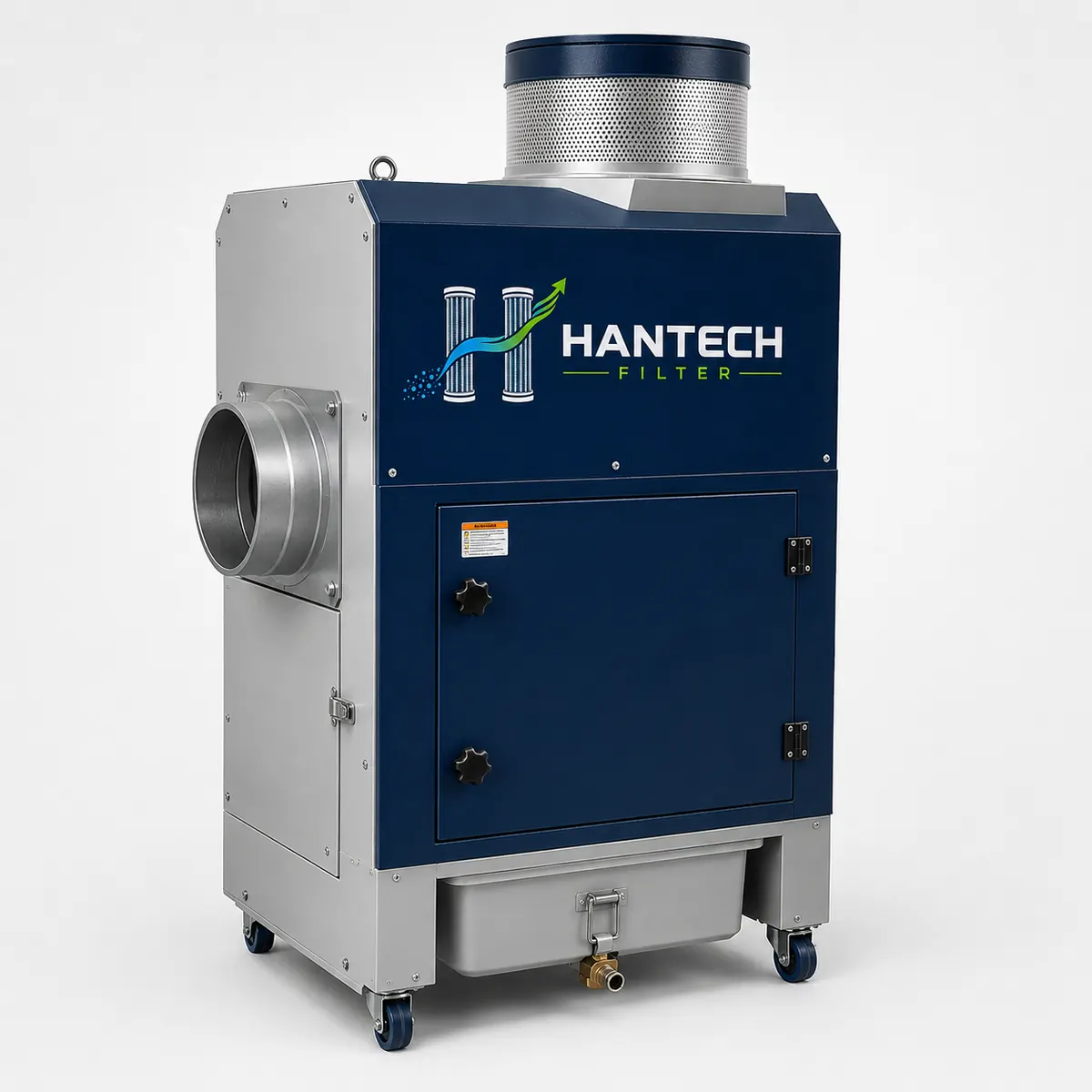

Hantech Filter Compact mobile dust collection unit — **Compact mobile dust collection unit**A compact mobile dust collection unit provides flexible use in small, localized processes.

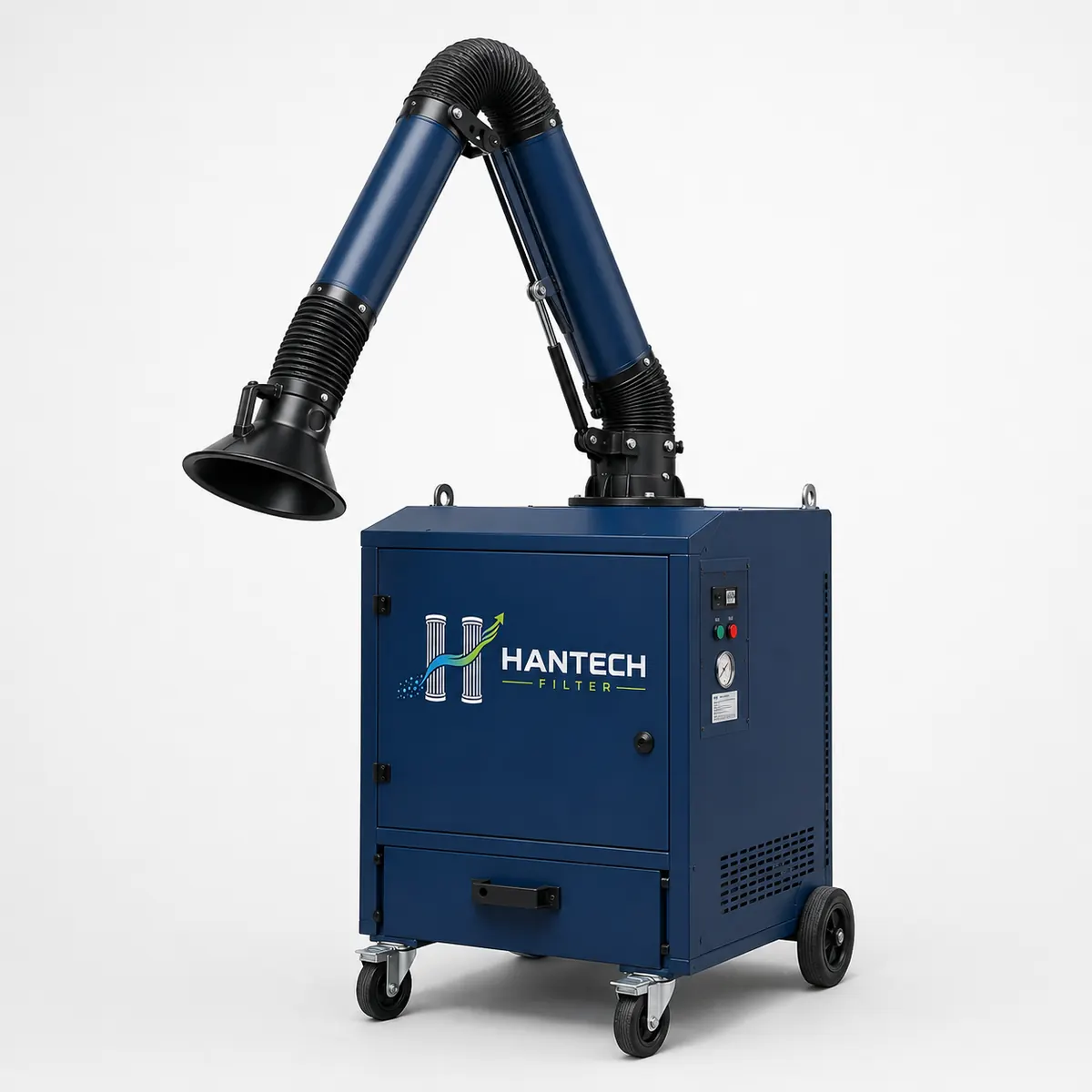

Hantech Filter Mobile filter with extraction arm — **Mobile filter with extraction arm**Mobile filter with extraction arm; used at welding/fume and local dust-capture points.

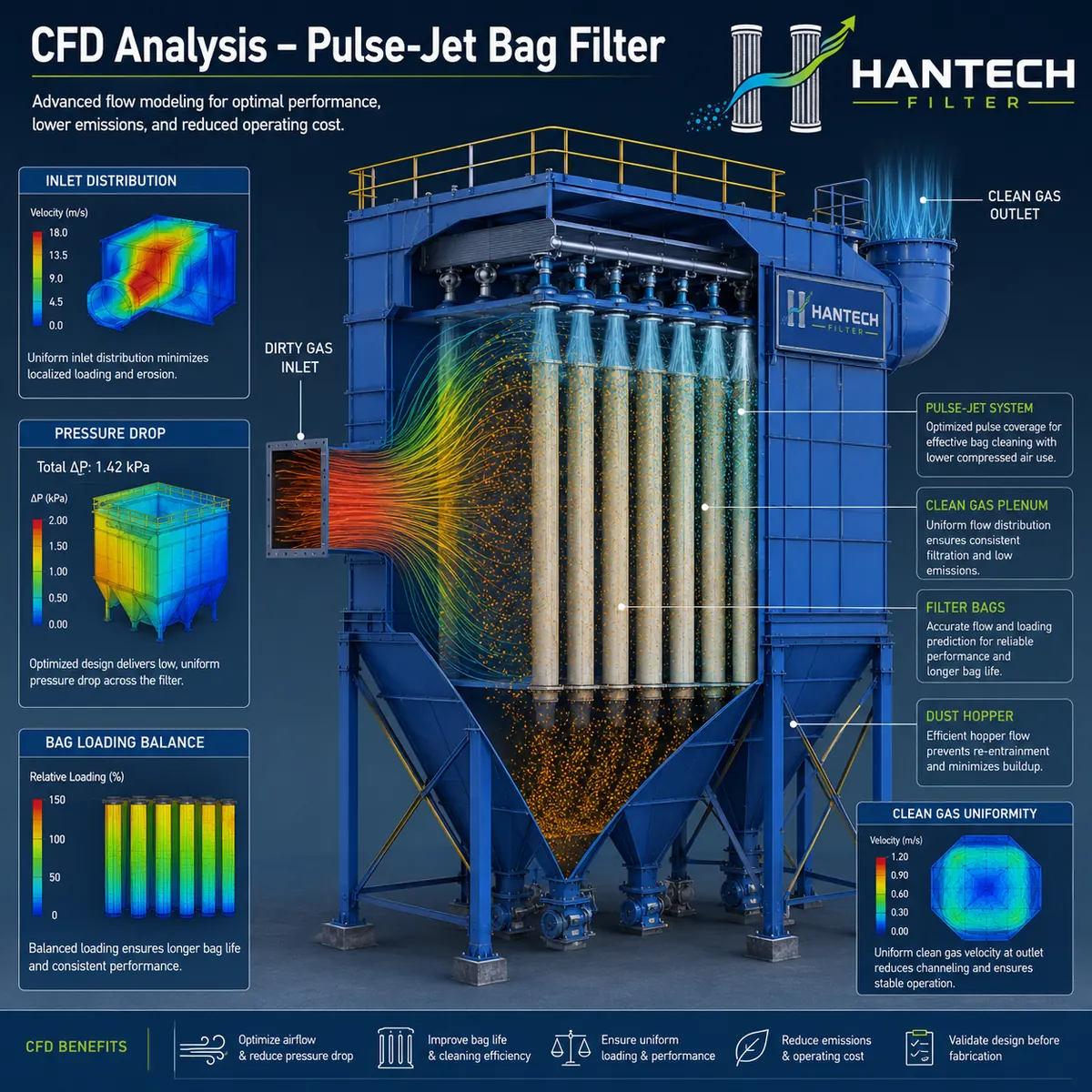

Hantech Filter Pulse-jet bag filter CFD analysis — **Pulse-jet bag filter CFD analysis**Pulse-jet bag filter CFD analysis; shows the internal flow pattern and bag load distribution.

10 optimized images have been linked to this product group; images are served in WebP format for fast loading.

Technical selection

What we evaluate together during the quotation process

Flow rate, pressure drop, temperature, moisture, dust abrasiveness, emission target, maintenance access, and compatibility with existing equipment are all considered together.

Technical sizing

Correct sizing based on flow rate, pressure drop, filtration velocity, and A/C ratio.

Material & Media

Filter bag media, cage, and valve selection suited to process temperature, moisture, and dust characteristics.

Spare parts & service

Long-term spare parts supply, installation guidance, and field application support.

Product groups

Other filtration products

Hantech Filter Filter Bags — Polyester, PP, acrylic, PPS, aramid, P84, PTFE, glass fiber, antistatic and ePTFE membrane filter bag options.

Product

Filter Bags / PTFE Membrane

Filter Bags

Polyester, PP, acrylic, PPS, aramid, P84, PTFE, fiberglass, antistatic, and ePTFE membrane filter bag options.

Explore

Hantech Filter Filter Cages — Filter cage, bag cage, cataphoresis-coated cage, silicone-coated cage, SS304 venturi cage and membrane-compatible cages.

Product

Filter Cages / SS304 Venturi Cage

Filter Cages

Filter cage, bag cage, cataphoresis-coated cage, silicone-coated cage, SS304 venturi cage, and membrane-compatible cages.

Explore

Hantech Filter Air Slide Fabric — Air slide fabric, air slide cloth and cement pneumatic conveying fabrics.

Product

Air Slide Fabric / Cloth

Air Slide Fabric

Air slide fabric, air slide cloth, and cement pneumatic conveying fabrics.

Explore

Product

Liquid Filtration / Filter Bags

Liquid Filtration

Filter bags for liquid processes, cartridge/bag filter housing selection, and chemically compatible filtration solutions.

Explore

Get a technical quote for Baghouse Filter Systems.

Share your process values; let us recommend the most suitable product, media, and spare parts combination.
