PRODUCT GROUP
Pulse Jet Valves
Pulse valves, diaphragm valves, and filter cleaning system equipment. Hantech Filter helps you select the right product combination based on your plant's airflow, temperature, dust type, and operating conditions.
1", 1½", 2" pulse-jet valves
Diaphragm valves

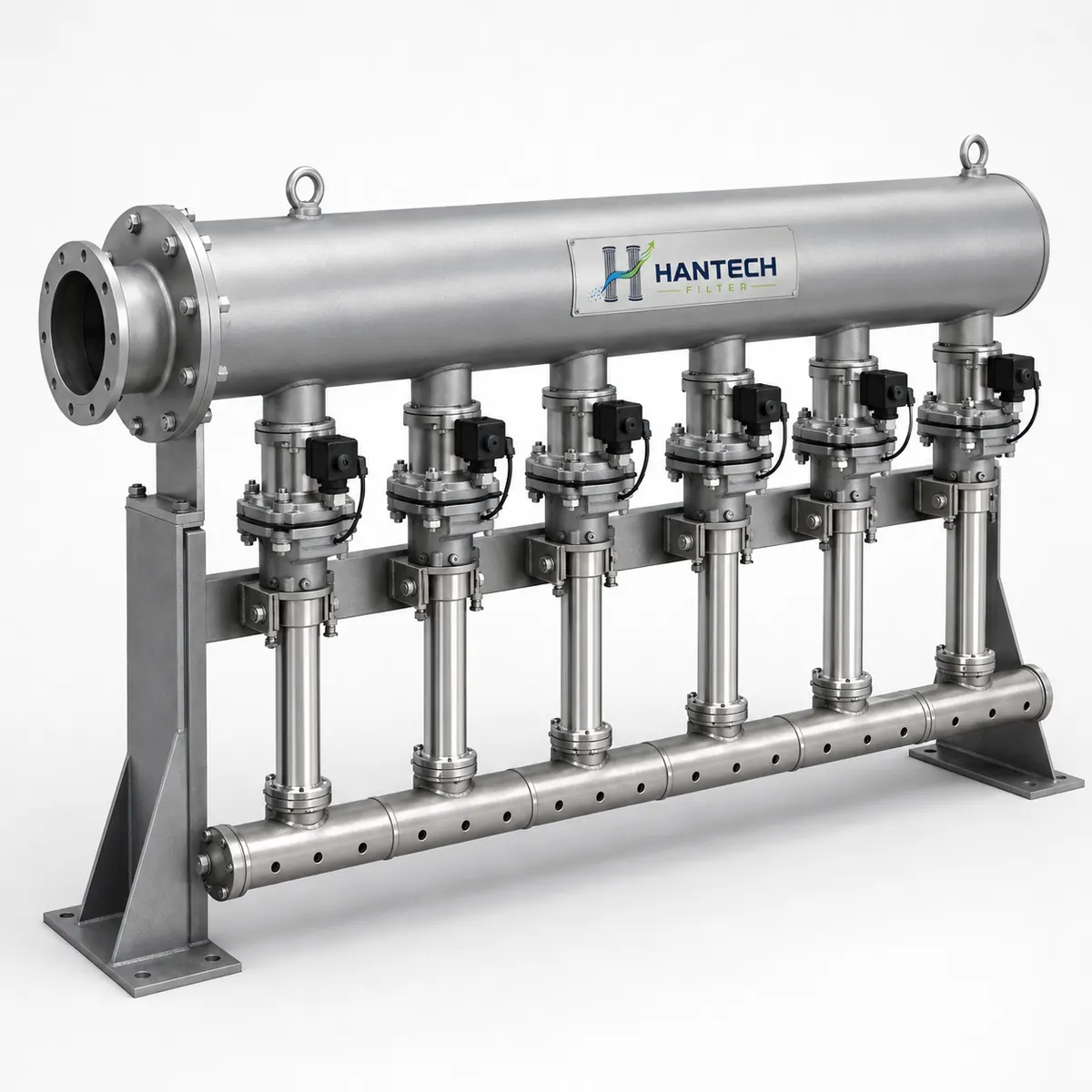

Air tank and blow-pipe integration
Pulse cleaning based on differential pressure
Spare diaphragms and maintenance parts
Global technical approach
Pulse-jet valve selection determines bag cleaning, pressure loss, and air consumption

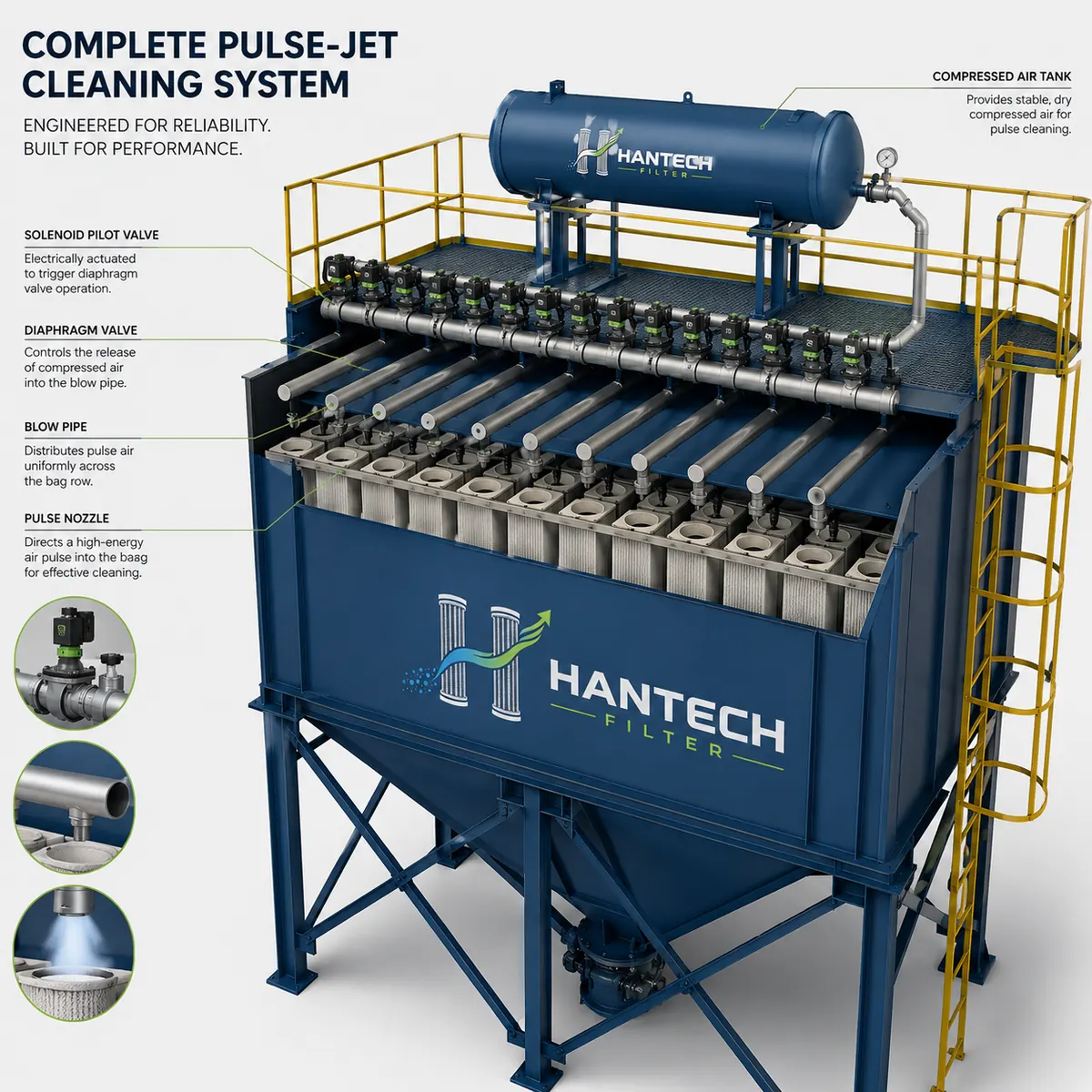

The diaphragm valve is evaluated together with the tank, pilot, solenoid, blow pipe, and control algorithm.
Pulse Jet Valves decision criteria
Product selection is made by evaluating site data, process risk, maintenance access, and operating cost together.
Information to be clarified before quotation
- Filter bag count, row layout, and blow pipe count
- Existing valve diameter, brand/model, and tank volume
- Operating pressure and compressed air quality
- Pulse duration/interval and ΔP trend
- Diaphragm failure frequency and leak photos
Valve diameter
1", 1½", 2", and 2½" options are selected based on bag row spacing and air volume.
Tank Volume
Pressure drop during the pulse should be minimal; the tank and line diameter must be able to feed the valve.
Diaphragm quality
Temperature, humidity, and oily compressed air affect diaphragm life.
Type de Contrôle
Time-based versus differential-pressure-based cleaning changes energy consumption.
Product / application comparison
| Type / solution | App | Advantage | Caution point |
|---|---|---|---|
| Timer-controlled cleaning | Simple local filters | Easy application | Unnecessary pulsing can shorten bag life |
| ΔP-controlled cleaning | Variable dust load, energy optimization | Pulsing only when needed, low air consumption | Sensor and setpoint accuracy is required |
| Remote pilot-operated valve | Tank placement and access constraints | Maintenance access flexibility | Pilot hose length and leaks are checked |
| High-temperature diaphragm | Hot environment/proximity to control panel | Longer service life | Compressed air quality is again critical |

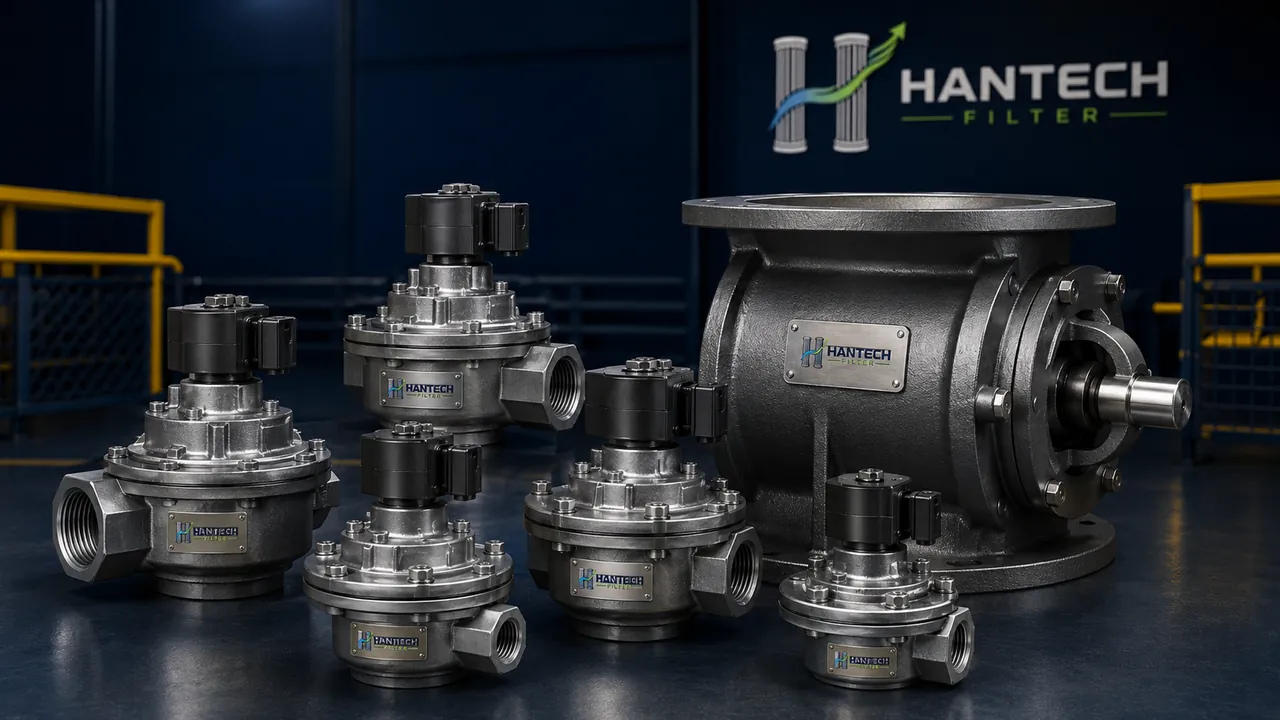

Product images
Correctly categorized site and equipment images for Pulse Jet Valves
These images were named directly from the source product folder according to technical product group, optimized as WebP, and placed here without affecting page performance.
2 optimized images were linked to this product group; images are served in WebP format for faster loading.
Technical selection
What we evaluate together during the quotation process
Flow rate, pressure drop, temperature, moisture, dust abrasiveness, emission target, maintenance access, and compatibility with existing equipment are all considered together.
Technical sizing
Correct sizing based on flow rate, pressure drop, filtration velocity, and A/C ratio.
Material & Media
Filter bag media, cage, and valve selection suited to process temperature, moisture, and dust characteristics.
Spare parts & service
Long-term spare parts supply, installation guidance, and field application support.
