PTFE filter bags are a strong premium candidate for harsh chemical environments, high temperature, and very low emission targets. However, they should not be selected automatically without verifying cost, mechanical support, seam/cage compatibility, and process data.

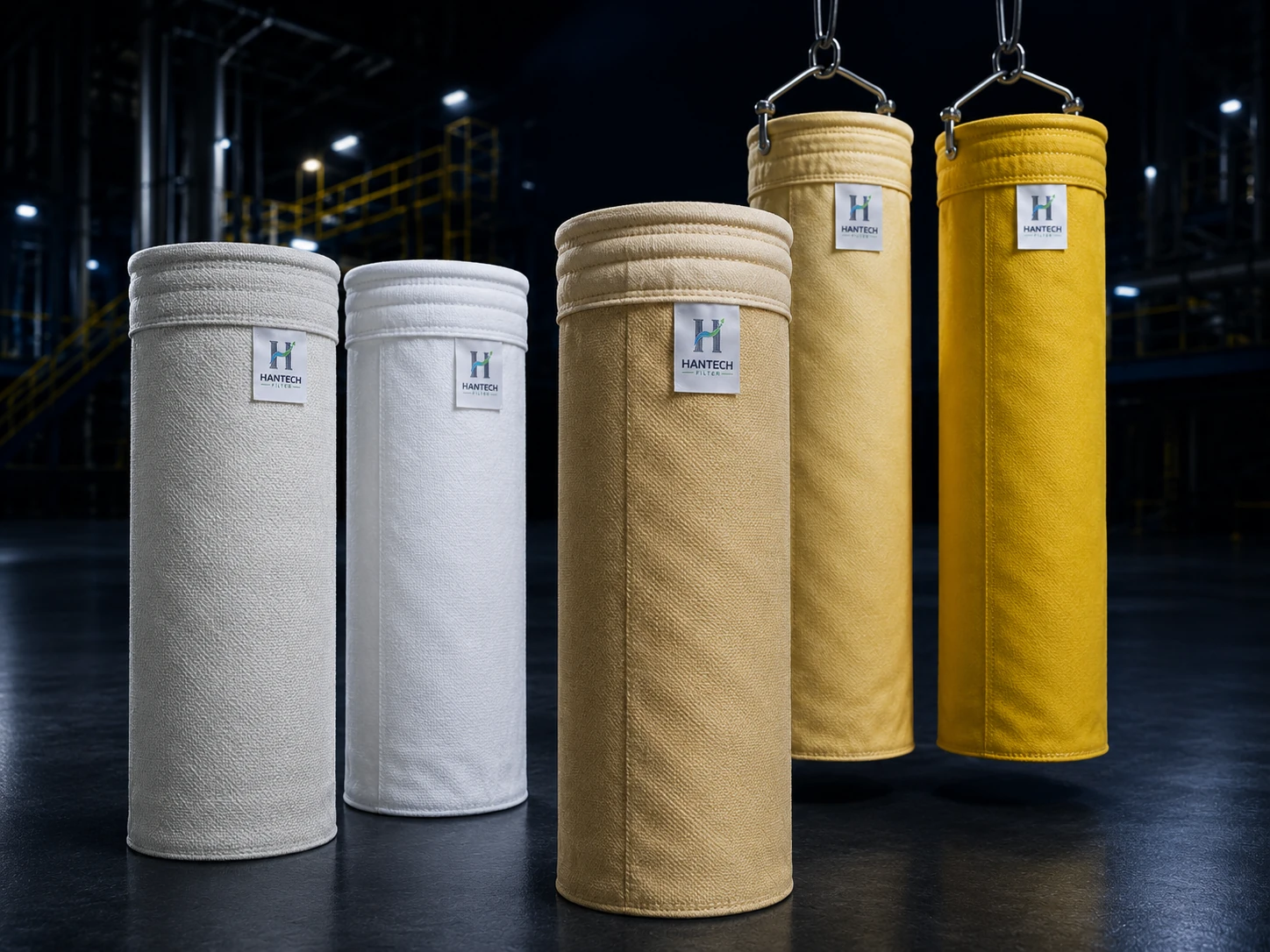

What Is a PTFE Filter Bag?
PTFE filter bags are a premium filter bag family, available as polytetrafluoroethylene-based media, coating or membrane options, considered for processes requiring chemical resistance and high temperature. They are compared alongside P84, PPS, Aramid or fiberglass PTFE in chemical, waste incineration, boiler, metallurgy, mineral, high-moisture/acid-risk hot gas and low-emission-target applications.
This page is not a claim by Hantech regarding manufacturing, origin, stock, or capacity. Here, Hantech Filter clarifies PTFE suitability based on process data, dimensional/construction checks, verified sourcing, and the scope of field application support; actual limits must be verified against the manufacturer's datasheet, media construction, and field records.
In Which Processes Is It Considered?
| It's a must. | PTFE comment | Hantech decision |
|---|---|---|
| Aggressive acid/alkali gas risk | PTFE can be a very strong candidate for chemical resistance. | SOx/SO3, NOx/NO2, HCl, HF, O₂, moisture, and dew point are all needed together. |
| 240–250°C hot process | The PTFE family can be considered at high temperature; peaks and construction are verified against the datasheet. | Selection cannot be finalized without continuous/peak temperature, duration, and stitching/cage details. |
| Fine dust + low mg/Nm³ target | An ePTFE membrane is a strong candidate for surface filtration. | Justified by dust micron size, dP trend, A/C ratio, and pulse pressure. |
| Low-to-medium temperature, dry process | PTFE can be an unnecessary premium cost. | If PES/PPS/Aramid is safely sufficient, PTFE is not forced. |
| Weak filter cage or aggressive cleaning | Premium media does not fix a mechanical root cause. | Cage OD, wire count, venturi, weld burrs, and pulse pressure are checked. |
PTFE Felt, Coating, and ePTFE Membrane Distinction
PTFE is not a single technical construction. PTFE felt refers to the base media family, PTFE coatings/impregnations to surface and chemical behavior, and ePTFE membrane to surface filtration and fine-particle capture behavior. If this distinction is not made clear in the quote, both performance expectations and cost comparisons will be flawed.
Site selection example
- Process
- Chemical drying line
- Recording
- Normal 230°C, short peak 255°C, HCl/HF risk, fine sticky dust, dP rises quickly on new bags
- Control
- Gas analysis, dew point, A/C ratio, pulse pressure, membrane requirement, stitching thread, and cage surface are examined together.
- Comment
- PTFE is a candidate; but no quote is issued based on media name alone until membrane/coating type, mechanical support, and cleaning regime are clarified.
Comparison of PTFE, P84, PPS, Aramid, and Fiberglass PTFE
| Media | Strong side | Critical risk | Hantech comment |
|---|---|---|---|
| PES | Economical, medium temperature | Moisture + high temperature | If conditions allow, PTFE may be an unnecessary premium. |
| PPS | Temperature/chemistry balance | O₂ / oxidation | Moving up to PTFE may not be necessary if chemistry and O₂ levels are within limits. |
| Aramid | Hot process conditions and mechanical strength | Acidic humidity | Can be an economical alternative when the chemistry is mild. |
| P84 | High temperature + filtration performance | Chemical limit + cost | A strong candidate for fine dust; PTFE is compared for heavy chemical duty. |
| Fiberglass PTFE | High temperature and dimensional stability | Fragility | Compared if the cage/installation standard is suitable. |
| PTFE | Chemical resistance and temperature | Cost + mechanical support | Selected with justification; not automatically the best answer. |
I Would Not Choose PTFE Under These Conditions
Hantech's approach is to recommend PTFE because the process genuinely requires it, not because it is the most expensive option. If the chemical load is severe, the PTFE cost can be justified; if conditions are mild, a more economical media can be the better commercial decision.
Information Required for a Quote
Minimum data set for a quote: normal/peak temperature, peak duration and frequency, SOx/SO3, NOx/NO2, HCl, HF, O₂, humidity, dew point, dust type/particle size/abrasiveness/stickiness, flow rate, filter bag diameter/length/quantity, top/bottom construction, snap-band, cage OD/wire count/venturi, pulse pressure, dP trend, emission target, current filter bag service life, and failure photos.
You can send this information via the PTFE filter bag technical quote form. For the general product family, review the filter bags by process condition, including PTFE page.
Related Technical Guides
To clarify the decision, you can read the PTFE filter bag guide, when to use a PTFE membrane filter bag, P84 filter bag comparison, fiberglass PTFE filter bag and how to select a filter bag articles together.
Frequently Asked Questions
At what temperature is a PTFE filter bag used?
For preliminary selection, a 240-250°C range can be considered; the actual limit must be verified against media construction, the manufacturer's datasheet, peak duration, gas chemistry, humidity, and mechanical support.
Is PTFE always better than P84 or PPS?
No. PTFE is strong in chemical resistance; P84 offers strong filtration performance, and PPS can be more economical under certain temperature/chemical balances. The choice is made based on process data.
Is a PTFE membrane required for every fine dust?
No. The need for a membrane must be justified by the emission target, dust particle size, cake release behavior, dP trend, and A/C ratio.
