Product
Bucket Elevators / Vertical Conveying
Bucket Elevators
Bucket elevator solutions for controlled vertical conveying of dust, granules, and bulk materials.
Explore
System Approach
A consistent conveying line from feed to discharge
Material is not simply moved from point A to point B. Feed continuity, capacity, elevation difference, dust leakage, abrasion, sealing, and maintenance access must all be resolved together on the same line.
Product
Product
Belt / Chain Conveyors
Conveyors
Belt, chain and enclosed conveyor systems for bulk material transfer, sized from 10 to 3,000 tons/hour depending on project requirements.
Explore
Product
Product
Rotary Airlock / Rotary Valve
Rotary Airlock

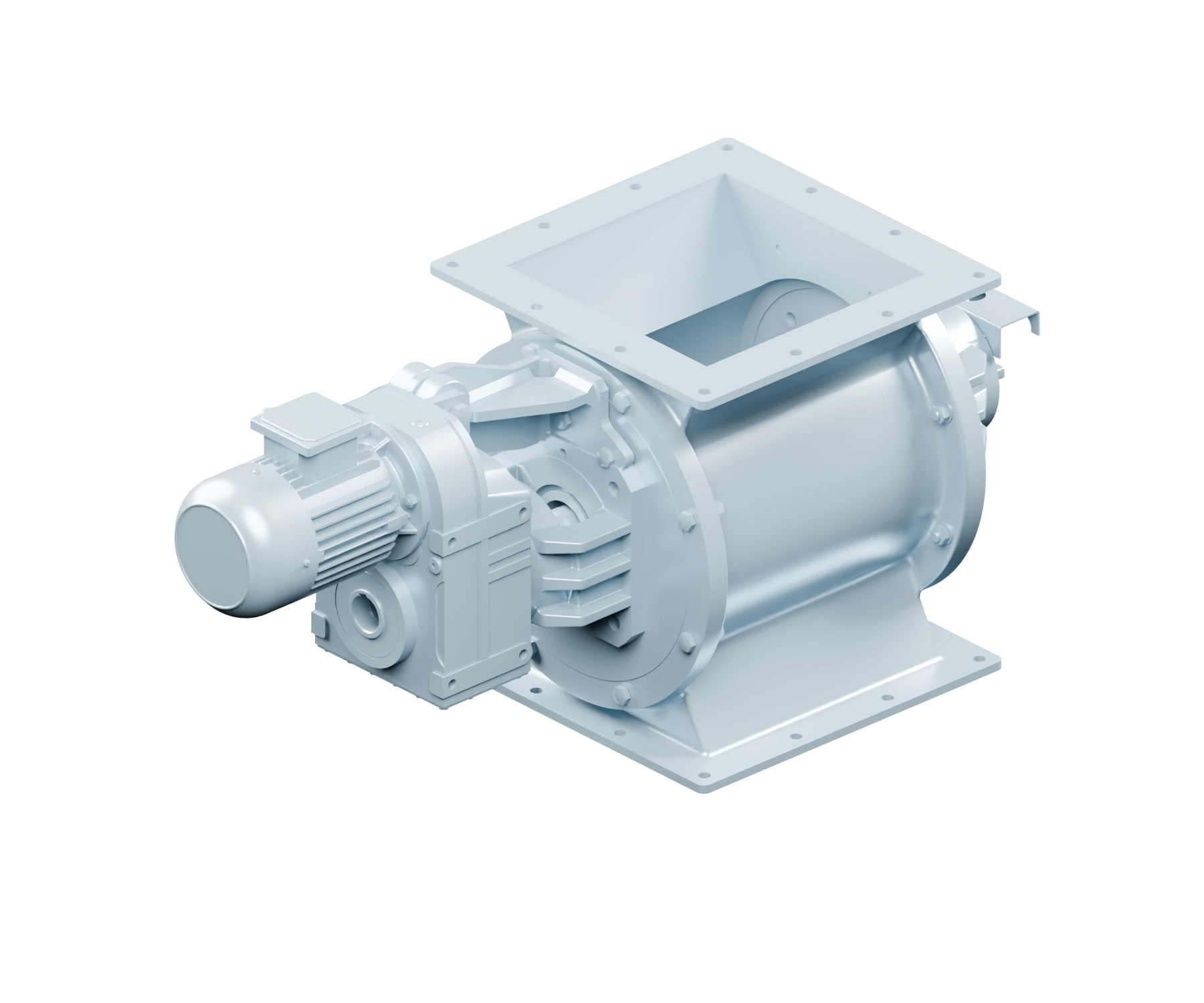

Rotary valve, rotary airlock and rotary feeder solutions for sealed, controlled material discharge at filter, cyclone separator, silo and hopper outlets.
Explore
Product
Slide Gates / Diverter & Process Dampers
Flaps
Damper solutions for shutting off, regulating and directing material or gas flow in silos, hoppers, conveyors and process lines.
Explore
Product
Fabric / Steel / Insulated Expansion Joints
Expansion Joints
Fabric, steel, and stone-wool insulated expansion joint solutions for ductwork, fans, filters, stacks and hot gas lines.
ExploreCapacity and selection
A 10–3,000 ton/hour project range, not a single catalog capacity
We evaluate requirements in the 10-3,000 ton/hour range, particularly for belt and heavy-duty conveyor projects. The exact capacity is calculated by verifying the material's bulk density, particle size, moisture content, line length, incline, feed continuity, and daily operating regime.
| Line component | Main Quest | Critical data before quoting |
|---|---|---|
| Elevator | Vertical lift | Tons/hour, elevation difference, material density, temperature, and bucket type |
| Conveyor | Horizontal/inclined main transfer | Belt/chain type, line length, incline, transfer points, and peak load |
| Screw conveyor | Enclosed short-distance conveying and dosing | Diameter, speed, fill level, incline, bearings, and wear |
| Rotary valve | Sealed discharge and dosing | Cell volume, rotational speed, differential pressure, and rotor clearance |
| Damper | Cutting, adjustment, or diverting | Cross-section, flow function, actuator, temperature, and jamming risk |
| Expansion joint | Vibration and thermal expansion control | Movement/travel, temperature, flange, and gas/dust characteristics |
Let's size your transport line together.
Share the material, capacity, line length, elevation difference, and operating regime, and we'll help you define the right equipment chain.
