PRODUCT GROUP

Rotary Airlock

Rotary valve, rotary airlock, and rotary feeder solutions for sealed, controlled material discharge at filter, cyclone, silo, and hopper outlets. Hantech Filter evaluates material properties, target capacity, line geometry, drive, wear, sealing, and maintenance access together within the same transport system.

Controlled dosing with rotary feeder / airlock

False-air (air infiltration) checks under the filter and cyclone

Standard, heavy-duty, and stainless steel housing options

Motor-gearbox, speed, rotor, and cell volume selection

Capacity, wear, jamming, and sealing checks

Request a quote for this product All products

Global technical approach

The rotary airlock is as much an air-leakage control device as a dust discharge one

Selection is made based on capacity, pressure differential, rotor type, sealing, and wear.

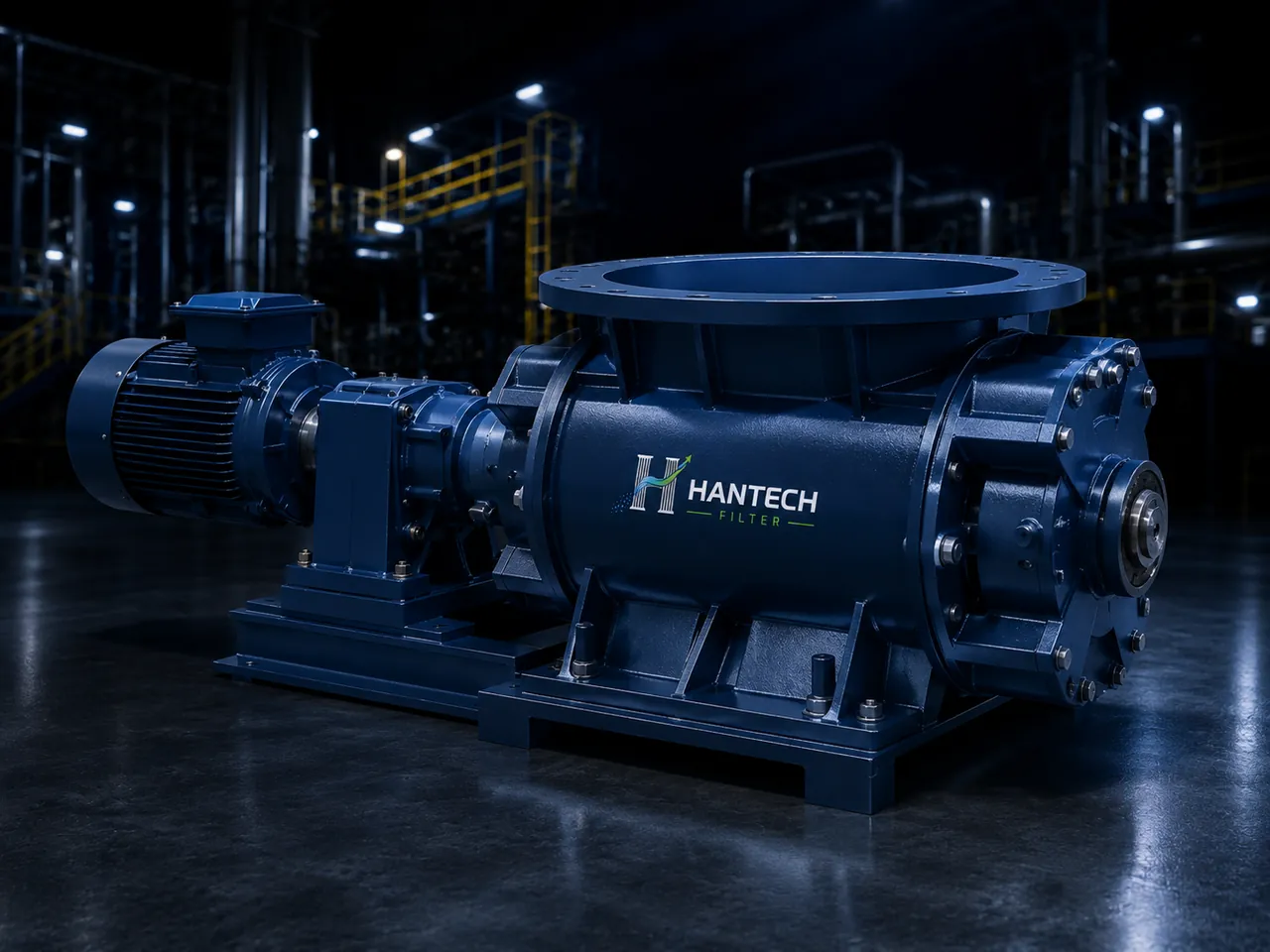

Hantech Filter Rotary Valve / Rotary Airlock technical product selection

Rotary Valve / Rotary Airlock decision criteria

Product selection is made by evaluating site data, process risk, maintenance access, and operating cost together.

Information to be clarified before quotation

Material type, density, and flowability
Required capacity in kg/h or m³/h
Upper/lower pressure difference and hopper size
Existing valve diameter, rotational speed, and motor power
Wear, leakage, and jamming history

Capability

Cell volume, rotational speed, and fill ratio determine the kg/h capacity.

Tightness

Air leakage lowers cyclone/filter efficiency and disrupts bunker discharge.

Rotor Type

Open, closed, offset, or wear-resistant rotor is selected based on dust characteristics.

Safety

Jamming, bridging, ATEX, and maintenance access are operational risks.

Product / application comparison

Type / solution	App	Advantage	Caution point
Standard rotary valve	Filter hopper outlet, dry dust	Continuous, controlled discharge	Rotor/housing wear is monitored with abrasive dust
Heavy-duty rotary valve	Cement, minerals, lime, ash	Thick housing and high durability	Motor-gearbox torque and speed selection are important
Air lock / airlock valve	Lines with a pressure differential	Leakage air reduction	Rotor tip clearance and seals are critical
Food/chemical special valve	Lines requiring hygiene or corrosion resistance	Stainless-steel, easy-to-clean construction	Material certification and surface quality are required

Technical check matrix

This list is not a “success percentage”; it shows the design variables we always verify during quotation and site survey. Product selection is not finalized until every item has been correctly measured.

Dust capacityCritical control

False air checkCritical check

Wear resistanceCritical check

Bridging riskCritical check

Maintenance accessCritical check

Risks we check on site

Incorrect capacity or high pressure loss
Wear, corrosion, leakage, and service access
Short service life due to incorrect material/media selection
Mismatch between air equipment, ducting, filter, and discharge equipment
Planned downtime and commissioning verification

Product images

Correctly categorized site and equipment images for Rotary Valve / Rotary Airlock

These images were named directly from the source product folder according to technical product group, optimized as WebP, and placed here without affecting page performance.

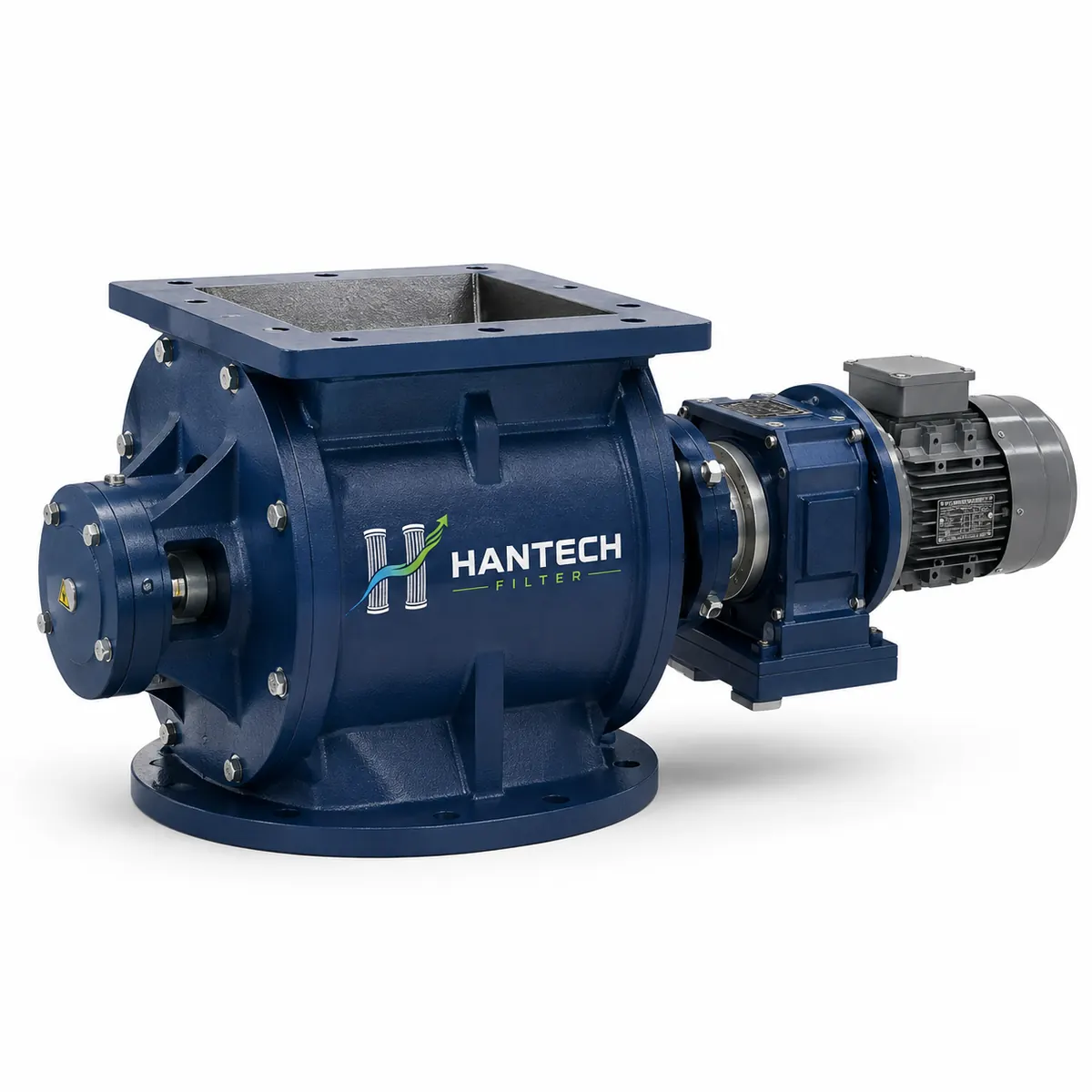

Hantech Filter Rotary airlock — **Rotary airlock**Rotary airlock; reduces air leakage at the filter hopper outlet while discharging dust.

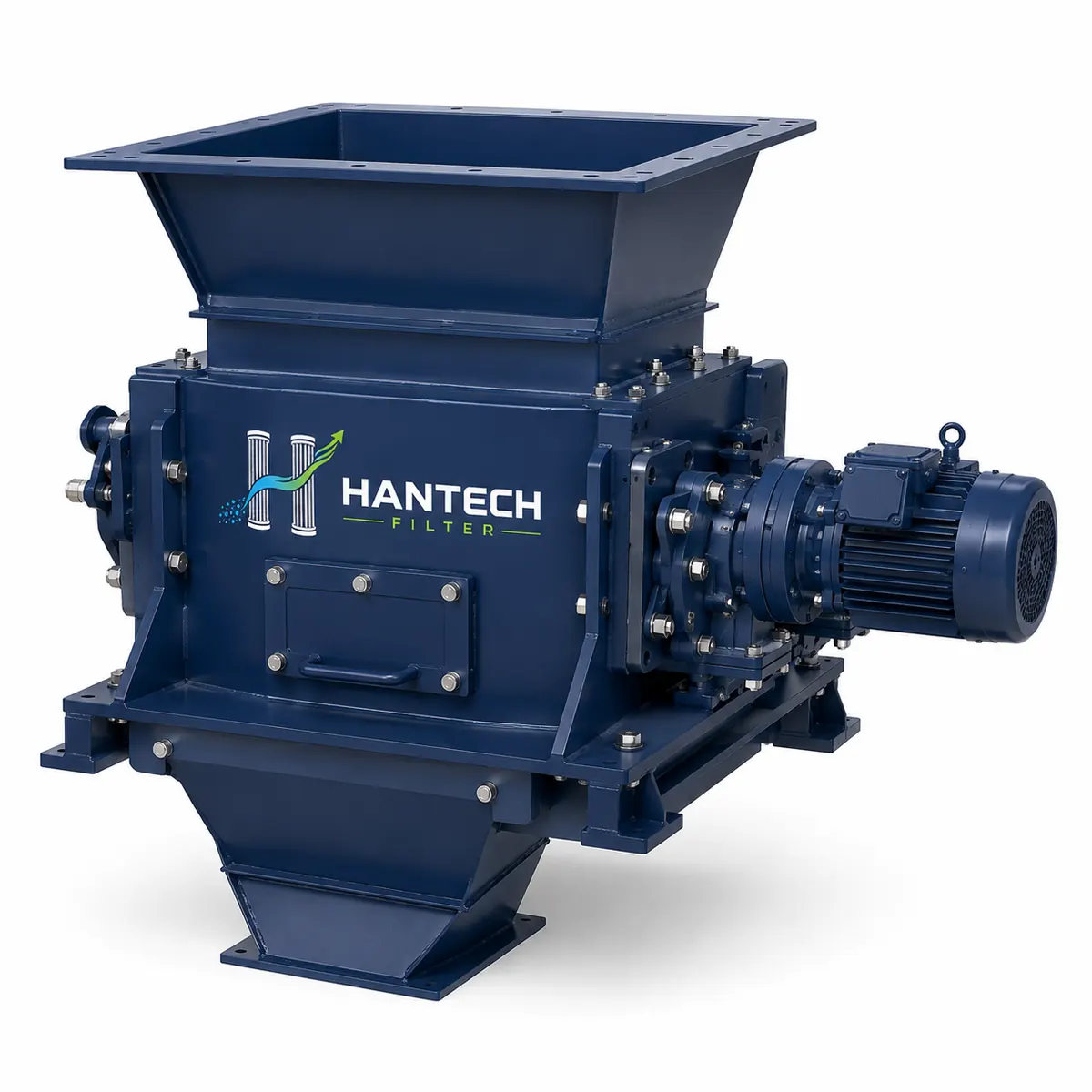

Hantech Filter Heavy-duty rotary valve — **Heavy-duty rotary valve**Heavy-duty rotary valve, selected for airtight discharge under high dust loads.

Hantech Filter Circular rotary feeder — **Round rotary feeder**Round rotary feeder; provides controlled dosing between the hopper and process equipment.

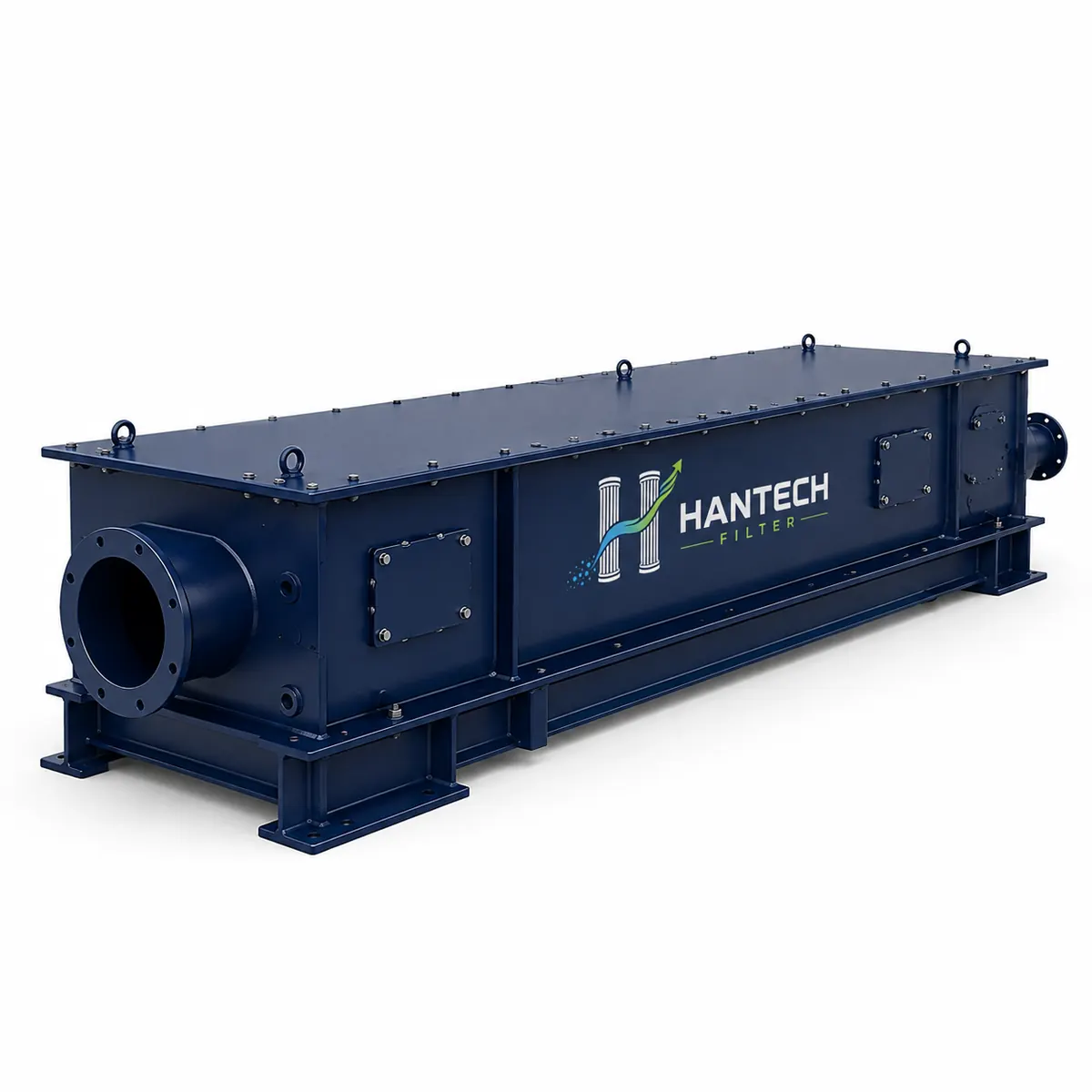

Hantech Filter Cylindrical rotary feeder — **Cylindrical rotary feeder**Cylindrical rotary feeder; provides airtight dosing in enclosed process lines.

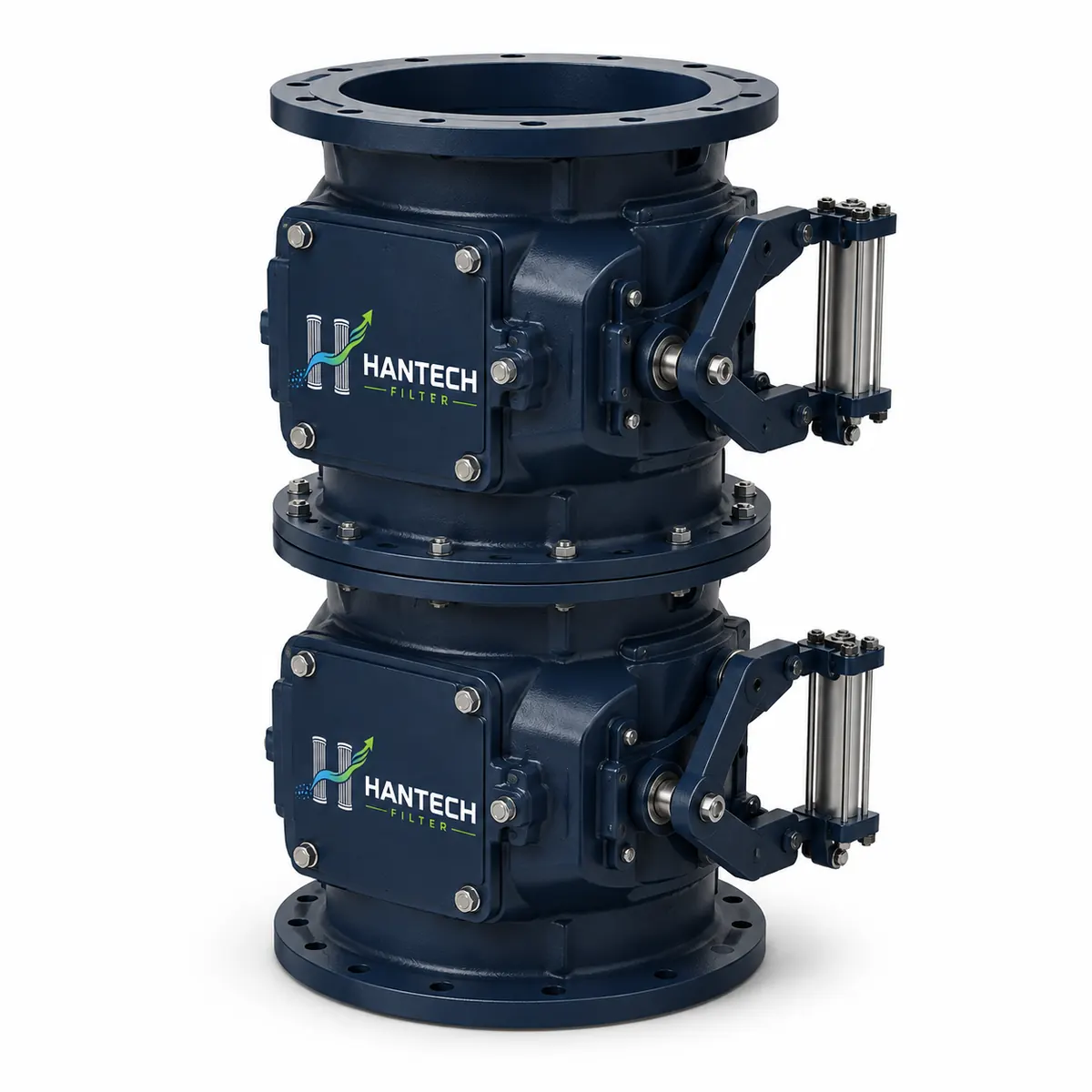

Hantech Filter Double-stage rotary airlock — **Double-tier rotary airlock**Double-tier rotary airlock; used where sealing and continuous discharge are required.

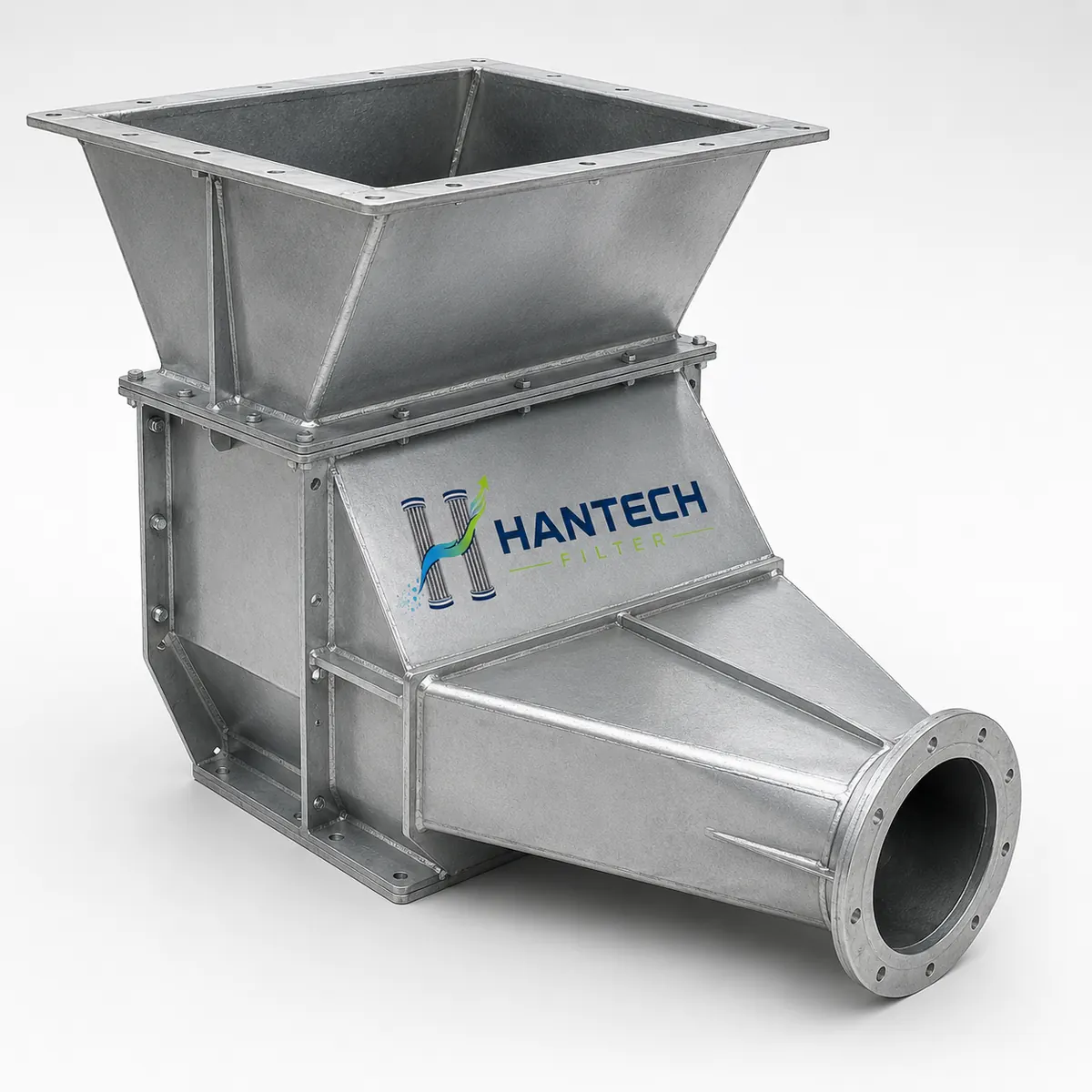

Hantech Filter Stainless rotary valve transition piece — **Stainless rotary valve transition piece**Stainless rotary valve transition piece; provides dosing and sealing in dust flow.

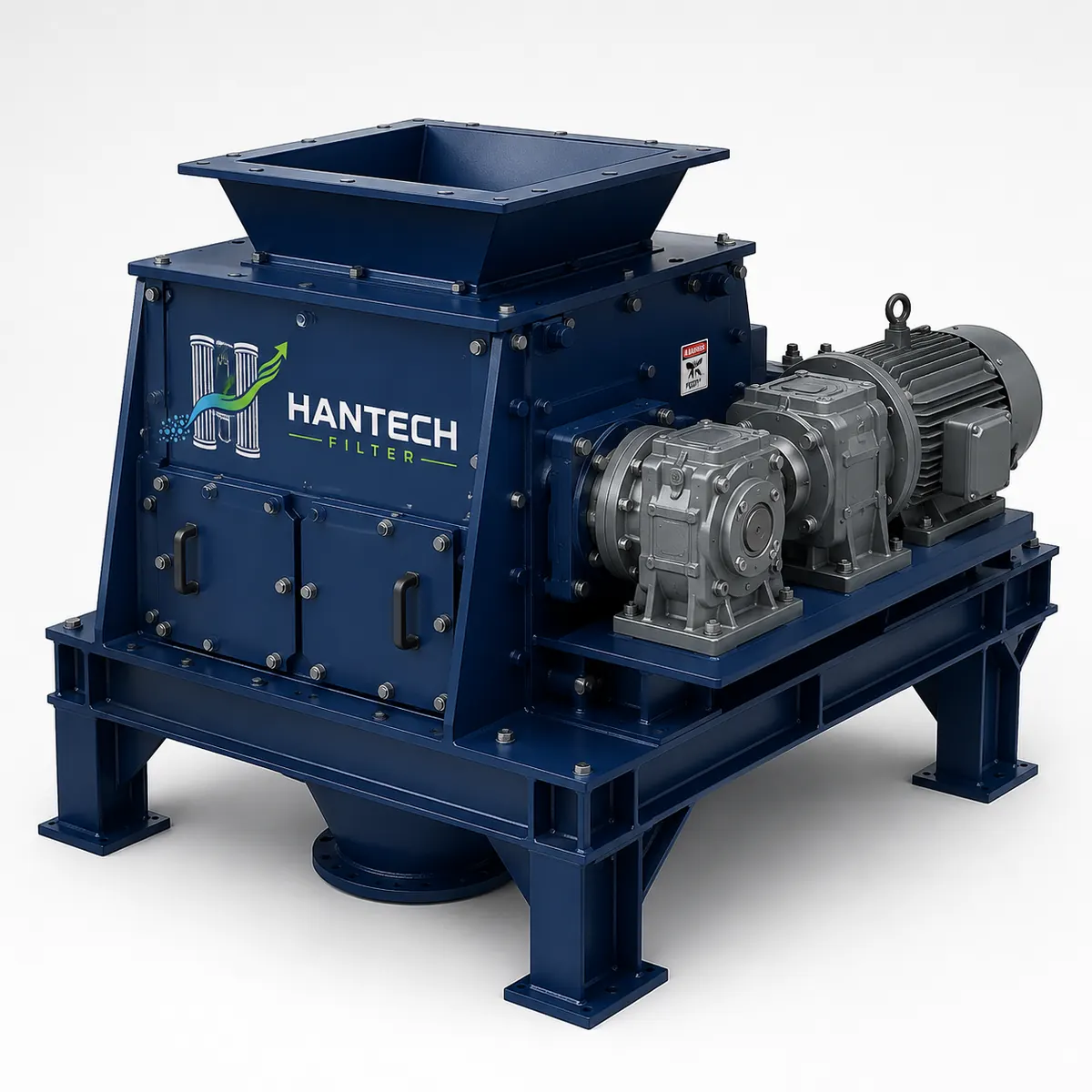

Hantech Filter Heavy-duty rotary airlock — **Heavy-duty rotary airlock**Heavy-duty rotary airlock, preferred for high-capacity dust discharge.

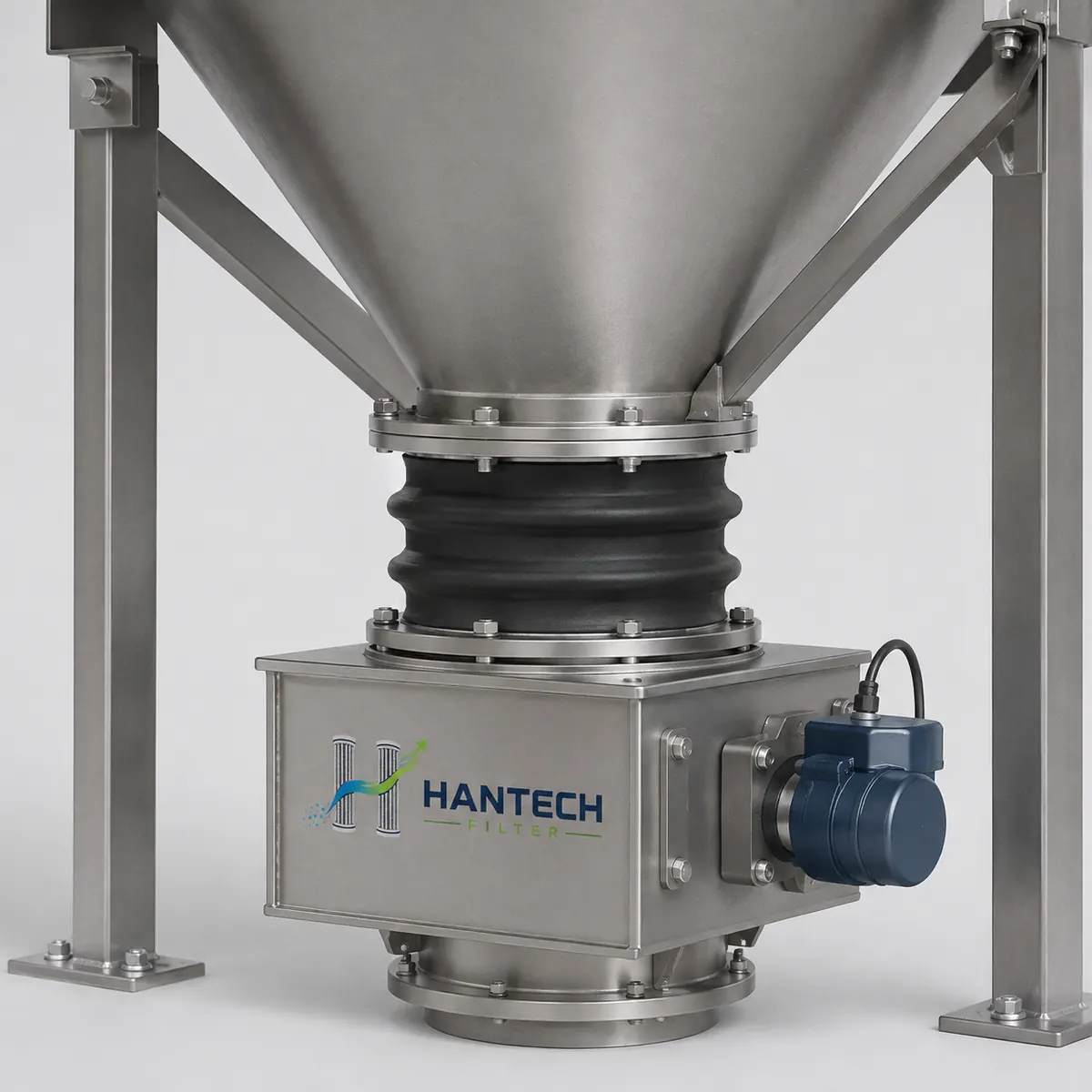

Hantech Filter Under-hopper rotary airlock — **Under-hopper rotary airlock**Under-hopper rotary airlock; provides consistent dust discharge and airtight sealing.

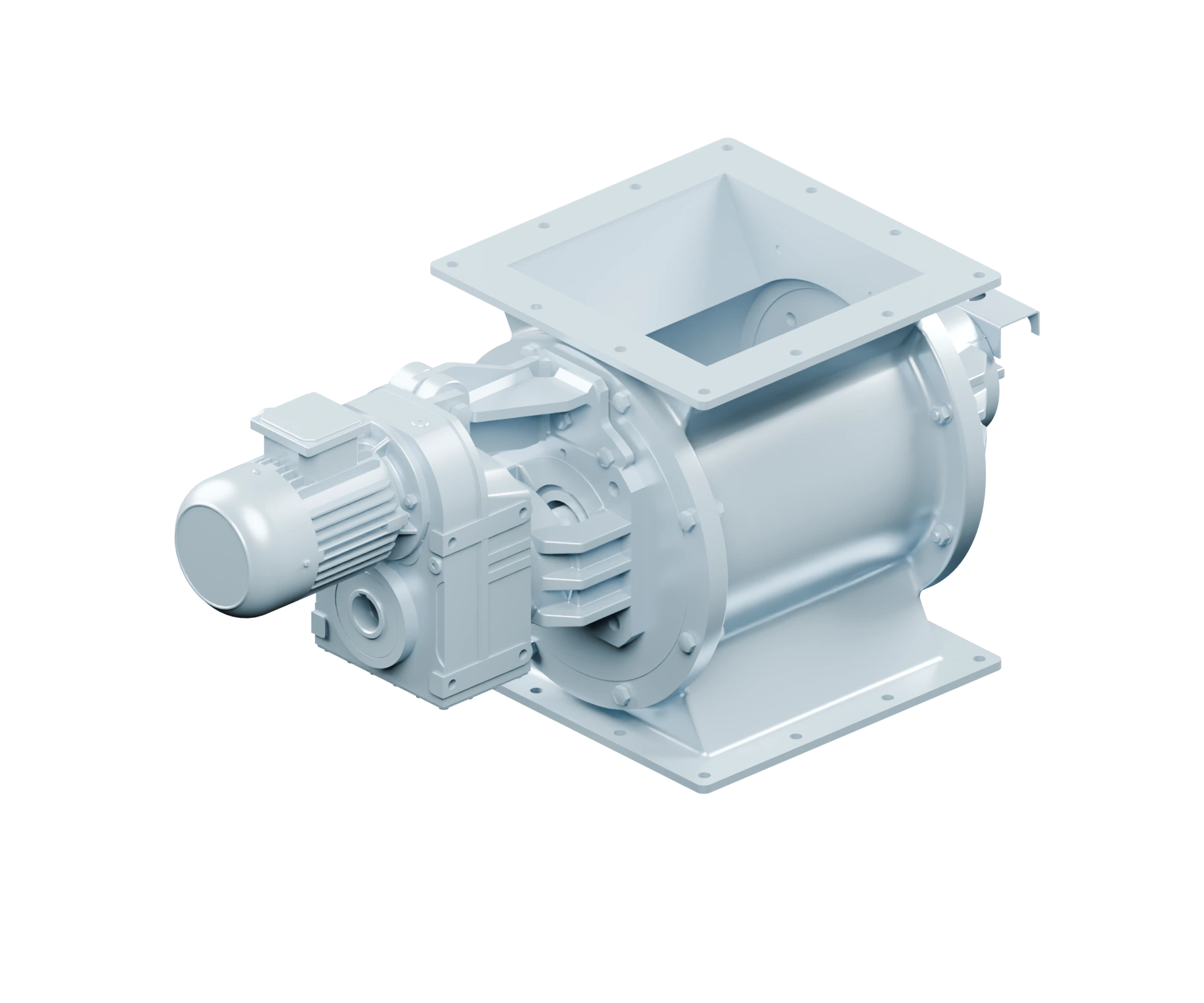

Hantech Filter Cell-wheel rotary feeder — **Rotary vane feeder**Rotary vane feeder; selected for metered discharge and sealing.

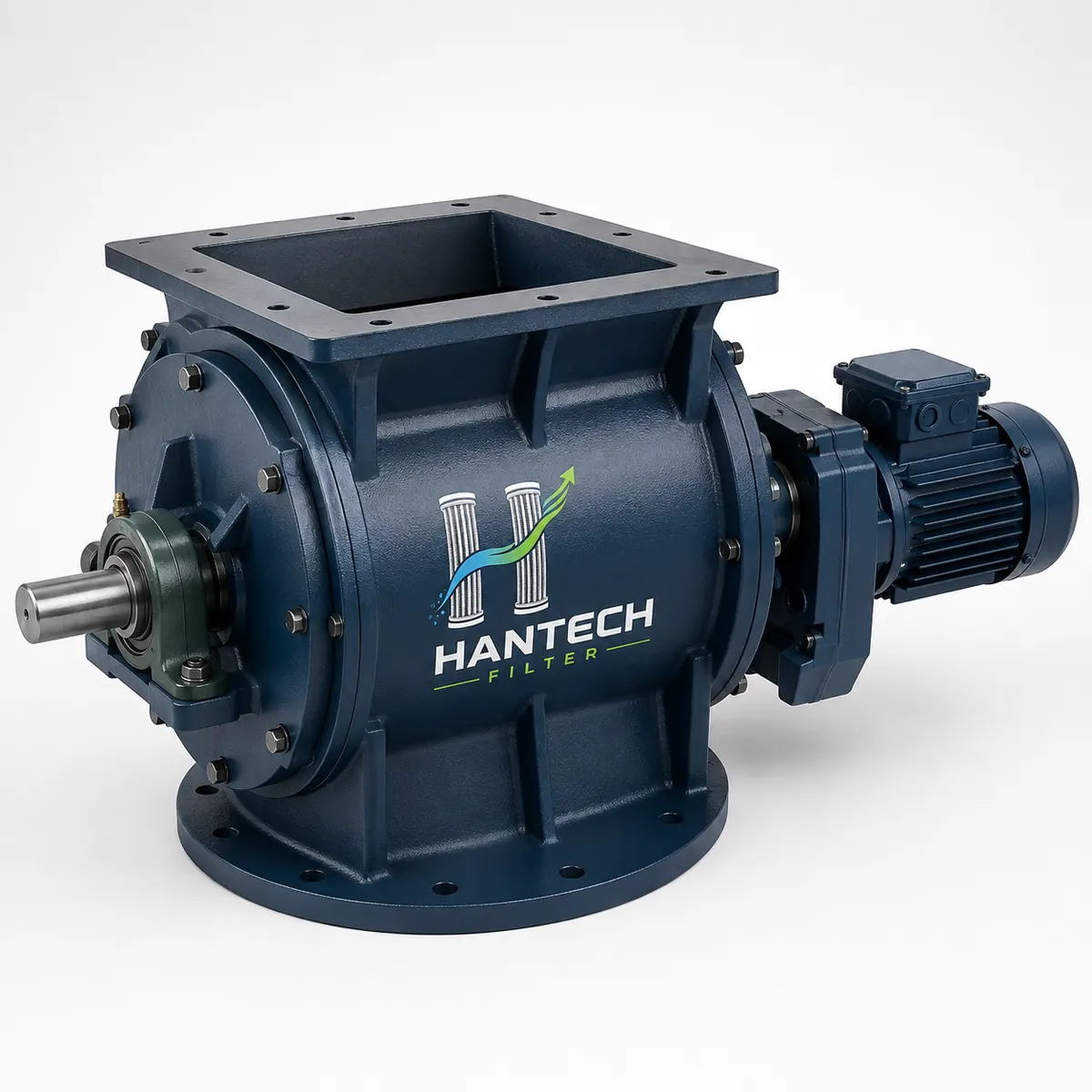

Hantech Filter Compact rotary airlock — **Compact rotary airlock**Compact rotary airlock; provides controlled discharge for small hopper outlets.

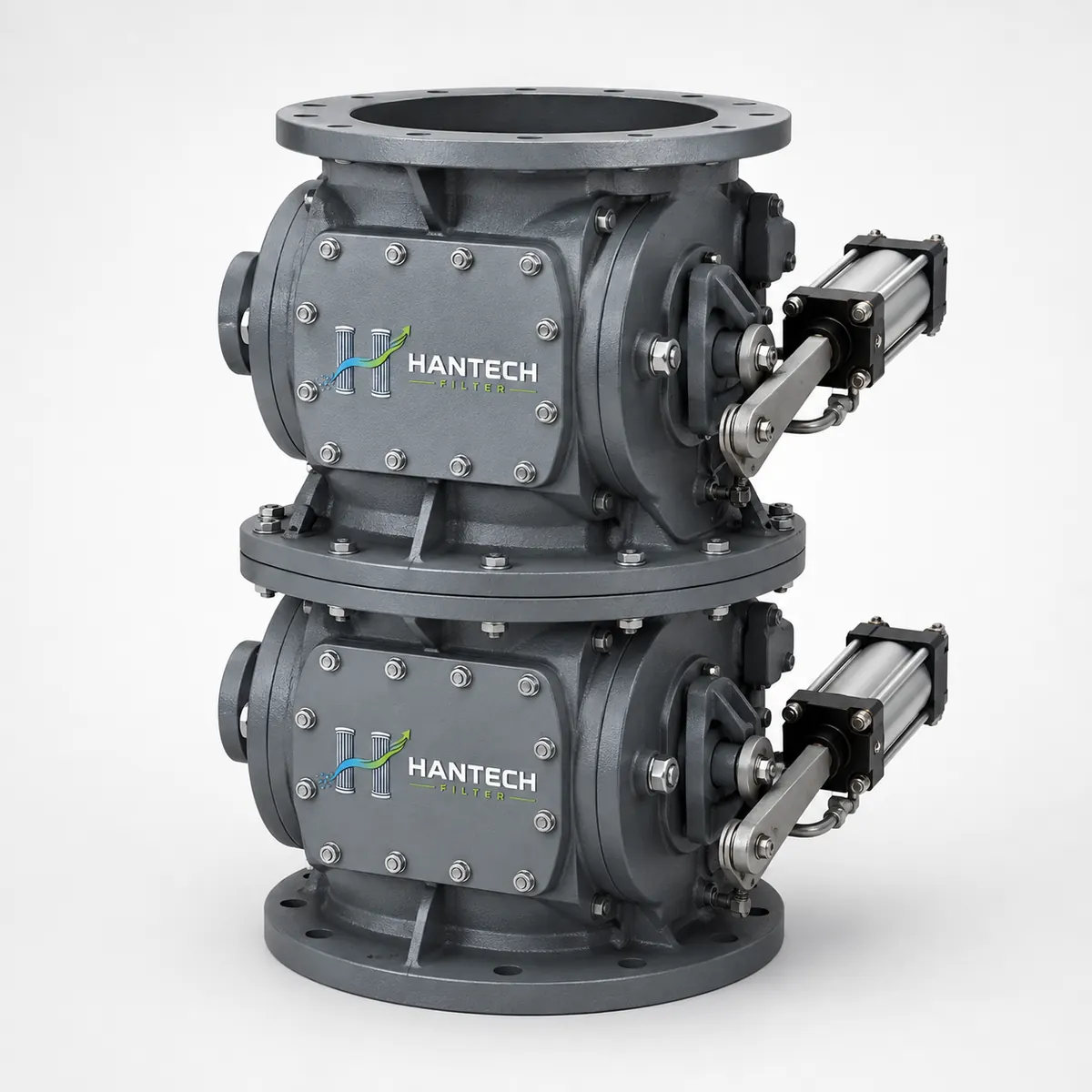

Hantech Filter Dual rotary valve set — **Dual rotary valve set**Dual rotary valve set; considered for redundant or dual-line discharge applications.

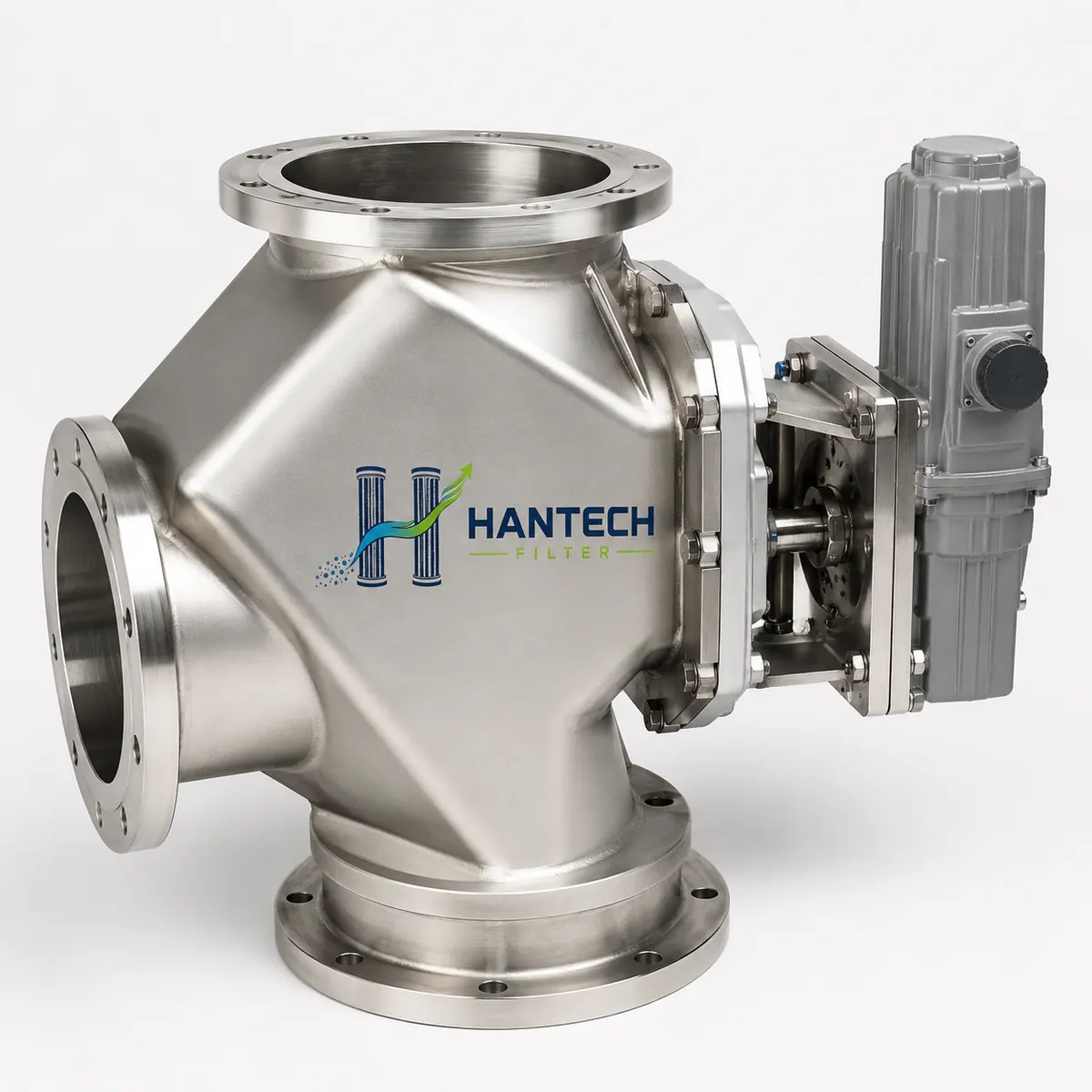

Hantech Filter Stainless Y-type rotary valve — **Stainless Y-type rotary valve**Stainless Y-type rotary valve; used for dosing and diverting at process transfer points.

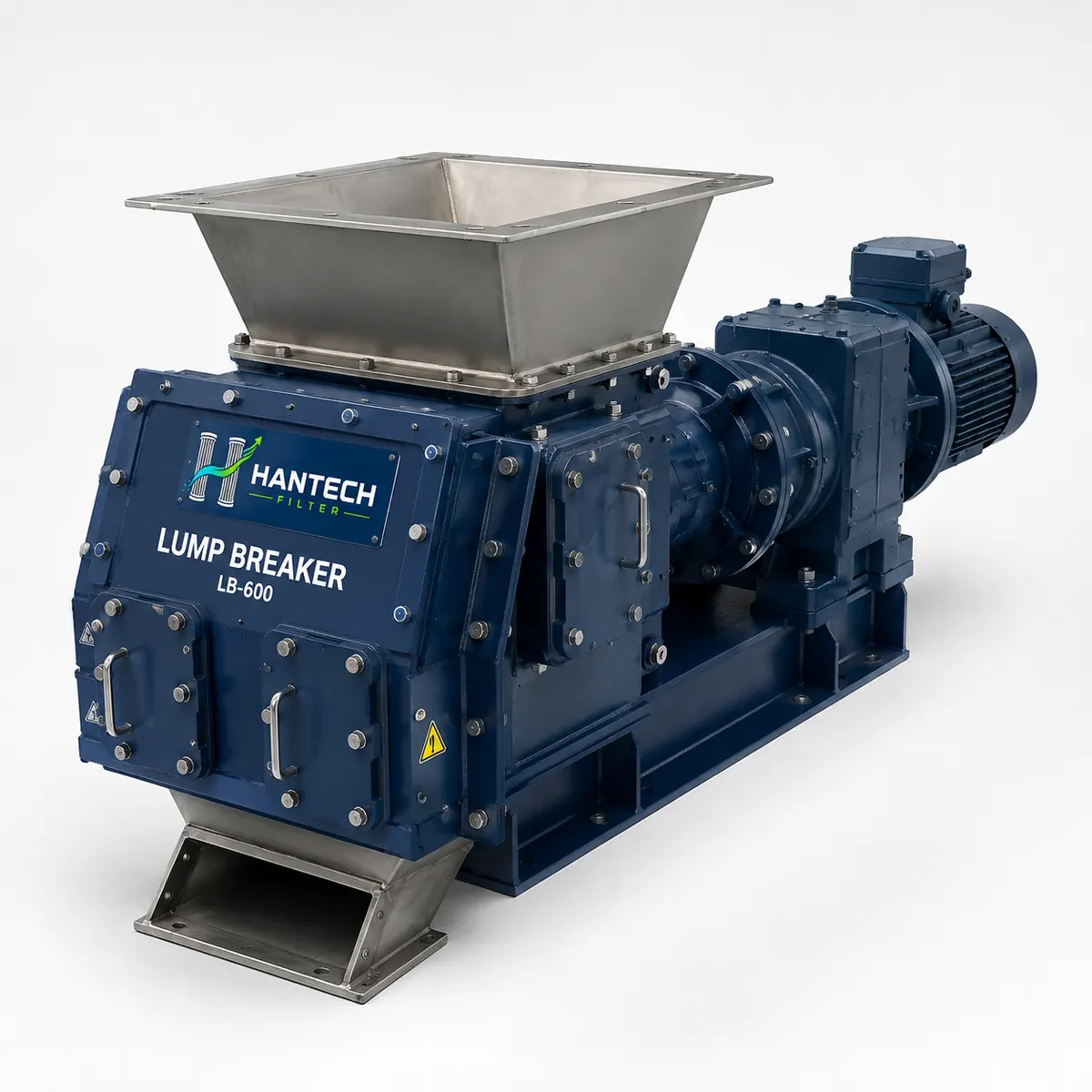

Hantech Filter Lump breaker / rotary feeder — **Lump breaker / rotary feeder**Lump breaker / rotary feeder; used for discharging lumpy material.

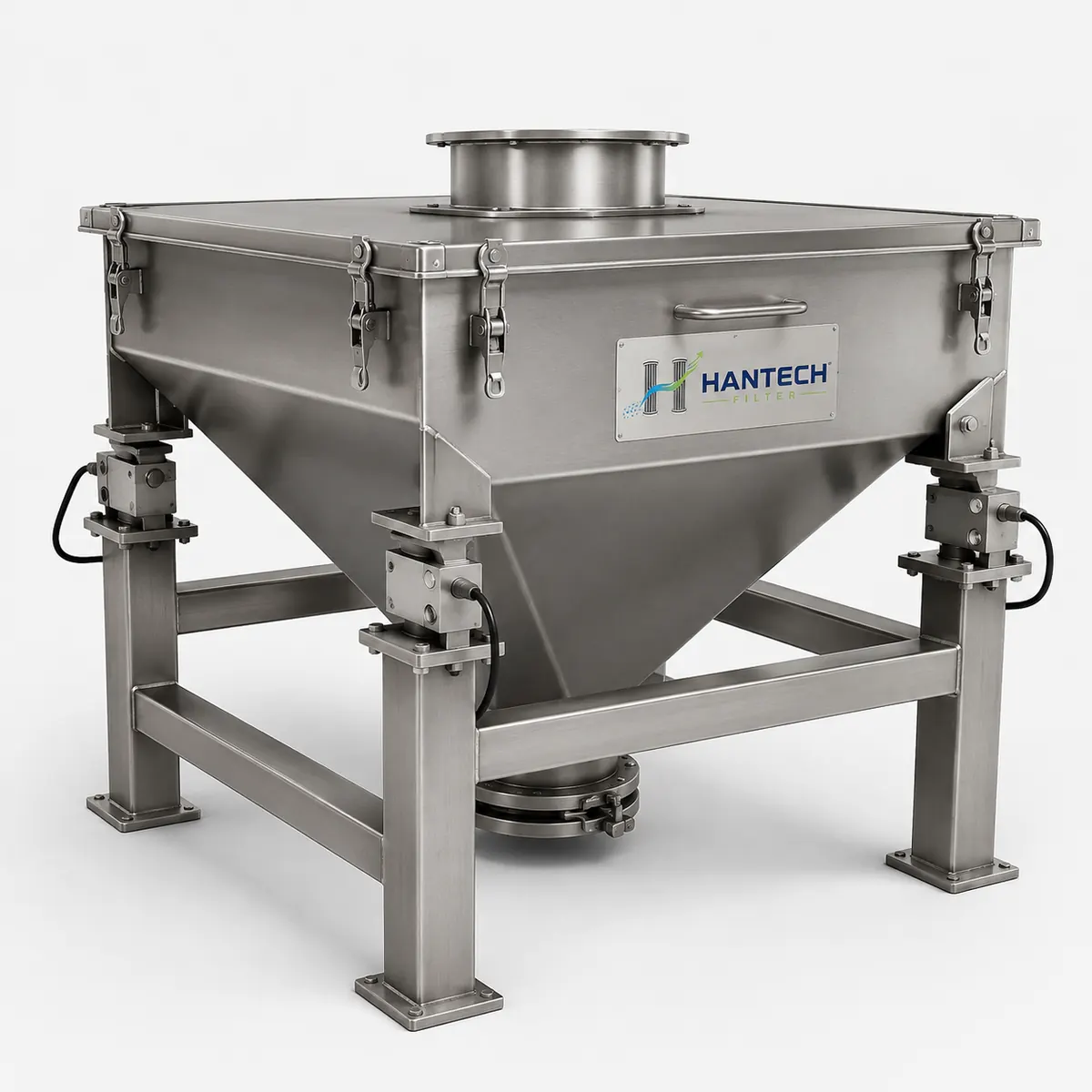

Hantech Filter Hopper-mounted rotary dosing unit — **Hopper-mounted rotary dosing unit**Hopper-mounted rotary dosing unit; provides controlled dust feeding and discharge.

14 optimized images have been linked to this product group; images are served in WebP format for fast loading.

Technical selection

What we evaluate together during the quotation process

Material name and bulk density, ton/hour capacity, particle size, moisture, temperature, line length, incline/elevation difference, operating duration, and connected equipment are all evaluated together.

Capacity and operating regime

Nominal/peak tons per hour, daily operating time, and feed continuity are calculated together.

Material and line geometry

Bulk density, particle size, moisture, abrasiveness, line length, and elevation difference determine the equipment type.

Drive, safety, and maintenance

Motor-gearbox, sensors, guards, service covers, and planned maintenance access are defined from the outset.

Product groups

Other filtration products

Hantech Filter Filter Bags — Polyester, PP, acrylic, PPS, aramid, P84, PTFE, glass fiber, antistatic and ePTFE membrane filter bag options.

Product

Filter Bags / PTFE Membrane

Filter Bags

Polyester, PP, acrylic, PPS, aramid, P84, PTFE, fiberglass, antistatic, and ePTFE membrane filter bag options.

Explore

Hantech Filter Filter Cages — Filter cage, bag cage, cataphoresis-coated cage, silicone-coated cage, SS304 venturi cage and membrane-compatible cages.

Product

Filter Cages / SS304 Venturi Cage

Filter Cages

Filter cage, bag cage, cataphoresis-coated cage, silicone-coated cage, SS304 venturi cage, and membrane-compatible cages.

Explore

Hantech Filter Air Slide Fabric — Air slide fabric, air slide cloth and cement pneumatic conveying fabrics.

Product

Air Slide Fabric / Cloth

Air Slide Fabric

Air slide fabric, air slide cloth, and cement pneumatic conveying fabrics.

Explore

Product

Liquid Filtration / Filter Bags

Liquid Filtration

Filter bags for liquid processes, cartridge/bag filter housing selection, and chemically compatible filtration solutions.

Explore

Get a technical quote for Rotary Valve / Rotary Airlock.

Share your material type, target capacity, line length, elevation difference, and operating regime; we'll clarify the conveying equipment and connected line scope.

Technical Quote Form Write on WhatsApp
