Filling-air filtration
Filling rate, conveying-air volume and silo operating pressure are the starting inputs for filter selection.
Manufacturing · Engineering · Field Services

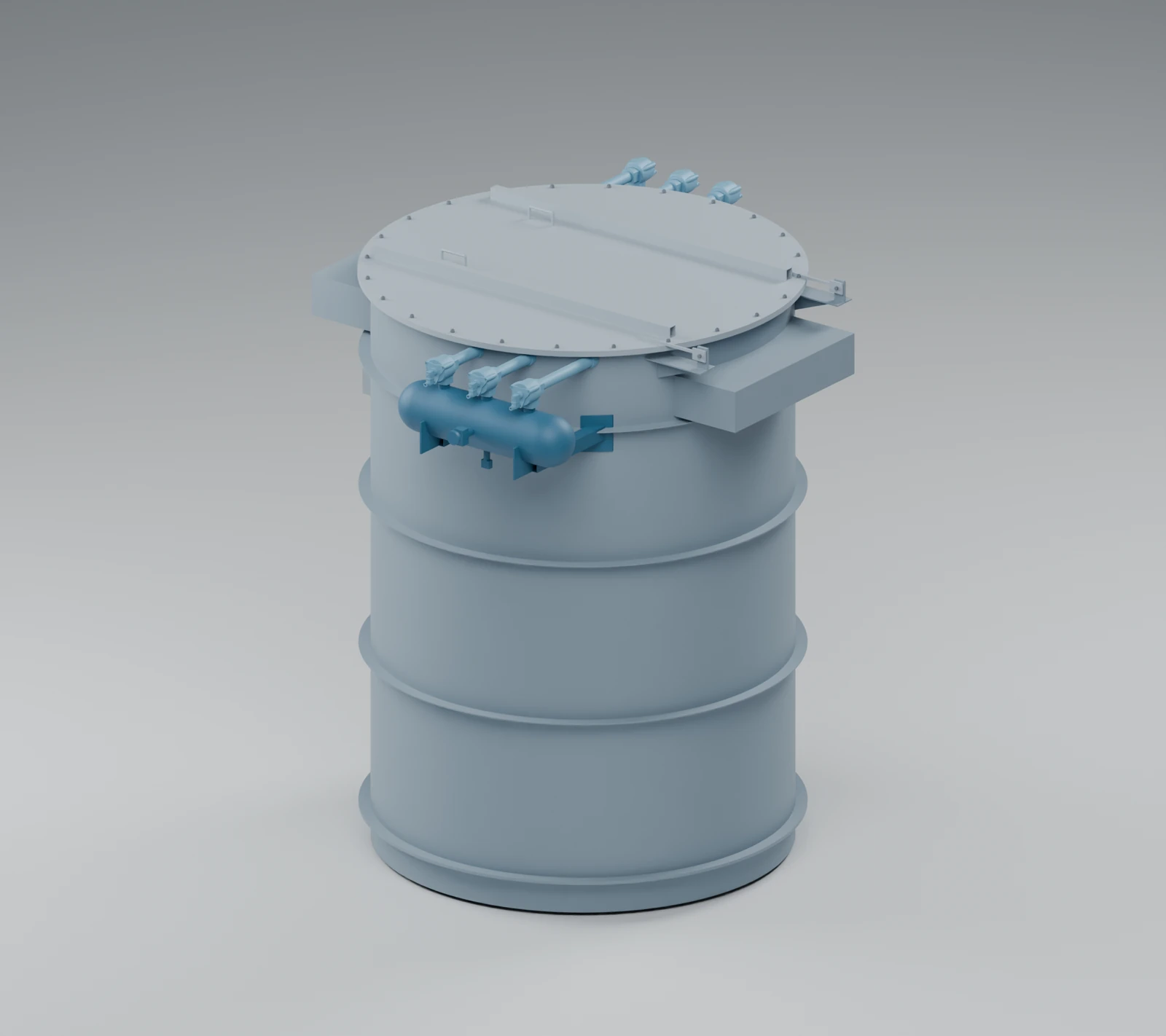

Compact filtration for silo filling air.
The cylindrical housing mounts on the silo and combines bags and cages, a top service lid and pulse-jet cleaning equipment. HTF-SILO32 is a silo vent filter design without an integral fan.
- 32 bags, Ø160 × 2,000 mm
- 32.17 m² nominal bag lateral surface area
- Top access and pulse-jet cleaning
HTF-SILO32
Technical data of the example model
Equipment tailored to your project.
Data refer to the HTF-SILO32 preliminary design. Filter flow and media suitability are verified against filling air, temperature, moisture and dust properties. The 32.17 m² value is nominal cylindrical bag area, not a capacity guarantee.
| Bag quantity and dimensions | 32 · Ø160 × 2,000 mm |
|---|---|
| Nominal bag lateral surface area | 32,17 m² |
| Body outside diameter | 1,750 mm |
| Cleaning arrangement | 6 × G1½ pulse-jet valves |
| Design compressed-air range | 4–6 bar(g) |
| Preliminary bag media selection | 550 g/m² antistatic polyester |
| Integral fan | None — fanless silo vent configuration |
| Process flow rate | Engineered to suit filling conditions |
Top service access
The hinged lid gives access to bags, cages and blowpipes. Lid clearance is planned together with the silo platform.
Pulse-jet equipment
Valves, blowpipes, compressed-air supply and cleaning cycles are matched to the dust loading.
Design details
Explore the product in detail

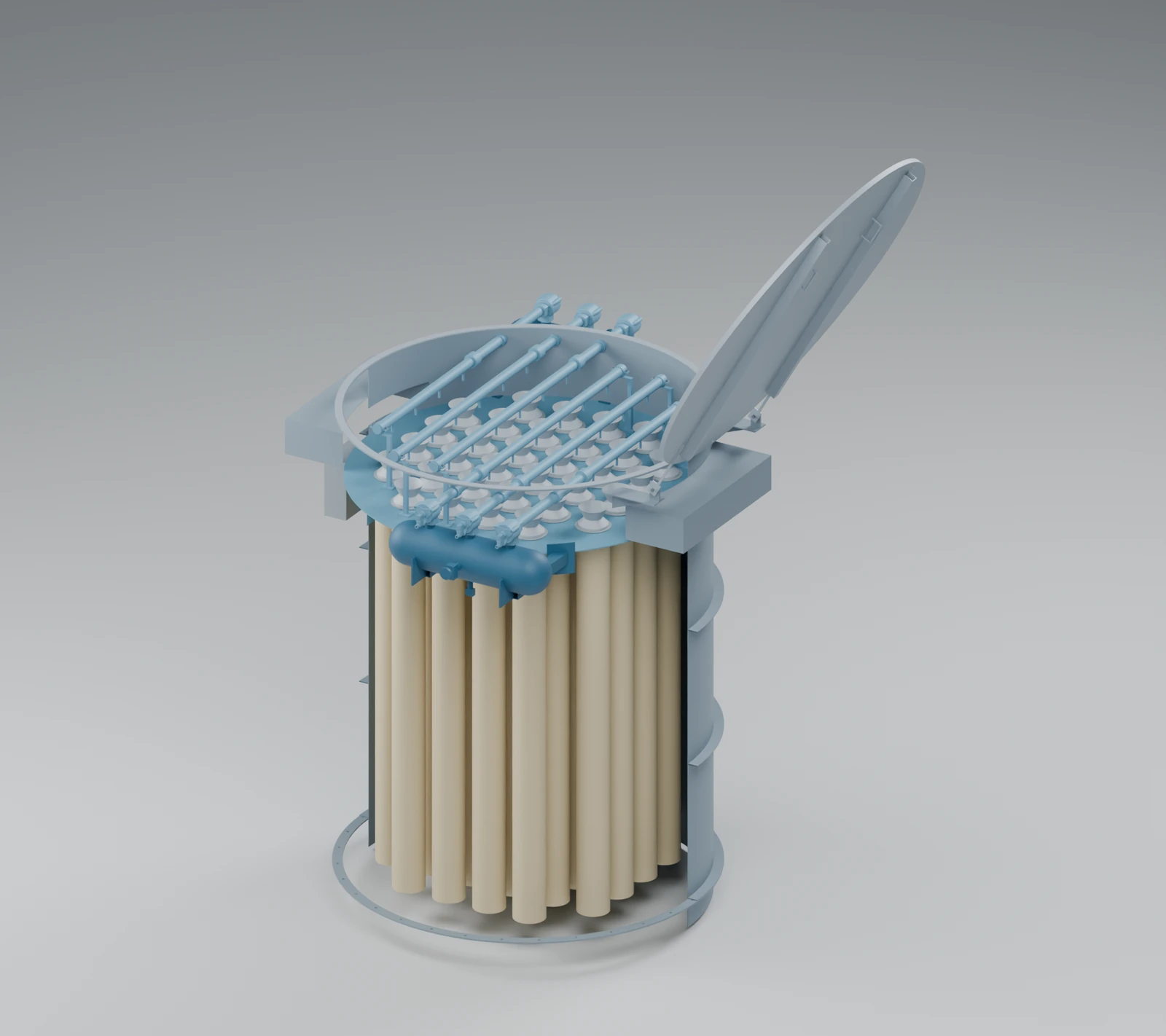

Open lid: bags and cleaning arrangement
Internal view of the Hantech model: 32 bags, blowpipes and hinged service lid.
Let us define your requirements
Share your process data for the right selection
- Stored material and filling method
- Conveying-air flow and filling duration
- Temperature, moisture, pressure and mounting flange
