Baghouse Filter Retrofit and Upgrade

Retrofit service aimed at reducing flow, pressure drop, bag life, emission and capacity problems in existing baghouse filters.

Bag Filter Retrofit / Modernization

PRODUCT GROUP

Baghouse Filter Retrofit and Upgrade

A retrofit service aimed at reducing flow, pressure loss, filter bag life, emission, and capacity problems in existing baghouse filters. Hantech Filter helps you select the right product combination based on your plant's flow rate, temperature, dust type, and operating conditions.

Internal filter flow and inlet/outlet line revision

Reducing differential pressure and air-handling equipment energy consumption

Root-cause analysis of bag tearing, wear, and leakage

Compatibility of blow pipe, nozzle, venturi, cage, and bag media

Increased capacity, lower emissions, and longer bag life with minimal new investment

This page has been prepared to clarify the correct equipment scope and application decisions for your facility.

Why is a retrofit needed?

A production increase, a lower emission target, high differential pressure, bag tearing, housing wear, dust leaks, or fan energy consumption can all justify upgrading an existing filter. The goal is usually to raise performance without a complete new investment.

Existing filter performance study

A renewal project begins by reviewing filter dimensions, number of bags, bag length, total filter area, air-to-cloth ratio, air-handling equipment nameplate, motor power, current differential pressure curve, and stack measurement results. Replacing parts alone, without photos and site data, does not provide a lasting solution.

Flow and pressure drop analysis

Poor flow distribution inside the filter increases the operating differential pressure, raises the air handling equipment's energy consumption, and shortens the life of expensive filter bags. The inlet line, outlet line, plenum, distribution baffles, and internal filter guides are checked together.

Root cause of filter bag tearing

Bursting at the top, wear in the lower cylindrical section, nozzle centering error, pulse pipe wear, venturi-cage mismatch, or dust breaking through to the clean-gas side can all lead to rapid bag damage. The fix is not just replacing the bag, but eliminating the root cause of the damage.

Pulse-jet and compressed air system overhaul

Air tank volume, diaphragm valve diameter, solenoid control, blow-pipe hole pattern, nozzle centering, pulse duration, and compressed air quality determine filter cleaning efficiency. Pulsing too frequently shortens bag life, while insufficient pulsing raises pressure drop.

Scope of Retrofitting

A cleaning-system renewal can cover the pulse-jet pipes and nozzles, venturi-to-cage compatibility, bag media, hopper discharge, rotary valve, housing wear zones, fan outlet ducting, sensors, and differential-pressure-based cleaning control.

Targeted outcome

The goal is a modernized filter system that delivers lower differential pressure, reduced energy consumption, longer bag life, lower emissions, less clogging, less housing wear, and support for a production increase, all with minimum investment.

Request a quote for this product All products

Global technical approach

A retrofit is not a parts swap — it's a performance root-cause study

In modernization examples, CFD/flow optimization, pulse system revision, media replacement, fan operating point, and maintenance access are all addressed within the same project.

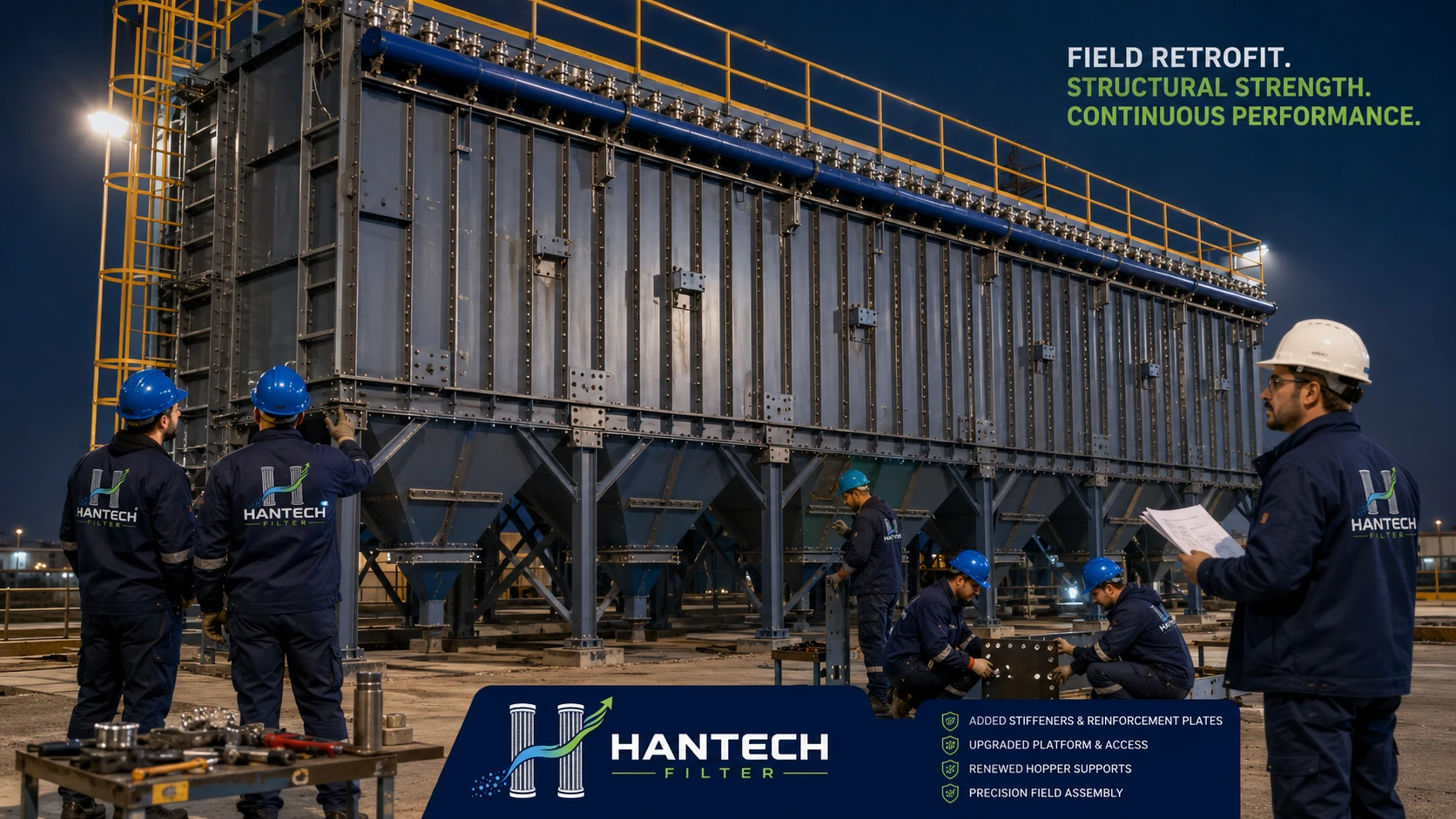

Hantech Filter Baghouse Filter Retrofit and Upgrade technical product selection

Baghouse Filter Retrofit and Upgrade decision criteria

Product selection is made by evaluating site data, process risk, maintenance access, and operating cost together.

Information to be clarified before quotation

Existing filter size and filter bag count
ΔP trend, emission, and production capacity
Filter bag tearing/wear photos
Air handling equipment nameplate, motor current, and duct layout
Planned shutdown duration and target outcome

Flow distribution

Inlet/outlet geometry and plenum velocities determine bag wear.

ΔP drop

Filter area, pulse cleaning, and bag media are optimized together.

Bag damage

The tear location points to the root cause: nozzle, cage, velocity, or chemical environment.

Energy

Filter differential pressure and the air handling equipment's operating point are reduced together.

Product / application comparison

Type / solution	App	Advantage	Caution point
Flow revision	Uneven velocity, bag wear	Balanced flow with a distribution plate/guide vane	Verified by CFD or site measurement
Pulse system overhaul	High ΔP or weak cleaning	Valve, tank, blow pipe, nozzle, and control renewal	Compressed air quality is checked
Media/cage replacement	Short filter bag life or emissions	Correct bag + cage + venturi fit	The chemical/mechanical cause of the damage is identified
Fan/duct correction	Energy consumption and capacity issue	Operating point optimization	A retrofit alternative is calculated instead of new air-handling equipment

Technical check matrix

This list is not a “success percentage”; it shows the design variables we always verify during quotation and site survey. Product selection is not finalized until every item has been correctly measured.

Root cause analysisCritical check

Flow optimizationCritical check

ΔP and energy impactCritical control

Filter bag lifeCritical control

Shutdown planCritical check

Risks we check on site

Incorrect capacity or high pressure loss
Wear, corrosion, leakage, and service access
Short service life due to incorrect material/media selection
Mismatch between air equipment, ducting, filter, and discharge equipment
Planned downtime and commissioning verification

Product images

Correctly classified field and equipment images for Baghouse Filter Retrofit and Upgrade

These images were named directly from the source product folder according to technical product group, optimized as WebP, and placed here without affecting page performance.

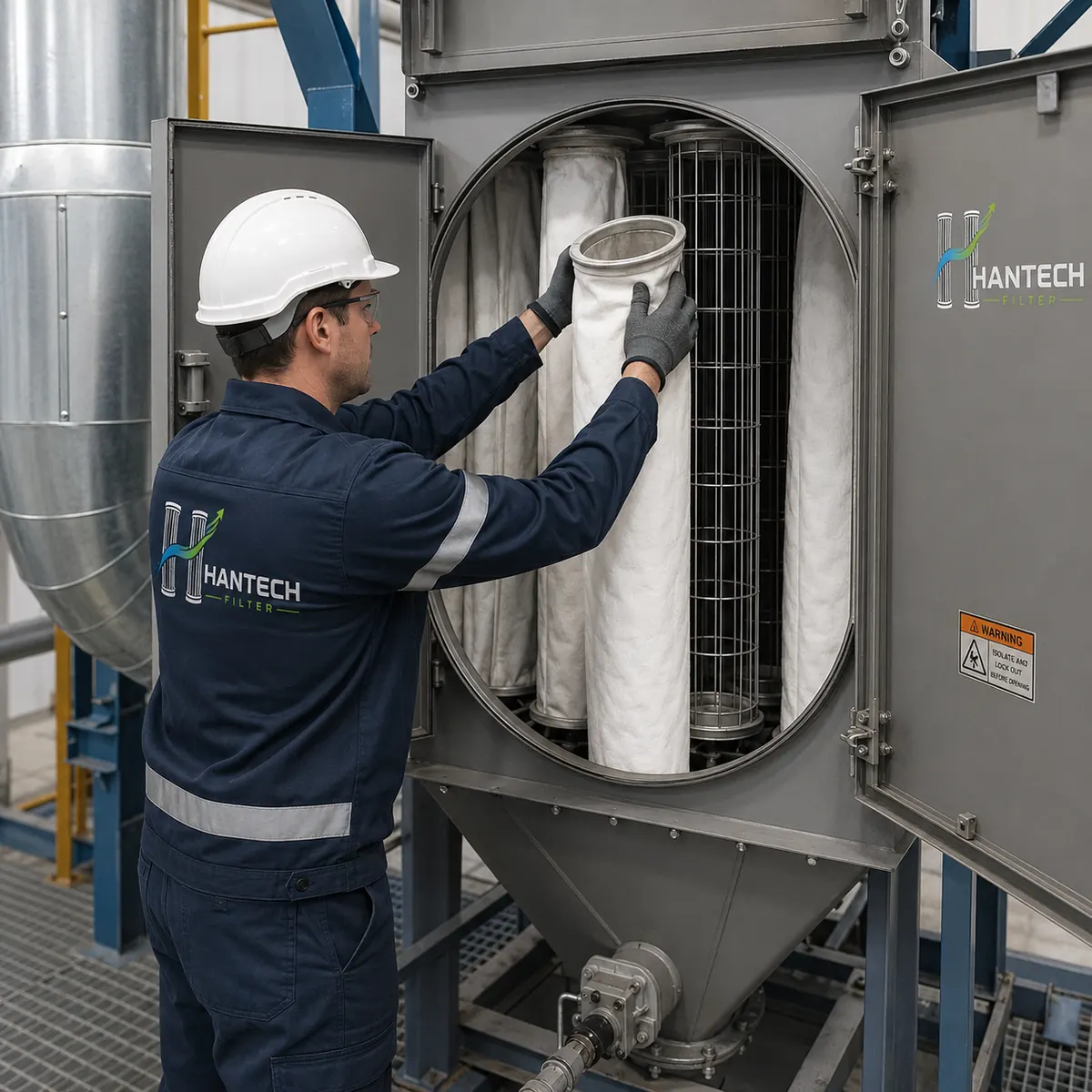

Hantech Filter Filter bag replacement service — **Filter bag replacement service**Filter bag replacement service; commissioned with correct installation and leak checks.

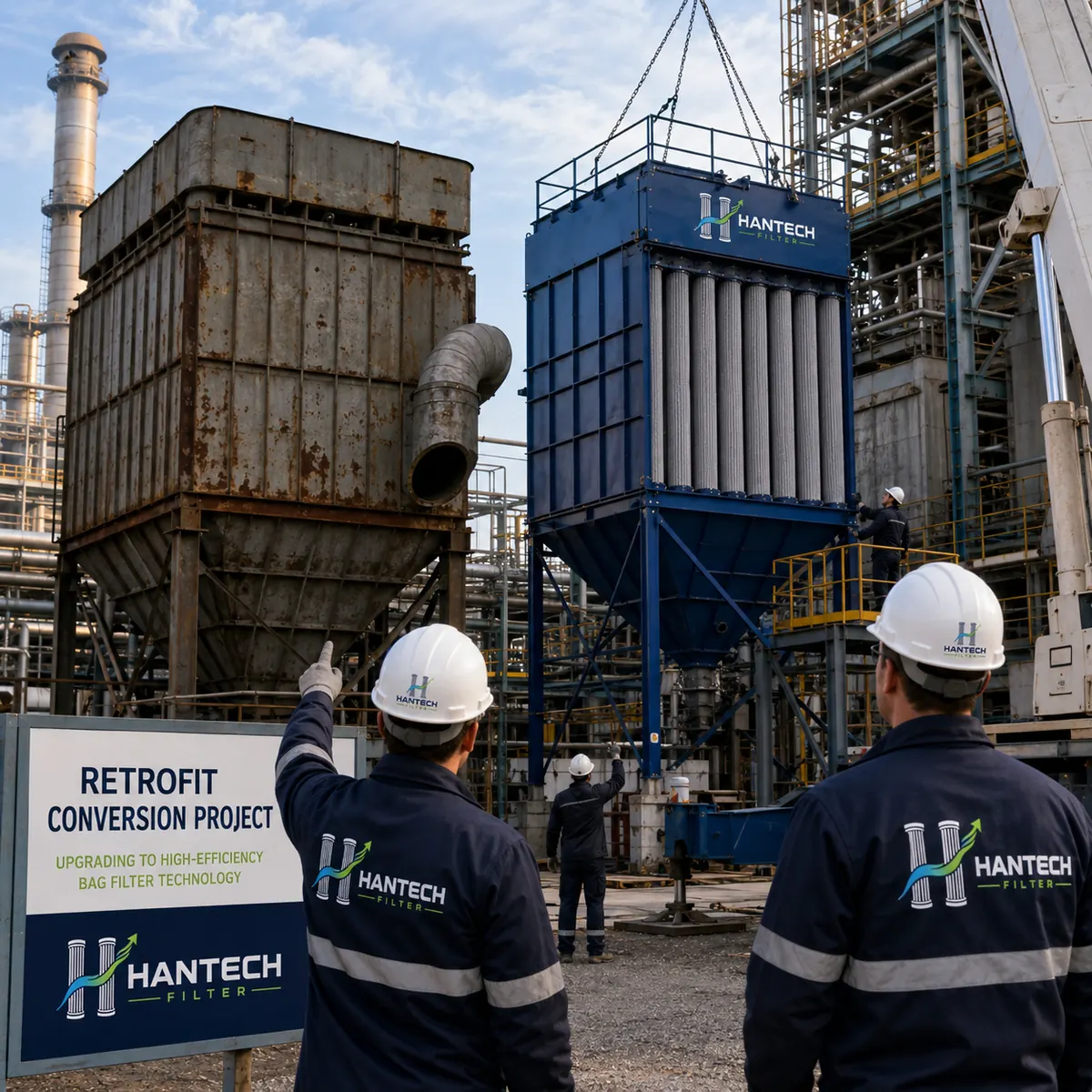

Hantech Filter Baghouse filter retrofit site survey — **Baghouse retrofit site survey**Baghouse retrofit site survey; evaluates capacity, flow, and maintenance access together.

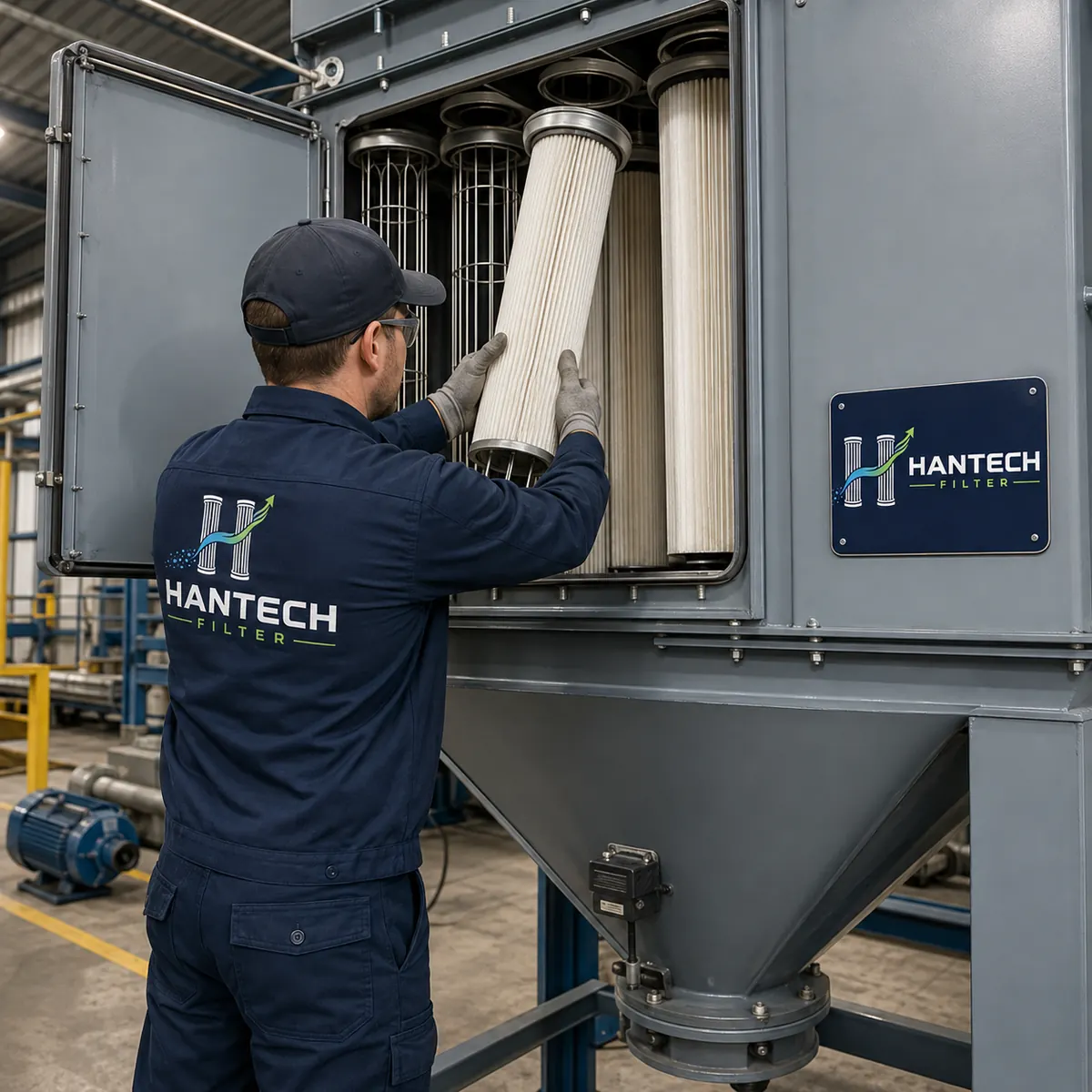

Hantech Filter Filter bag field replacement — **On-site filter bag replacement**On-site filter bag replacement; bag/cage fit and sealing are checked.

Hantech Filter Baghouse reinforcement — **Baghouse upgrade**Baghouse upgrade, clarifying the modernization decision through measurement and technical findings.

4 optimized images have been linked to this product group; images are served in WebP format for fast loading.

Technical selection

What we evaluate together during the quotation process

Flow rate, pressure drop, temperature, moisture, dust abrasiveness, emission target, maintenance access, and compatibility with existing equipment are all considered together.

Technical sizing

Correct sizing based on flow rate, pressure drop, filtration velocity, and A/C ratio.

Material & Media

Filter bag media, cage, and valve selection suited to process temperature, moisture, and dust characteristics.

Spare parts & service

Long-term spare parts supply, installation guidance, and field application support.

Renewal / reinforcement project flow

We upgrade your existing filter by measuring, reporting, and verifying it on site

We don't treat a retrofit decision as a simple parts swap. We first make current performance visible, then put capacity, media, pulse system, fan equipment, and installation scope into technical order.

Baghouse filter renewal and reinforcement field project

Measurement & report → capacity calculation → revision manufacturing → installation → commissioning follow-up

Current Filter Measurement

The filter housing, bag count/length, filter area, air handling equipment nameplate, motor power, duct line, hopper, and rotary valve outlet are recorded on site or via photographs.

Performance report

Differential pressure, bag rupture, dust leakage, emission results, fan equipment flow rate, and maintenance history are summarized in a single report with cause-and-effect relationships.

Capacity & Air-to-Cloth Ratio Calculation

For a production increase or an existing problem, the target flow rate, filtration velocity, fan pressure, and compressed air requirement are recalculated.

Filter Bag, Cage, Venturi, and Pulse Selection

Media type, filter cage surface, venturi/nozzle compatibility, pulse pipe, and valve capacity are selected together; simply replacing the filter bag is not enough.

Revision Manufacturing

If a blow pipe, distribution manifold, hopper/rotary valve, inlet-outlet ducting, fan connection, platform, or housing reinforcement is required, it is prepared on a project basis.

site assembly;

During a planned shutdown, mechanical work, bag-cage replacement, leak repair, connection revisions, and safe-access tasks are completed.

Commissioning & Follow-up

The upgrade result is verified by monitoring the pulse setting, differential pressure trend, fan operating point, emission behavior, and the first maintenance check.
