Assess condensation, cold surfaces and air leakage in a baghouse. Use a worked filter-loading example to distinguish insulation work from bag replacement.
Preparation method: manufacturer application information, process risks and engineering examples with explicit assumptions were assessed together. Numerical examples are not field measurements.

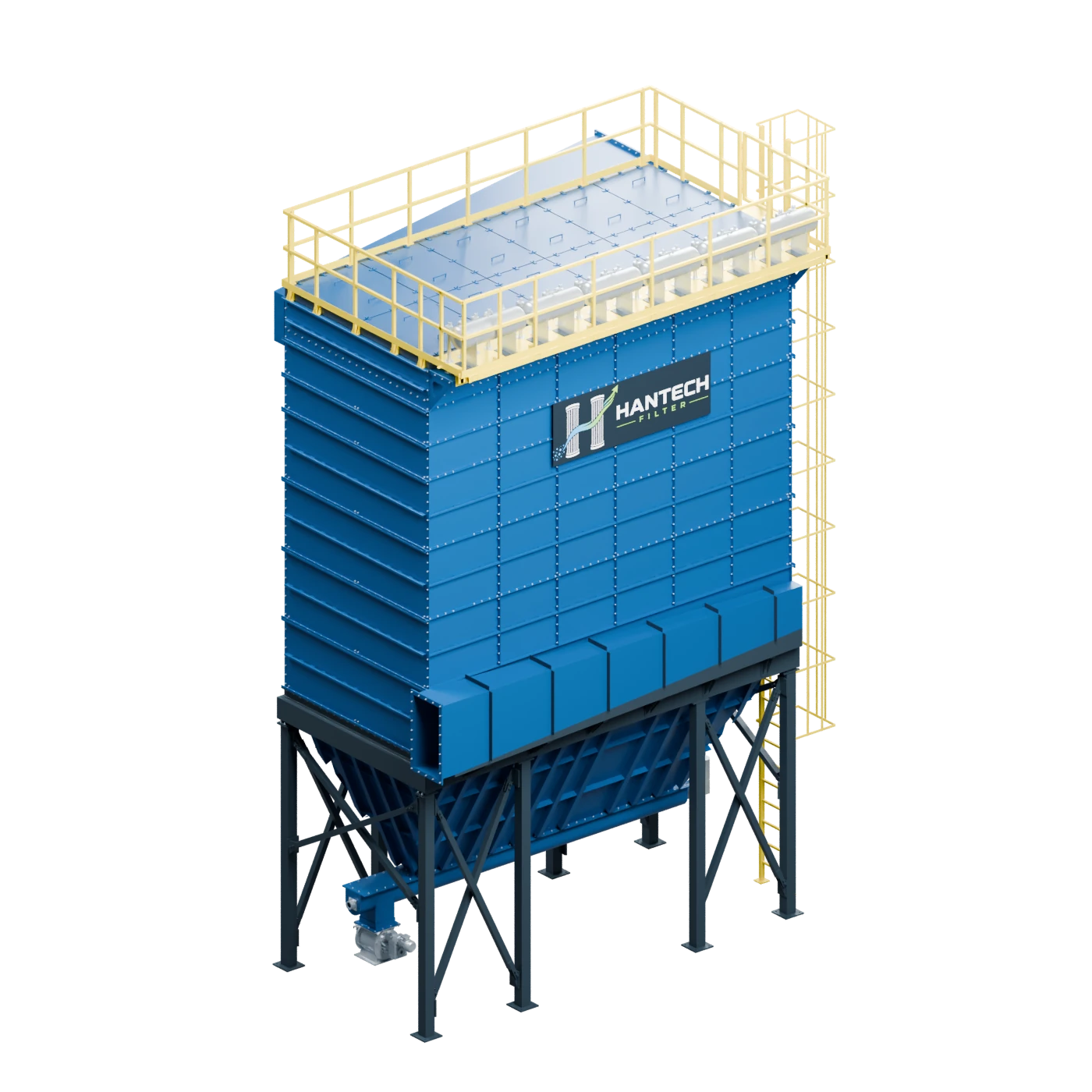

Why does hot gas not rule out condensation?
Baghouse insulation is assessed not only to reduce heat loss but also to manage condensation on cold gas-contact surfaces. A hot inlet reading does not establish the temperature of access doors, hoppers or connecting ducts. Air leakage can cause local cooling and change the actual volumetric flow through the filter. Wet cake and rising differential pressure therefore do not automatically justify more expensive bags. Start with temperature profiles, gas moisture, leakage points and actual flow.
This focused guide gives a diagnostic sequence for existing collectors handling hot process gas. Calculations and scenarios are illustrative, not customer measurements or insulation-thickness designs. Dry ambient extraction and combustion exhaust must not share an assumed dew point. Shutdown and start-up records can be more informative than one reading during steady production.
Working principle: gas, surface and dew point
Condensation assessment needs the water-vapour content of the gas and the relevant surface temperature. Acidic components can make a water-dew-point calculation alone insufficient. Insulation limits heat loss; it does not independently stop moisture or cold air entering the system. Poor start-up sequencing and a cold housing can also cause trouble in a well-insulated collector. Interpret surface temperatures in light of the measurement method and its uncertainty.
Selection criteria and diagnostic matrix
| Observation | First Check | Insufficient action on its own |
|---|---|---|
| Local hard cake around a door | Seal, surface temperature, air ingress | Replacing every bag |
| Pressure rise at cold start-up | Gas moisture and warm-up timeline | Increasing pulse frequency |
| Moist hopper corners | Thermal bridges, insulation, discharge | Cladding only the upper housing |
| Flow rises while source capture falls | Air leakage and duct balance | Selecting a larger fan |
Worked example: how air leakage changes filter loading
Assume 240 bags with 0.160 m diameter and 6 m active length. Area = 240 × π × 0.160 × 6 = 723.82 m². At 30,000 actual m³/h, expressed at filter conditions, air-to-cloth ratio = 30,000 / (60 × 723.82) = 0.691 m/min. An additional 6,000 m³/h of leakage, converted to the same temperature and pressure basis, gives 36,000 m³/h and 0.829 m/min. Volumetric loading has increased by 20% without a change in area.
This example does not calculate condensation temperature or a new fan operating point. Flows at different temperatures cannot simply be added; mixture temperature and density require separate assessment. Fan and system curves determine what happens when leaks are sealed. A 20% loading increase therefore does not imply a 20% energy increase. Hantech first puts flow measurements on a common basis, then compares active area and source capture.
Process applications and when not to invest
For boilers, mineral drying and hot-process extraction, assess housing, ducts and hopper together. At a cement plant, record gas conditions separately with the mill online and offline. Insulation thickness cannot be selected from the industry name alone: ambient conditions, wind, geometry, temperature and temperature-dependent conductivity are required. Wet or compressed insulation may behave differently from an intact specimen.
We would not choose insulation alone while liquid carryover continues, door seals leak or the hopper fails to discharge. Resolve the cause first. Insulation also cannot replace chemically compatible media. Uncontrolled supplementary heating is not a remedy: bag and equipment temperature limits and the site's safety assessment remain binding.
Field diagnosis: how to verify corrective action
In an illustrative case, high morning differential pressure normalises in the afternoon while hard cake develops near a door. Following safe shutdown and energy isolation, check impulse lines and seals, and align temperature records with production load. Compare flow, differential pressure and outlet dust at equivalent load. A pressure reduction alone is not success: a bag leak can also reduce pressure drop. Opening doors on operating equipment is not an acceptable leakage test.
Information needed for a quotation
Provide housing and duct dimensions, insulation construction and damage photographs, gas moisture/analysis, continuous and excursion temperatures, start-up records, actual flow, bag size/count and pressure trends. Include outlet measurements and discharge arrangements. These data allow bags, sealing and insulation to be compared as separate scopes, with missing measurements explicitly identified as quotation assumptions.
- Baghouse retrofit options
- Process-compatible filter bags
- Request an assessment of your existing collector
Frequently Asked Questions
Does insulation solve every high-pressure-drop problem?
No. Check the instrument, flow, cleaning, discharge and media compatibility separately.
Can bags become wet even when the gas is hot?
Yes. Investigate local cold surfaces, start-up transitions and liquid carryover.
How thick should the insulation be?
There is no universal thickness; heat loss, surface temperatures and operating conditions must be evaluated.
Is falling differential pressure always good?
Only when interpreted alongside flow and outlet dust. A leaking bag can also produce low differential pressure.
