Industrial fan balancing must be assessed together with the ISO 21940-11 balance quality grade, ISO 10816/20816 vibration bands, the root causes of imbalance, and field diagnosis.
What Is Industrial Fan Balancing?
Fan balancing is the process of making the mass distribution on a rotating impeller symmetrical about the center axis. An unbalanced impeller puts extra radial load on the bearing, coupled components, and fan housing on every revolution; over time this load degrades bearing life, seal integrity, and structural connections.
This article covers the fan's mechanical balance; a fan's flow/static pressure sizing is a separate topic covered in the fan flow rate and static pressure calculation guide. In Hantech Filter's assessment, high vibration is often not just impeller imbalance on its own; it is usually a vibration picture produced together by cake buildup, coupling misalignment, bearing wear, or a loose mount.
Balance Quality Grades: What Does ISO 21940-11 Show?
| Grade | Typical application | Grade |
|---|---|---|
| G16 | Heavy, slow-speed machine groups with low sensitivity | Rarely targeted for general industrial fans |
| G6.3 | General industrial process fan (typical reference) | May be the OEM's typical default target for most dust collection/process fans |
| G2.5 | Precision/high-speed fan, low vibration/noise target | May be preferred for critical processes or high-RPM applications |
These grades are not a fixed legal requirement; they are the reference quality bands defined by ISO 21940-11. Which grade to target depends on the fan type, speed, OEM design, and the application's tolerance for vibration/noise. If a balance report is requested, the target grade should be clarified at the quote stage.
Vibration Severity Bands: the ISO 10816/20816 Approach
| Band | General meaning | Typical action |
|---|---|---|
| Zone A | Typical of new/good-condition machinery | Monitoring is sufficient |
| Zone B | Typical band generally acceptable for unrestricted long-term operation | Routine monitoring, trend tracking |
| Zone C | Typical band tolerable only for a limited time | Planned intervention; root-cause investigation recommended |
| Zone D | Typical band that generally carries damage risk | Urgent intervention; operating conditions should be reviewed |
These bands are typical reference ranges that vary with the machine class, power/weight group, and mounting type (rigid or flexible base); no fixed universal mm/s RMS threshold is given here. The real threshold must be confirmed against the OEM fan datasheet, the ISO 10816/20816 machine-class table, and the site's vibration trend history.
Root Causes of Imbalance: Diagnostic Matrix
| Symptom / vibration signature | Possible root cause | Hantech comment |
|---|---|---|
| Dominant 1x RPM, high in the radial direction | Genuine mass imbalance (cake buildup, wear, damage) | The impeller surface and cake buildup are checked; cleaning plus field balancing follow if needed |
| 1x RPM plus noticeable harmonics, irregular amplitude | Blade wear/erosion, local damage | Each impeller blade is checked visually/by measurement |
| 2x RPM dominant, high axial component | Coupling misalignment | Coupling alignment is checked with a laser or dial indicator before balancing |
| Mixed radial + axial, variable at low frequency | Bent/warped shaft | Shaft straightness is measured; balancing does not fix a bent shaft |
| Vibration rises suddenly, out of proportion to load/speed | Bearing wear or a loose mount/base | Bearing condition and base/bolt tightness are checked first |
This distinction is the step most often skipped in practice. The same complaint of high vibration can come from imbalance, misalignment, a bearing, or a loose mount, and each gives a different frequency signature. Jumping straight to "vibration is high, let's balance it" risks fixing the wrong cause and leaving the real problem on site.

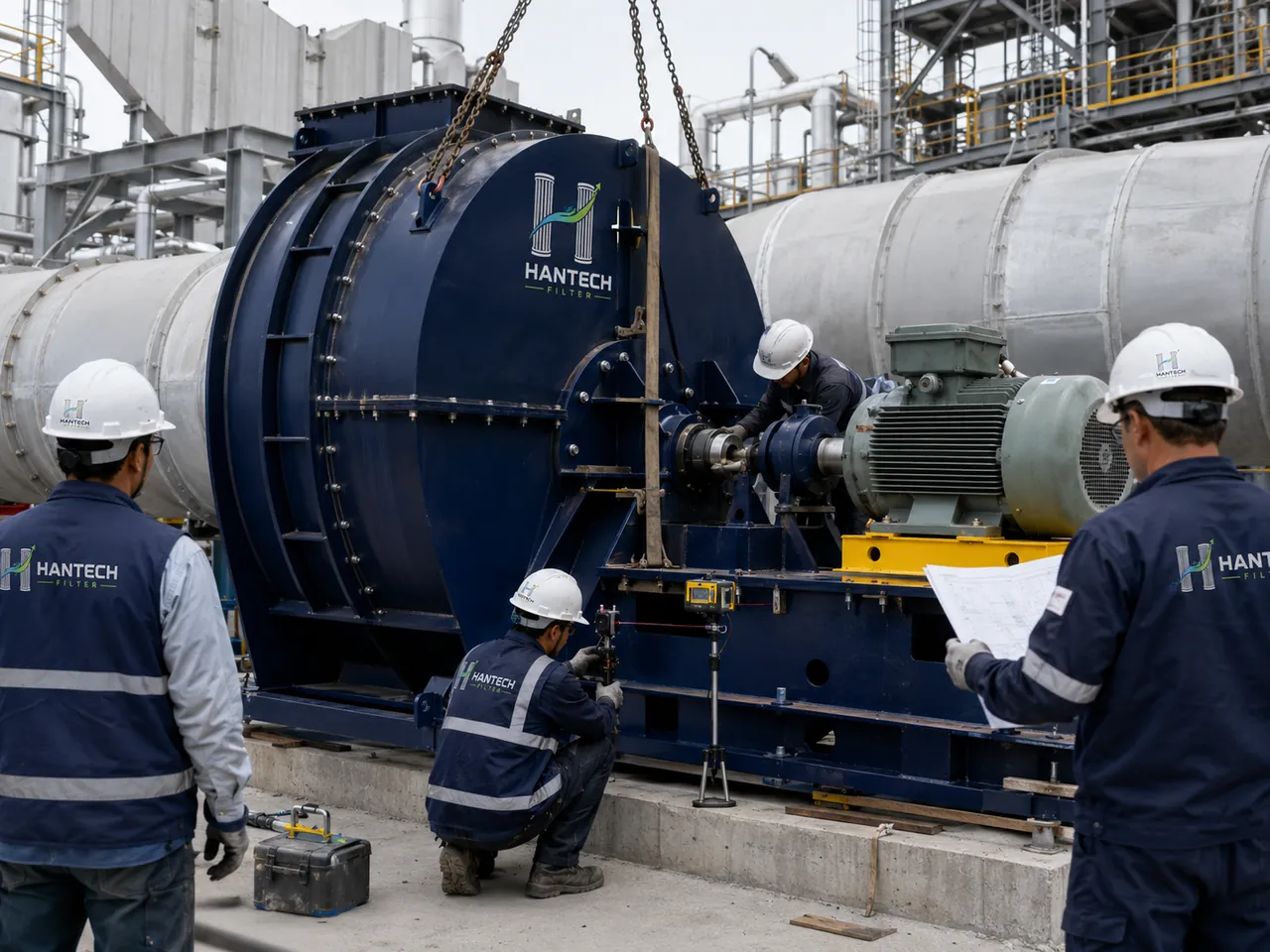

Field Balancing Method: Single-Plane or Two-Plane?
On narrow, thin-bodied (disk-like) impellers, the mass imbalance can be treated as concentrated in a single plane, and single-plane field balancing is usually enough. On wider, overhung (cantilevered on the shaft end), or double-inlet impellers, the imbalance can differ in magnitude between two separate planes; in that case two-plane balancing is required, otherwise a correction made in one plane can create a new moment imbalance in the other.
Field (in-situ) trim balancing is a fine adjustment made on the existing bearing and coupling without removing the impeller; if there is major damage, heavy wear, or permanent deformation, a full balance and repair in a workshop/at the OEM after removal should be considered instead of field balancing.
When Is Rebalancing Needed?
The need for rebalancing typically shows up in these situations: after the impeller surface is cleaned of cake/dust buildup (the mass distribution changes), after a blade replacement or a welded repair (the new part may not exactly match the original mass distribution), when a long-idle fan is restarted with one-sided dust buildup, and when the vibration trend rises past a reference band (for example from Zone B into Zone C).
In This Case, Balancing Alone Is Not the Fix
Worked Example: Reading a Vibration Trend
Field reading
- Fan
- Process baghouse ID fan, single-inlet centrifugal wheel
- First reading (after cleaning)
- 2.3 mm/s RMS, dominant 1x RPM radial
- Measurement 3 months later
- 6.8 mm/s RMS, still dominant 1x RPM radial
- Trend pattern
- Gradual, steady increase (no sudden jump)
- First Comment
- The frequency signature and gradual-rise pattern suggest a mass imbalance from cake buildup
In this example, the 2.3 mm/s level sits close to the low/acceptable end of the typical reference band, while 6.8 mm/s can fall into the band that calls for planned intervention on most general industrial fans; the exact threshold must be confirmed against the OEM and machine class. Because the frequency signature rose gradually rather than jumping suddenly, the first action is not balancing directly but inspecting the impeller surface for cake/dust; if vibration does not drop after cleaning, balancing and coupling/bearing checks are considered in sequence.
Information Needed for a Quote/Service Request
For a fan balancing/vibration assessment, share the fan nameplate data (RPM, kW, impeller type), the current vibration readings (mm/s RMS and where they were taken), the date of the last cleaning/recoating or blade repair, the coupling type, bearing type, mount information (rigid/flexible base), and running hours. For the relevant products and services, see baghouse filter renewal and retrofit, performance measurement, and ventilation equipment; for aerodynamic sizing, the fan flow rate and static pressure guide helps. Technical requests can be submitted via the quote form.
Frequently Asked Questions
If fan vibration is high, should balancing be the first action?
No. The frequency signature (1x/2x RPM, radial/axial) should be read first; loose mounting, coupling misalignment, or bearing wear must be ruled out before balancing.
Is G6.3 sufficient for every fan?
It can be used as a typical reference for general process fans; high-speed or precision applications may need a tighter grade such as G2.5. The exact target is set by the OEM and the application.
Is rebalancing mandatory after recoating?
It is generally recommended; a new coating or repair can change the mass distribution. The need is confirmed by the coating thickness, the amount of welding, and a vibration measurement.
