Silo equipment selection must be made by assessing the level measurement method, hopper flow geometry, discharge aids, pressure relief, and the weighing system together.
What Is Silo Equipment? Which Subsystems Does It Cover?
Silo equipment is the full set of subsystems that keep bulk material safely stored in a silo, its level monitored, and its discharge managed in a controlled way. This scope covers level measurement devices, discharge aids (aeration pads, bin activators, vibrating bottoms), hopper flow geometry, pressure relief/ATEX hardware, and, where needed, a weighing (load cell) system.
This article does not cover failures and maintenance of the baghouse filter sitting on top of a silo; that is a separate resource, the silo-top filter failures guide. In silo equipment selection, Hantech Filter assesses the material's flow behavior, moisture/cohesion risk, and existing failure history before looking at individual components.
How Is the Level Measurement Method Chosen?
| Method | Measurement type | Strength | Limitation |
|---|---|---|---|
| Rotary paddle switch | Point level (min/max) | Simple, economical, tolerant of dusty environments | Does not give a continuous level; mechanical wear and motor-failure risk |
| Capacitive level sensor | Point or continuous | No moving parts, low maintenance | Dust coating/moisture can shift the dielectric reading; calibration is required |
| Radar / guided-wave radar | Continuous level | Reliable operation in dusty, vapor-laden environments | Investment cost is higher; antenna placement and material buildup must be checked |
| Ultrasonic level sensor | Continuous level | Non-contact measurement | Carries a false-echo risk in heavily dusty environments; generally a secondary choice for silos |
For silos carrying dusty, fine, sticky material, choosing the ultrasonic method as the sole primary measurement is rarely preferred in Hantech's assessment because of the false-echo risk; a radar unit, or a radar plus point-switch combination, can give a more stable result. The final choice must be confirmed by the material's dielectric properties, dust density, and field experience.
Hopper Geometry: Mass Flow or Funnel Flow?
The wall angle and surface friction of the silo cone (hopper) determine whether the material shows mass flow (the whole mass moves together, first in first out) or funnel flow (a flow channel forms in the center, leaving stagnant zones at the sides) behavior. In funnel-flow geometry, the material in the stagnant zone can pack over time, carrying a risk of bridging or ratholing; because the first material in is the last out, the risk of moisture pickup, agglomeration, or exceeding shelf life also rises.
Mass-flow geometry generally needs a steeper wall angle and a lower wall friction coefficient, which can increase the silo height and the investment cost. The relationship between the wall angle and the material friction angle (Jenike-type flow analysis) is a well-known process engineering method; however, an exact wall angle cannot be given here as a single fixed number -- it requires a material-specific friction test and design sign-off.
In practice Hantech follows this order: if an existing silo shows funnel-flow behavior and the material is cohesive, it first assesses whether a discharge aid (aeration or a bin activator) can improve the behavior; changing the cone geometry costs more, so it is generally treated as a last resort.
Discharge Aid Selection Matrix
| Method | SUITABLE MATERIAL: | Operating principle | What to watch for |
|---|---|---|---|
| Aeration pad | Dry, fine, low-to-moderately cohesive dust | Fluidizes the material by feeding low-pressure air through the cone surface | Can channel in moist/sticky dust and become ineffective |
| Bin activator / vibrating bottom | Cohesive, moist, or agglomerating material | Breaks up bridging by moving the conical base with low-amplitude vibration | Structural fatigue and vibration transfer into the silo shell should be checked |
| External vibrator / knocker | Moderately cohesive, needs intermittent assistance | Triggers local flow by impacting/vibrating the silo shell | Wrong placement only loosens material locally and may not be a lasting fix |
| Air cannon | Coarse, sticky, or agglomerating material, occasional blockage | Disperses buildup with a sudden blast of compressed air | Overuse can lead to structural fatigue and unnecessary air consumption |
These methods are often used in combination rather than alone. An aeration pad may be sufficient in a dry zone, while a bin activator or air cannon can provide extra assurance in the part of the silo that picks up moisture or sits idle after loading.
Pressure Relief, ATEX, and the Load Cell (Weighing) Decision
For silos carrying combustible dust, the need for an explosion relief panel or an isolation/suppression system is based on the dust's explosion characteristic data, such as Kst and Pmax. These values are material-specific and are determined by laboratory testing; no relief area or panel size is given here as a general figure -- a relief system should never be sized without ATEX/process safety engineering sign-off.
A load cell/weighing system is preferred for processes that need continuous inventory tracking, dosed feeding, or recipe control. If simple full/empty information is enough, a point level switch is a more economical solution; a load cell investment is only justified when there is a genuine weighing/dosing need.
Common Field Silo Failures and Diagnosis
| Site indication | Possible root cause | Check order |
|---|---|---|
| The silo reads "full" but discharge is dropping | Level sensor dust coating or bridging | The sensor surface is cleaned, then the hopper interior is checked physically |
| Discharge stops suddenly, then resumes | Ratholing (rathole formation) or periodic bridging | Aeration/bin activator run frequency and the material's moisture history are reviewed |
| The aeration pad is running but flow does not improve | The material has turned cohesive, or the pad has channeled | Material moisture/agglomeration and pad placement are reviewed |
| Weighing data is inconsistent | Load cell calibration drift, or mechanical contact (rubbing against the silo wall) | Calibration and mechanical isolation (mounting brackets) are checked |
When I Would Not Choose This Equipment
Worked Example: Preliminary Aeration Air Demand Estimate
Sample account and comment
- Silo base diameter
- 3.0 m
- Cone base area
- π × (1.5)² ≈ 7.07 m²
- Material
- Dry, low-to-moderately cohesive dust (example assumption)
- Typical aeration flow (field/vendor reference range)
- 0.3-0.6 Nm³/min / m² of base area
- Preliminary estimated flow (using the mid-value 0.45)
- 7.07 × 0.45 ≈ 3.2 Nm³/min
This range is not a fixed engineering law; it is a typical field/vendor reference band for dry, low-cohesion dust. The final pad count, layout, and flow rate must be confirmed by the pad supplier's technical sign-off and a material flow test. If the material picks up moisture or turns cohesive, this estimate no longer holds and a bin activator or a combined solution should be considered.
Information Required for a Quote

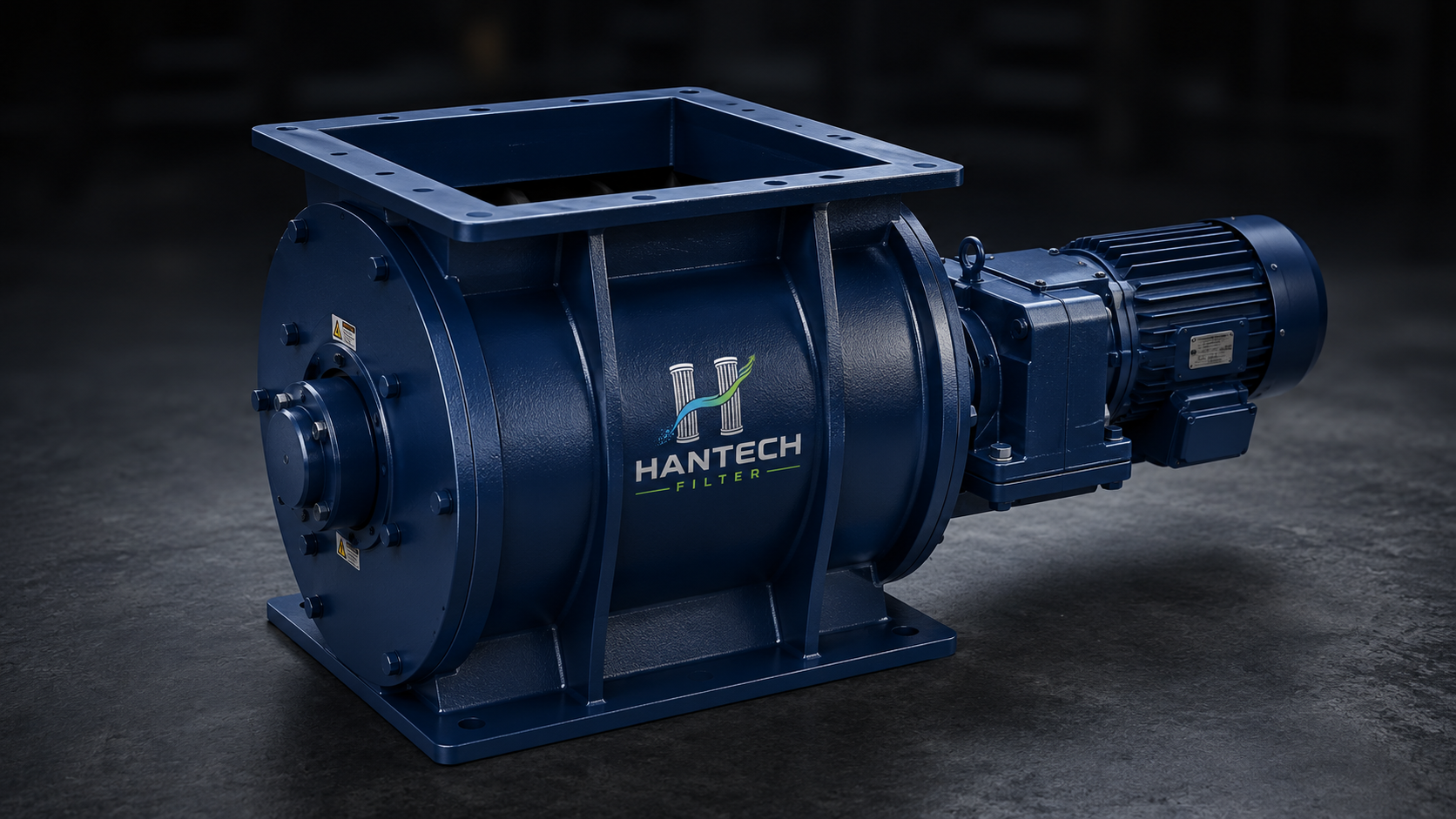

For a silo equipment quote, share the material name, bulk density, moisture content, particle size, cohesive/agglomeration behavior, the silo base diameter and cone angle, the current level measurement type and failure history, the ATEX classification (if any), and the target weighing/dosing accuracy. For the relevant product family, see rotary airlock, screw conveyor, and klapes; for the dust collection side, the dust collection system selection guide can help. Technical requests can be submitted via the quote form.
Frequently Asked Questions
Can an aeration pad be used in every silo?
No. It is effective for dry, low-cohesion dust; on moist or sticky material it can channel and fail to improve flow, so a bin activator or a combination may be needed.
Is funnel flow always a problem?
No. Funnel flow can be acceptable for free-flowing, non-cohesive material; the problem usually shows up with material that picks up moisture, agglomerates, or sits for a long time.
Is a radar level sensor always the best choice?
It is generally reliable in dusty/vapor-laden environments, but the investment cost is higher; if a simple point measurement is enough, a rotary paddle or capacitive switch can be more economical.
